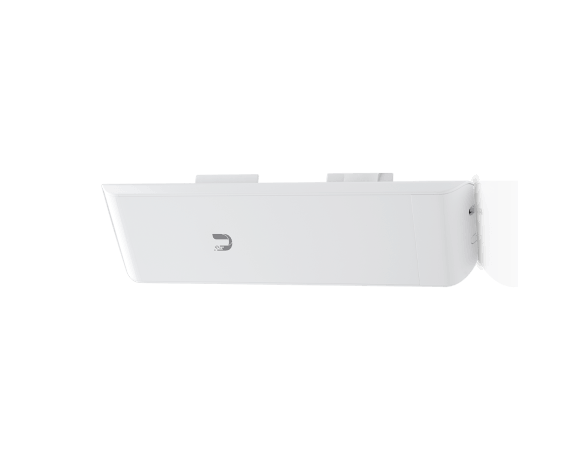

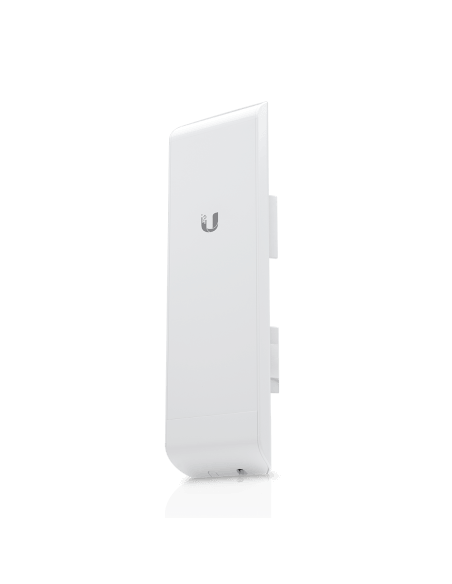

Ubiquiti UISP airMAX NanoStation M5 5GHz 16dBi Radio | NSM5

The Ubiquiti UISP airMAX NanoStation M5 (NSM5) is a compact, high-performance wireless device designed for both indoor and outdoor applications. It serves as an efficient solution for point-to-point (PtP) and point-to-multipoint (PtMP) connectivity, making it ideal for extending wireless networks and providing internet service provider (ISP) connectivity. Its integrated design simplifies installation and enhances signal performance, while the included pole-mount kit facilitates easy deployment.

Features

• Operates in the 5 GHz frequency band, supporting worldwide frequencies from 5170 to 5875 MHz.
• Integrated 16 dBi dual-linear polarization antenna for robust signal strength.
• Two 10/100 Mbps Ethernet ports for flexible networking options.
• Passive Power over Ethernet (PoE) support with a 24V, 0.5A PoE adapter included.
• Compact and lightweight design with dimensions of 294 x 31 x 80 mm and a weight of 400 g.
• Durable outdoor UV-stabilized plastic enclosure suitable for various environmental conditions.
• Operating temperature range from -30°C to 75°C and humidity tolerance from 5% to 95% non-condensing.
• Compliance with FCC, IC, CE, and RoHS certifications.

Specifications

• Antenna Gain: 16 dBi
• Beam-width: 41°
• Data Rate: 300 Mbps
• Ethernet Ports: 2x 10/100
• Hardware Button: Reset
• Max. Power Consumption: 8W
• Mounting: Pole-Mount
• Operating System: airOS
• Operating Temperature: -30°C to 75°C
• PoE Input: 24V Passive PoE
• PoE Output: 24V Passive PoE Pass-through
• Dimensions: 294 x 31 x 80 mm
• Weight: 400 g
• Supported Voltage Range: 22–27V DC
