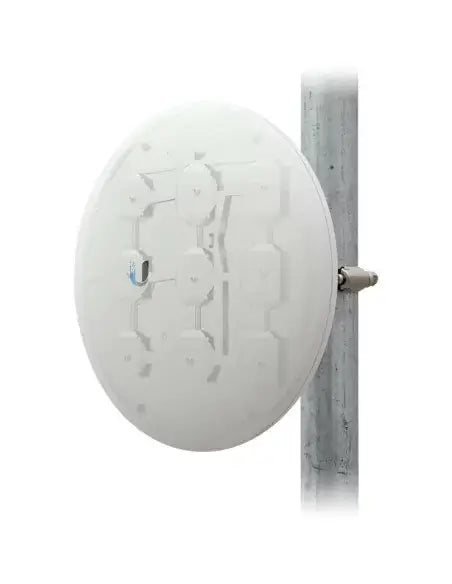

  • Ubiquiti UISP airMAX NanoBeam AC 5GHz 19dBi Radio with POE Injector in medium view.
  • Side view of Ubiquiti UISP airMAX NanoBeam AC 5GHz 19dBi Radio with POE Injector.

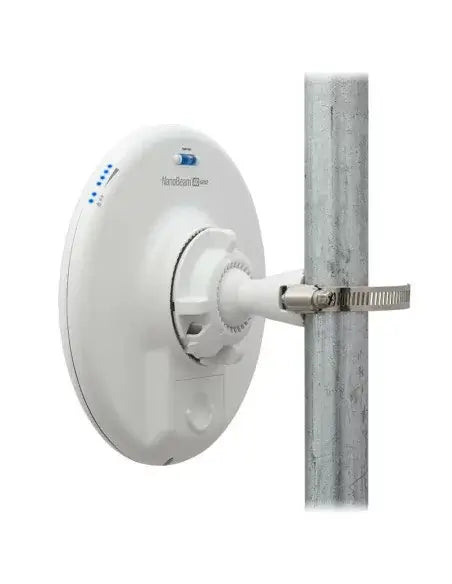

  • Back view of Ubiquiti UISP airMAX NanoBeam AC 5GHz 19dBi Radio with POE Injector.

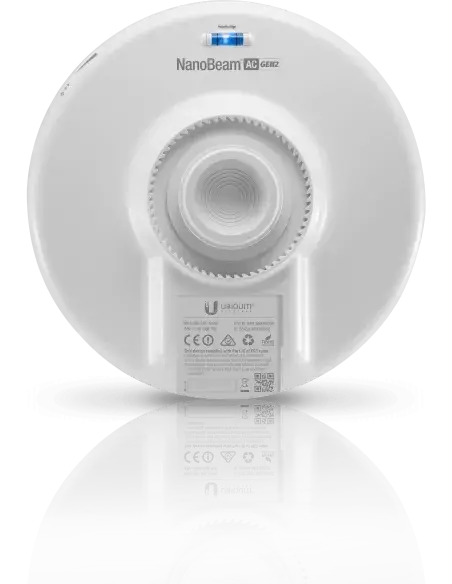

  • Detailed view of Ubiquiti UISP airMAX NanoBeam AC 5GHz 19dBi Radio with POE Injector.
1 6

Ubiquiti

Ubiquiti UISP airMAX NanoBeam AC 5GHz 19dBi Radio | NBE-5AC-Gen2

NBE-519ACG2

923 in stock

R 2,399.00
R 2,399.00
Sale Sold out
Shipping calculated at checkout.

The Ubiquiti UISP airMAX NanoBeam AC 5GHz 19dBi Radio (NBE-5AC-Gen2) is a compact and high-performance wireless bridge designed for Point-to-Point (PtP) and Point-to-Multipoint (PtMP) applications. Its integrated radio and antenna design ensures maximum gain with a minimal footprint, making it ideal for deployments requiring efficient use of space. The device operates in the 5 GHz frequency range, delivering real-world throughput exceeding 450 Mbps over distances up to 10 kilometers. Enhanced with a dedicated Wi-Fi management radio, the NanoBeam AC Gen2 allows for quick and easy setup via mobile devices. Its narrow beamwidth improves noise immunity, making it suitable for environments with high RF interference.

Features

  • Integrated radio and antenna for a compact design
  • Operates in the 5 GHz frequency range
  • Real-world throughput exceeding 450 Mbps
  • Dedicated Wi-Fi management radio for easy setup
  • Narrow beamwidth for improved noise immunity
  • Supports channel bandwidths up to 80 MHz
  • Enhanced surge protection against ESD events
  • Compatible with UISP mobile app for management
  • UV-stabilized plastic enclosure for durability
  • Operating temperature range: -40 to 80°C
  • Supports passive PoE power method

Specifications

  • Processor: Atheros MIPS 74Kc, 720 MHz
  • Memory: 128 MB DDR2, 8 MB Flash
  • Networking Interface: (2) Gigabit Ethernet RJ45 ports
  • Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
  • Power Supply: 24V, 0.5A Gigabit PoE adapter (included)
  • Supported Voltage Range: 20–27V DC
  • Max. Power Consumption: 8.5W
  • ESD/EMP Protection: Air/contact: ±24 kV
  • LED Indicators: Power, Ethernet, (4) Signal Strength
  • Gain: 19 dBi
  • Channel Sizes: PtP Mode: 10/20/30/40/50/60/80 MHz; PtMP Mode: 10/20/30/40 MHz
  • Max. VSWR: 1.5:1
  • Polarization: Dual linear
  • Operating Frequency (MHz): Worldwide: 5150–5875 MHz; USA: U-NII-1: 5150–5250 MHz, U-NII-2A: 5250–5350 MHz, U-NII-2C: 5240–5725 MHz, U-NII-3: 5725–5850 MHz
  • Certifications: CE, FCC, IC
  • NDAA Compliant: Yes
