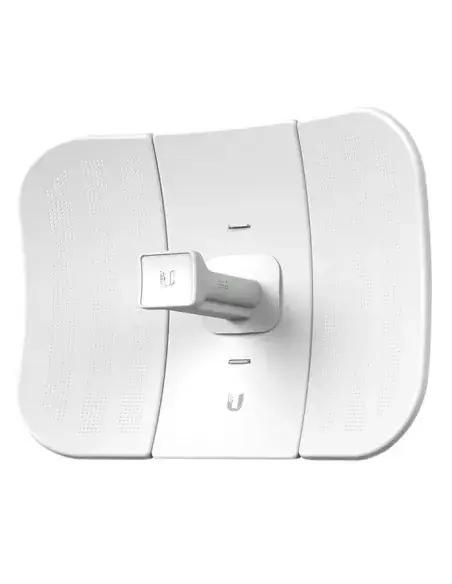

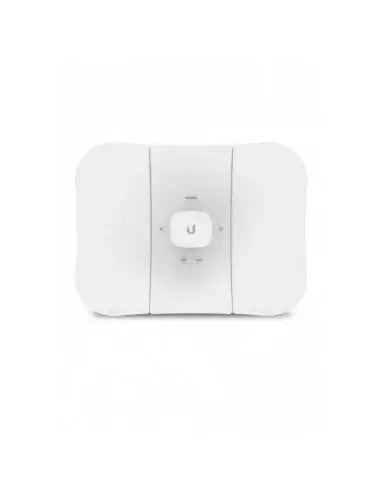

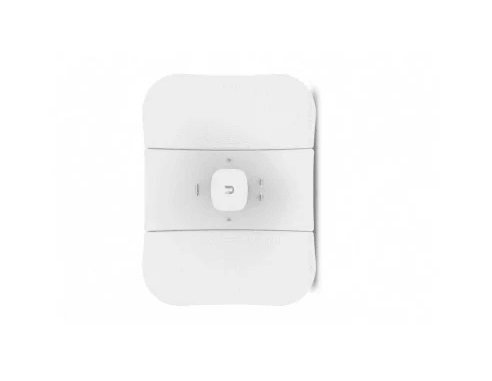

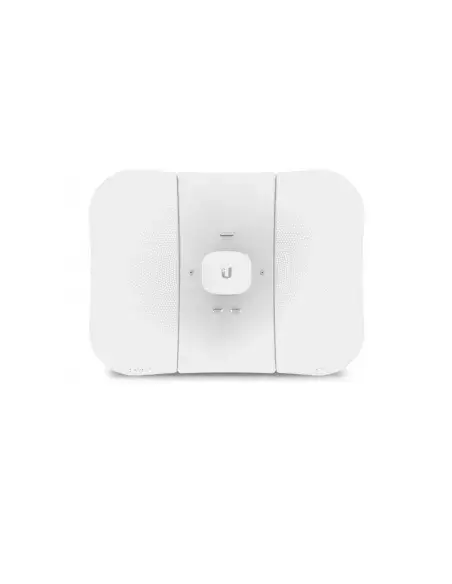

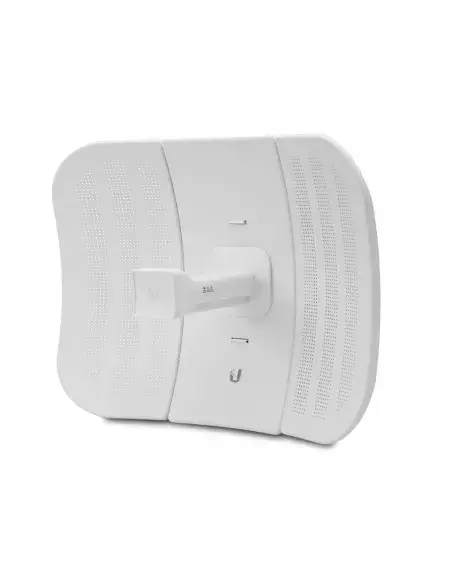

Ubiquiti UISP airMAX LiteBeam M5 5GHz 23dBi Radio | LBE-M5-23

The Ubiquiti UISP airMAX LiteBeam M5 (LBE-M5-23) is a lightweight and compact outdoor wireless broadband Customer Premises Equipment (CPE) designed for cost-effective, high-performance long-distance wireless bridging. Operating in the 5 GHz frequency range, it delivers real outdoor throughput of up to 100+ Mbps and can achieve ranges exceeding 30 kilometers. Its directional antenna pattern enhances noise immunity, making it ideal for point-to-point (PtP) and point-to-multipoint (PtMP) applications in rural or underserved areas. The device features Ubiquiti's InnerFeed technology, integrating the entire radio system into the feedhorn of the antenna, and utilizes the airMAX TDMA protocol to improve network performance and scalability.

Features

• High-gain, directional antenna with 23 dBi gain for long-distance connectivity.
• Compact and lightweight design for easy installation and reduced shipping costs.
• Three-axis alignment for flexible mounting and quick deployment.
• Integrated radio design with InnerFeed technology for improved performance.
• Operates in the license-free 5 GHz frequency range, suitable for global deployment.
• Utilizes airMAX TDMA protocol for enhanced network performance and scalability.
• Includes pole mounting kit for straightforward installation.
• Robust construction with UV-stabilized plastic enclosure for outdoor durability.
• ESD/EMP protection up to ±24 kV for increased reliability.
• Complies with FCC, IC, and CE certifications.

Specifications

• Processor: Atheros MIPS 74Kc, 533 MHz
• Memory: 64 MB
• Networking Interface: (1) 10/100 Ethernet Port
• Operating Frequency: Worldwide: 5150 - 5875 MHz, USA: 5725 - 5850 MHz
• Output Power: 25 dBm
• Antenna Gain: 23 dBi
• Max. VSWR: 1.5:1
• Max. Power Consumption: 4W
• Power Supply: 24V, 0.2A PoE Adapter (Included)
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Operating Temperature: -40 to 70° C (-40 to 158° F)
• Operating Humidity: 5 to 95% Noncondensing
• ESD/EMP Protection: ±24 kV Contact / Air
• Shock and Vibration: ETSI300-019-1.4
• ETSI Specification: EN 302 326 DN2
• Certifications: FCC, IC, CE
• RoHS Compliance: Yes
