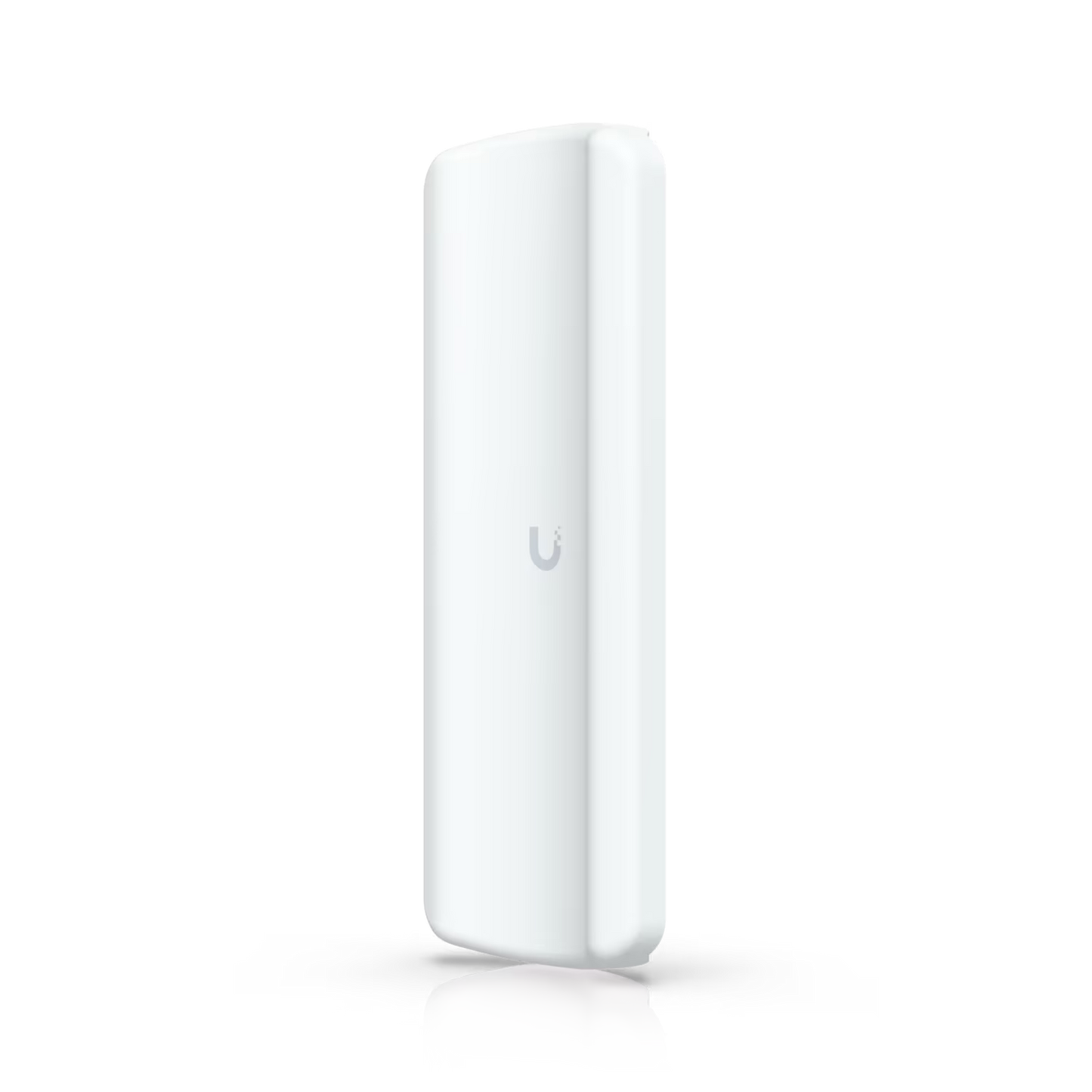

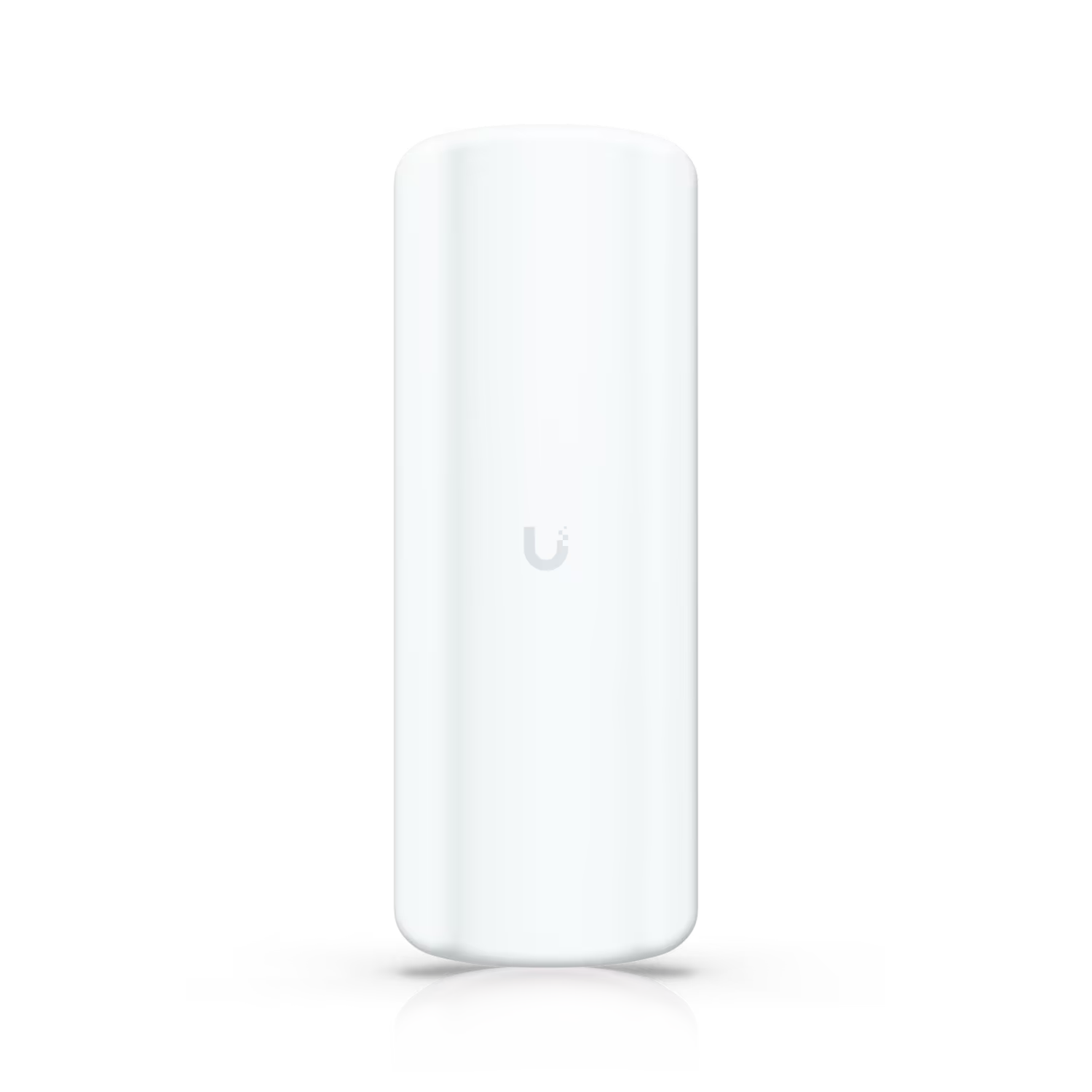

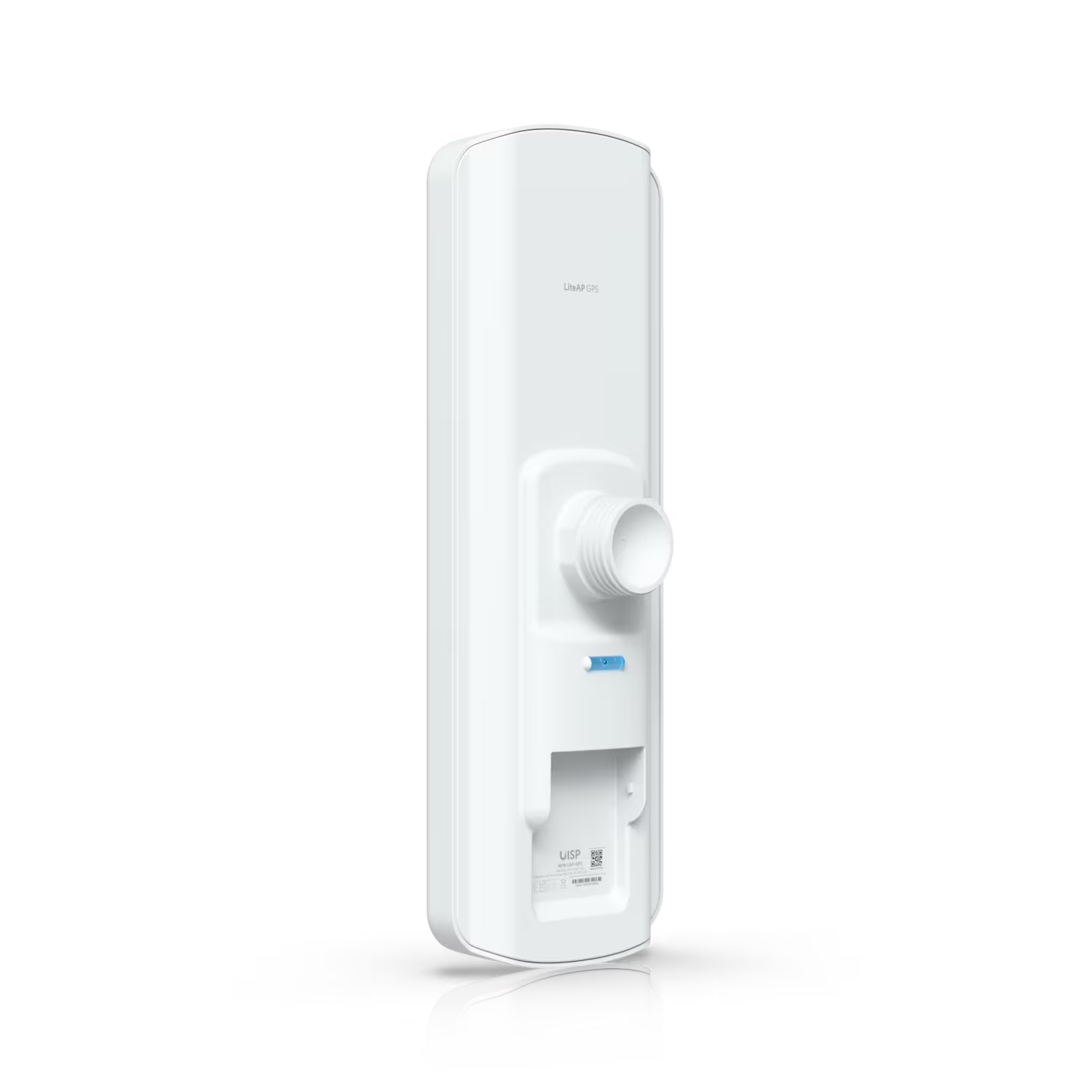

Ubiquiti UISP airMAX LiteAP AC 5GHz 17dBi 90° Radio with GPS | LAP-GPS

The Ubiquiti UISP airMAX LiteAP AC (LAP-GPS) is a high-performance, cost-effective 5 GHz sector access point designed for long-distance wireless broadband bridging. Its integrated 17 dBi antenna and GPS synchronization support enable efficient point-to-multipoint (PtMP) deployments, making it ideal for expanding network coverage in rural or underserved areas. The device's lightweight, sleek design allows for easy installation and integration into existing networks.

Features

• Integrated 17 dBi Antenna: Provides a 90° beamwidth for broad coverage.
• GPS Synchronization: Enhances network scalability and reduces interference in co-located deployments.
• High Throughput: Delivers up to 450+ Mbps real TCP/IP throughput.
• Lightweight Design: Simplifies installation with its ultra-lightweight form factor.
• airOS®8 Support: Offers advanced features, including real-time RF analytics and improved usability.
• Weather-Resistant: Operates reliably in temperatures ranging from -40 to 70°C (-40 to 158°F).

Specifications

• Networking Interface: (1) Gigabit Ethernet (GbE) RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.3A Gigabit PoE adapter (included)
• Supported Voltage Range: 20–27V DC
• Max. Power Consumption: 7.1W
• Max. TX Power: 25 dBm
• Antenna Gain: 17 dBi
• ESD/EMP Protection: Air/contact ± 24kV
• Shock and Vibrations: ETSI300-019-1.4
• Ambient Operating Temperature: -40 to 70°C (-40 to 158°F)
• Ambient Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC
• Operating Frequency (MHz): US/CA: 5150–5250, 5250–5350, 5470–5725, 5725–5850; Worldwide: 5150–5875
• Management Radio (MHz): US/CA: 2412–2462; Worldwide: 2412–2472
