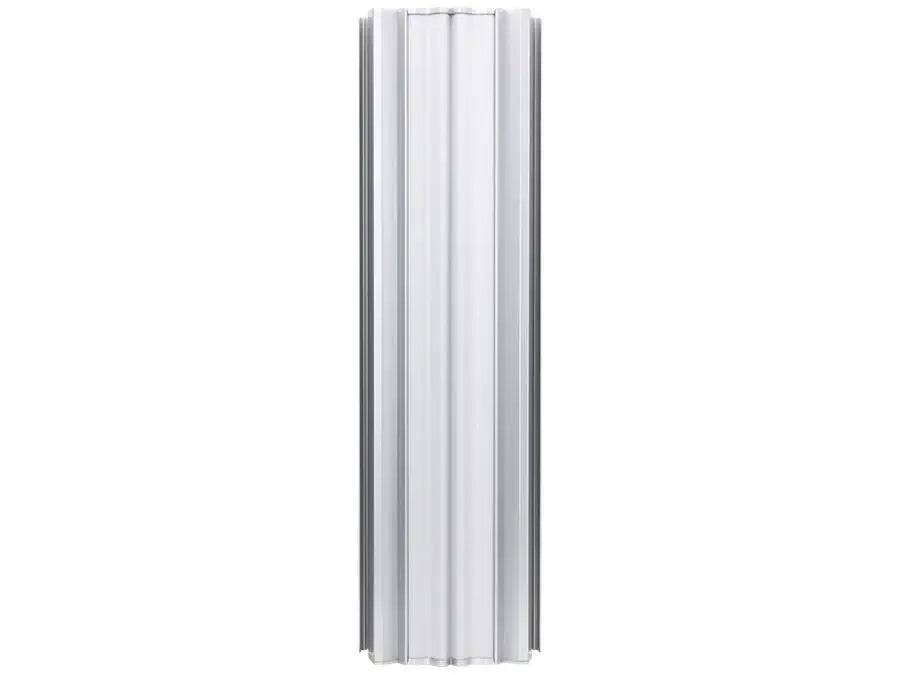

• Ubiquiti UISP airMAX AC 5GHz 22dBi 45° Sector Antenna viewed from the front.
  • Ubiquiti UISP airMAX AC 5GHz 22dBi 45° Sector Antenna displayed at an angle.

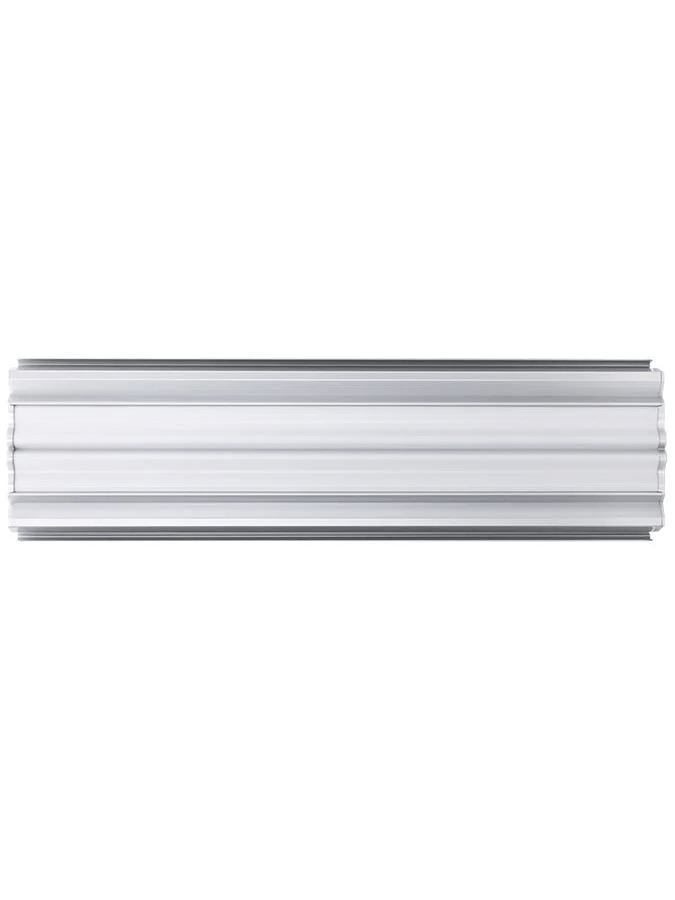

  • Ubiquiti UISP airMAX AC 5GHz 22dBi 45° Sector Antenna viewed from the side.

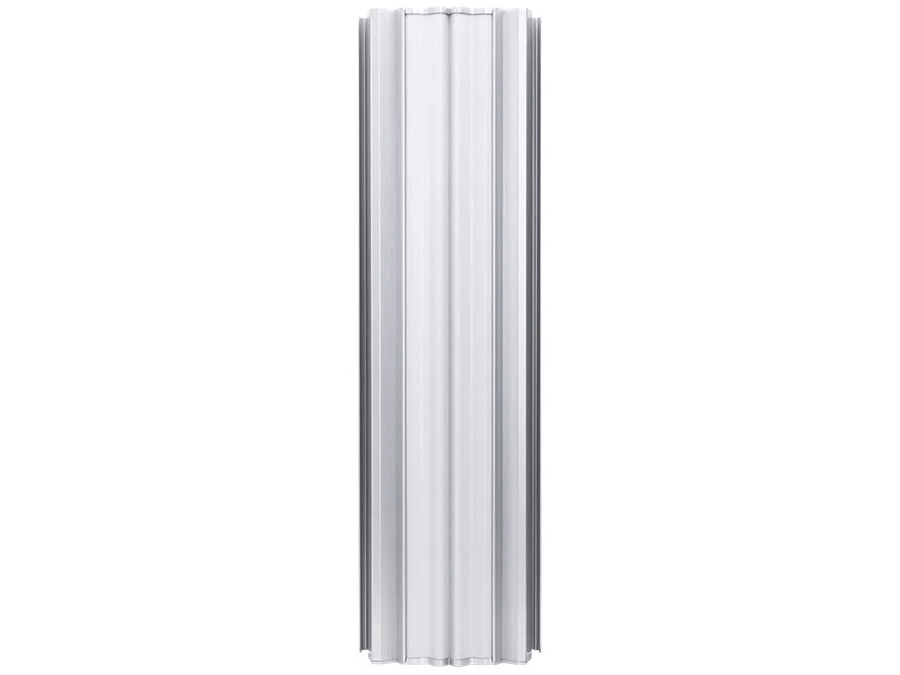

  • Ubiquiti UISP airMAX AC 5GHz 22dBi 45° Sector Antenna shown from the back.

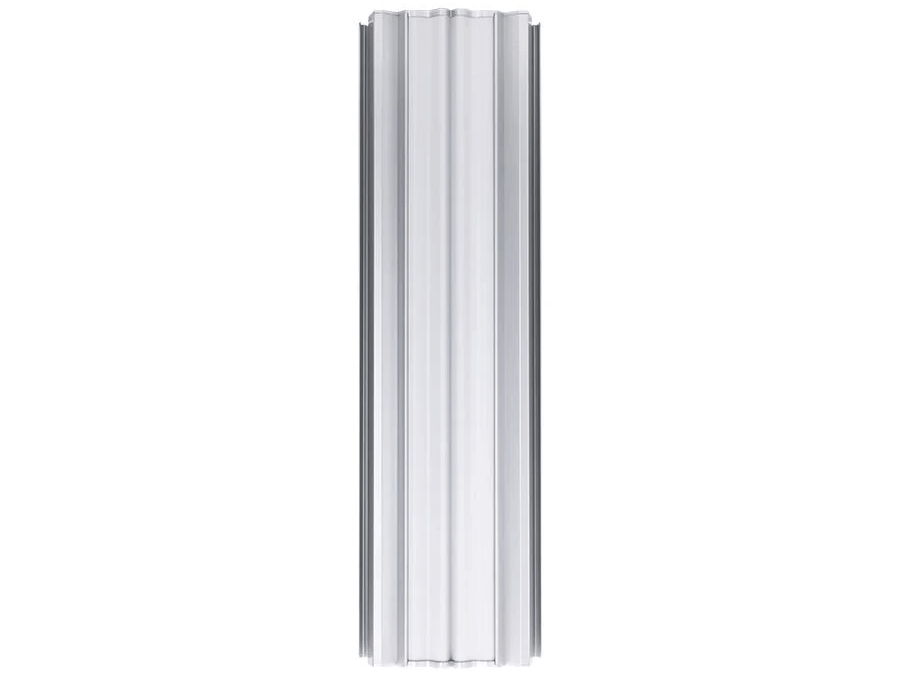

  • Ubiquiti UISP airMAX AC 5GHz 22dBi 45° Sector Antenna displayed upside down.
1 5

Ubiquiti

Ubiquiti UISP airMAX AC 5GHz 22dBi 45° Sector Antenna | AM-5AC22-45

AIR-S522AC

Out of stock

R 4,399.00
R 4,399.00
Sale Sold out
Shipping calculated at checkout.

The Ubiquiti UISP airMAX AC 5GHz 22dBi 45° Sector Antenna (model AM-5AC22-45) is engineered for Point-to-MultiPoint (PtMP) networks, delivering high-gain, dual-polarity performance. Its robust design ensures reliable outdoor operation, making it ideal for service providers aiming to expand coverage and enhance network capacity. The antenna's innovative deflector design minimizes interference, ensuring optimal signal quality even in co-location deployments. Note: Radio not included.

Features

  • 5 GHz frequency band
  • 22 dBi gain
  • 45° beamwidth
  • Dual-linear polarization
  • Advanced noise isolation
  • Compatible with Rocket 5ac radios
  • Robust mechanical design for outdoor use
  • Universal pole mount, RocketM bracket, and weatherproof RF jumpers included

Specifications

  • Frequency Range: 5.10 – 5.85 GHz
  • Antenna Gain: 22 dBi
  • HPOL Beamwidth: 45° (6 dBi)
  • VPOL Beamwidth: 45° (6 dBi)
  • Electrical Beamwidth: 4°
  • Electrical Downtilt: 2°
  • Max. VSWR: 1.5:1
  • Polarization: Dual-linear
  • Cross-Polarization Isolation: 30 dB minimum
  • ETSI Specification: EN 302 326 DN2
  • Wind Survivability: 200 km/h (125 mph)
  • Wind Loading: 347 N at 200 km/h (78 lbf at 125 mph)
