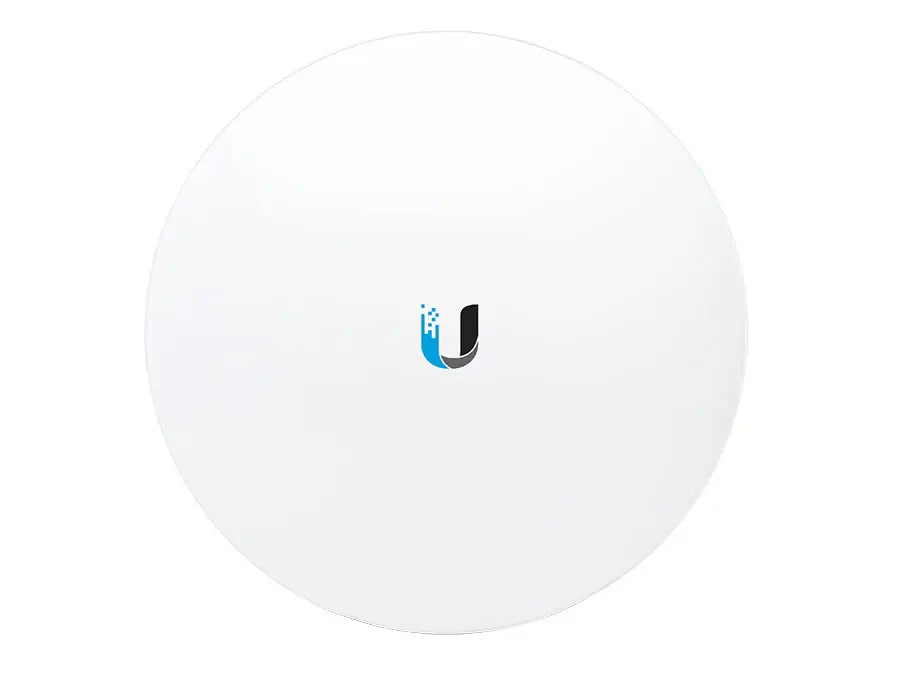

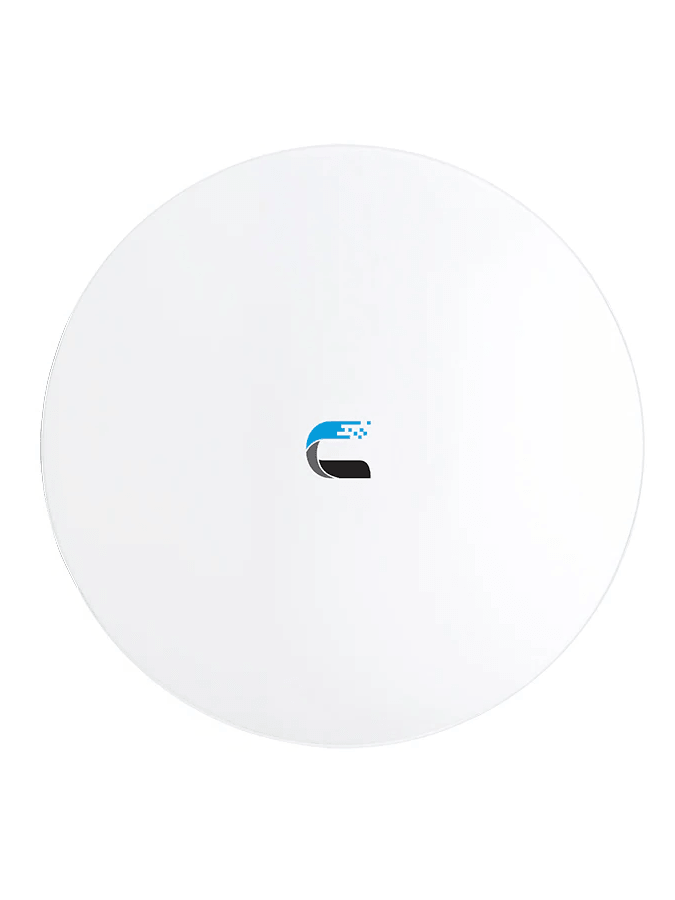

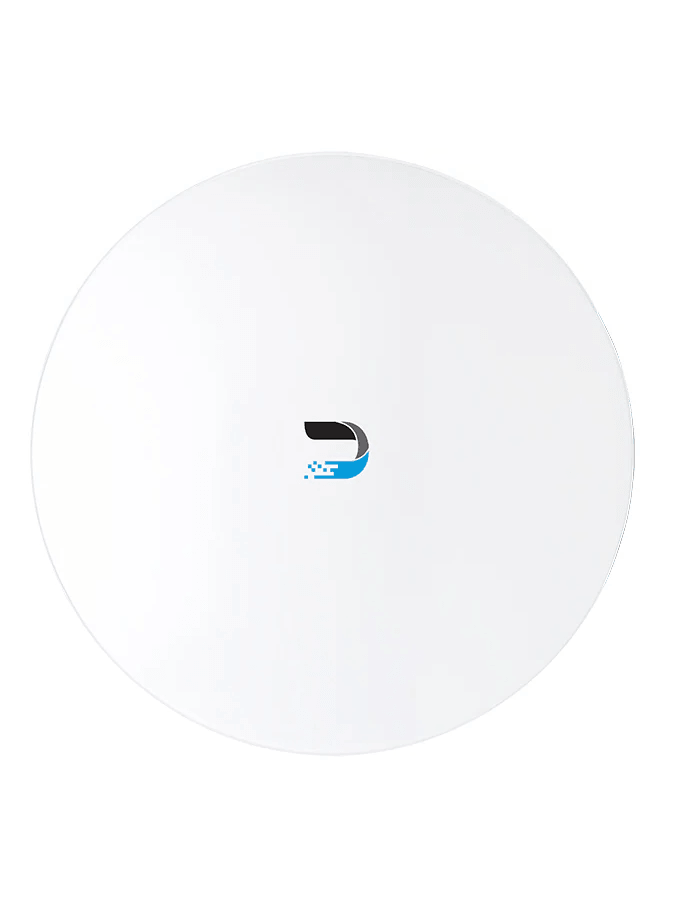

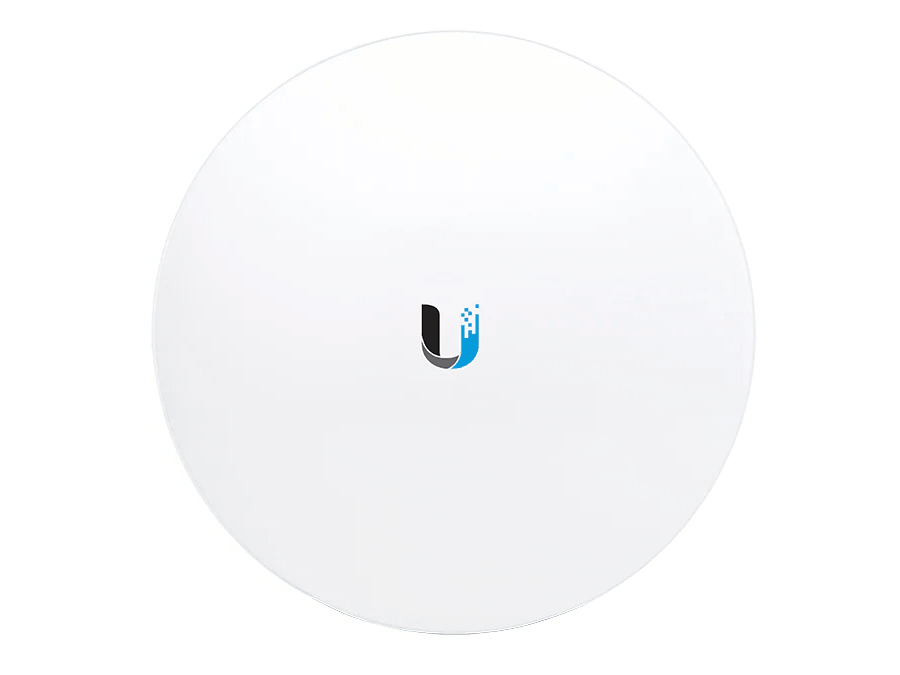

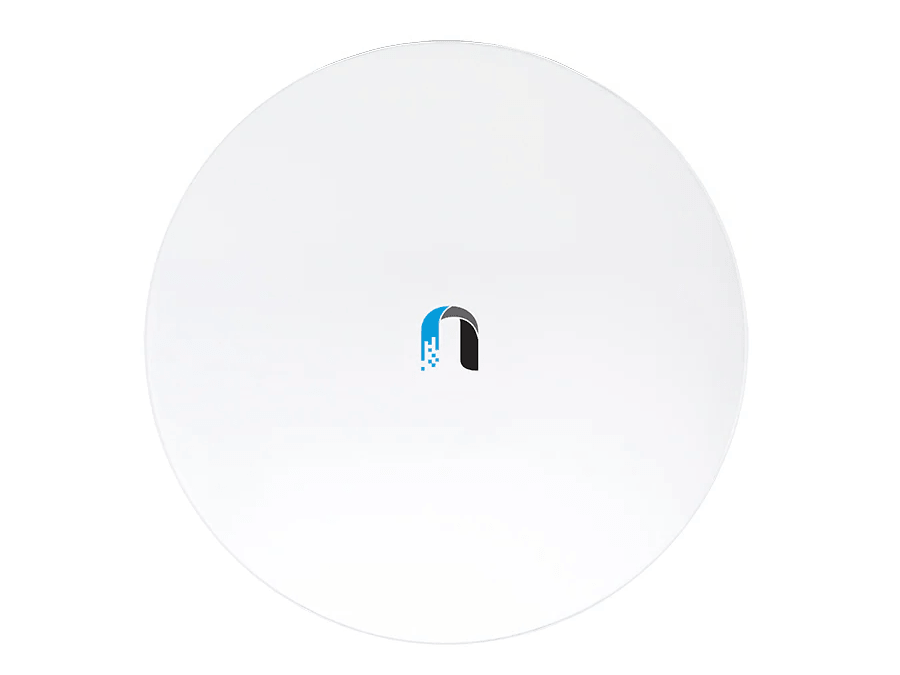

Ubiquiti UISP airFiberX 5GHz 23dBi 45° Slant Dish Antenna | AF-5G23-S45

The Ubiquiti UISP airFiberX 5GHz 23dBi 45° Slant Dish Antenna (model AF-5G23-S45) is engineered to enhance long-range Point-to-Point (PtP) wireless links. Its compact design and advanced RF isolation make it ideal for carrier backhauls and PtP bridging between buildings or towers. The antenna's 45° slant polarization improves noise immunity and signal-to-noise ratio, ensuring reliable performance in high-interference environments.

Features

• 23 dBi gain for robust long-range connectivity
• Dual-linear polarization with 45° slant for enhanced noise immunity
• Low-profile design with integrated radome to reduce wind loading
• High isolation to improve co-location performance in tower-mounted setups
• Universal pole mount compatible with 38 - 64 mm (1.5 - 2.5") poles
• Seamless integration with airFiber X radios
• Weatherproof design with protective shroud for cable and connector protection
• Bubble level for easy alignment during installation

Specifications

• Frequency Range: 5.1 - 5.9 GHz
• Gain: 23 dBi
• Beamwidth: 10° (3 dB) for both +45° and -45° polarizations
• Front-to-Back Ratio: 30 dB
• Maximum VSWR: 1.5:1
• Cross-Polarization Isolation: Minimum 35 dB
• Wind Loading: 190 N at 200 km/h (43 lbf at 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal pole mount for 38 - 64 mm (1.5 - 2.5") poles
