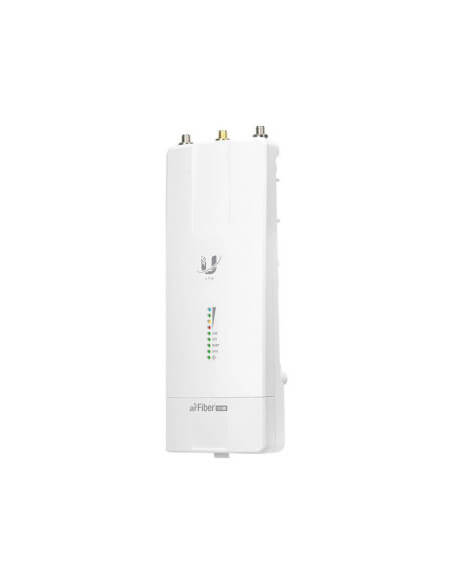

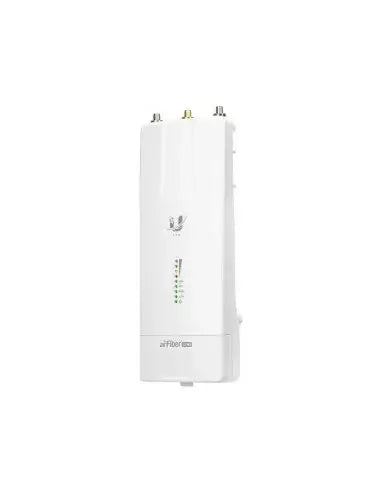

Ubiquiti UISP airFiber 5XHD 5GHz Radio | AF-5XHD

The Ubiquiti UISP airFiber 5XHD (AF-5XHD) is a high-performance 5 GHz carrier backhaul radio designed for long-range, point-to-point (PtP) wireless links. Leveraging Ubiquiti's proprietary LTU technology, it offers enhanced spectral efficiency and noise resilience, making it ideal for Wireless Internet Service Providers (WISPs) seeking reliable and high-capacity backhaul solutions. With a maximum throughput exceeding 1 Gbps and a range of over 100 km, the AF-5XHD is suitable for connecting remote locations, bridging network segments, and supporting bandwidth-intensive applications.

Features

• High Throughput: Achieves over 1 Gbps real data throughput, facilitating high-bandwidth applications.
• Extended Range: Supports link distances exceeding 100 km, suitable for long-distance connectivity.
• Advanced Modulation: Utilizes adaptive modulation up to 1024QAM for optimal performance.
• Configurable Channel Bandwidth: Offers selectable channel bandwidths from 10 MHz to 100 MHz, allowing flexibility in deployment.
• GPS Synchronization: Integrated GPS for precise frame synchronization, enhancing co-location capabilities.

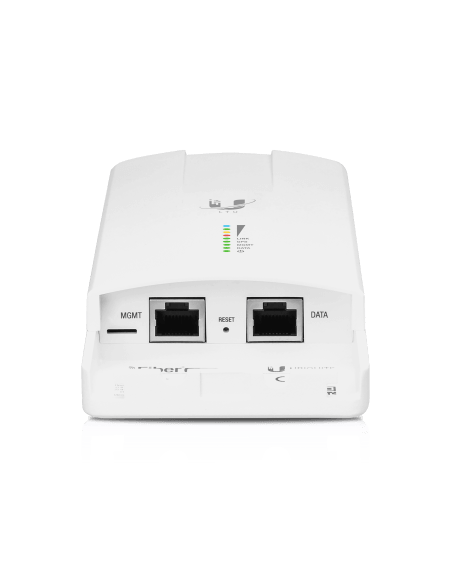

• Dual Gigabit Ethernet Ports: Provides two GbE RJ45 ports for data and configuration, supporting redundant PoE power.
• Weatherproof Design: IP67-rated enclosure ensures durability in various environmental conditions.
• Flexible Power Options: Supports passive PoE with a wide voltage range (18–54V DC) and includes a 24V, 1A gigabit PoE adapter.
• Advanced RF Performance: Features a maximum TX power of 29 dBm and precise frequency accuracy with GPS synchronization.
• User-Configurable Interference Mitigation: Offers selectable profiles to optimize performance in high-interference environments.

Specifications

• Networking Interface: (2) GbE RJ45 ports
• Power Method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or Passive PoE 2-pairs (4, 5+; 7, 8-) or (1, 2+; 3, 6-)
• Power Supply: 24V, 1A gigabit PoE adapter (included)
• Supported Voltage Range: 18–54V DC
• Max. Power Consumption: 12W

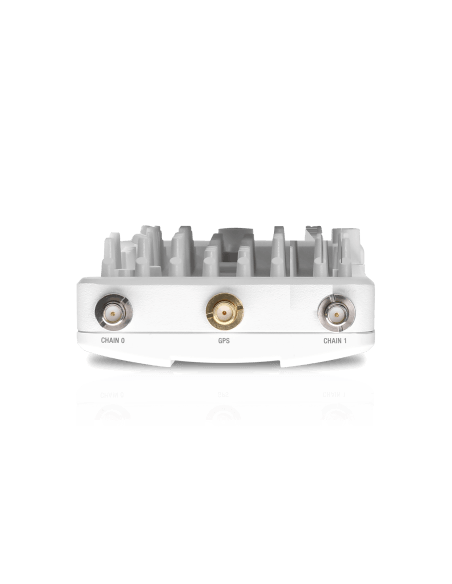

• GPS Antenna: External, magnetic base
• Operating Temperature: -40 to 55° C (-40 to 131° F)
• Certifications: CE, FCC, IC
• NDAA Compliant: Yes
• Modes: PtP Master/Slave
• Max. Throughput: 1+ Gbps
• Max. Range: 100+ km (throughput and range values may vary depending on environmental conditions)
• Encryption: AES-256
• Max. TX Power: 29 dBm (depends on regional regulations)
• Frequency Accuracy: ±2.5 ppm without GPS synchronization; ±0.2 ppm with GPS synchronization
• Channel Bandwidth: 10/20/30/40/50/60/80/100 MHz selectable
• Operating Frequency (MHz): Worldwide: 4800–6200 MHz (depends on regional regulations); US/CA: U-NII-1: 5150–5250 MHz, U-NII-2A: 5250–5350 MHz, U-NII-2C: 5470–5725 MHz, U-NII-3: 5725–5850 MHz
