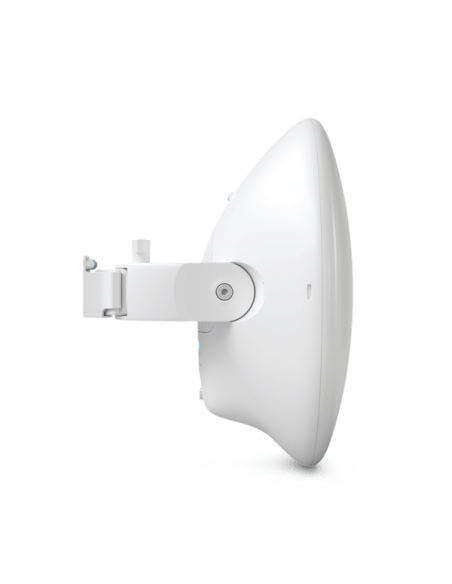

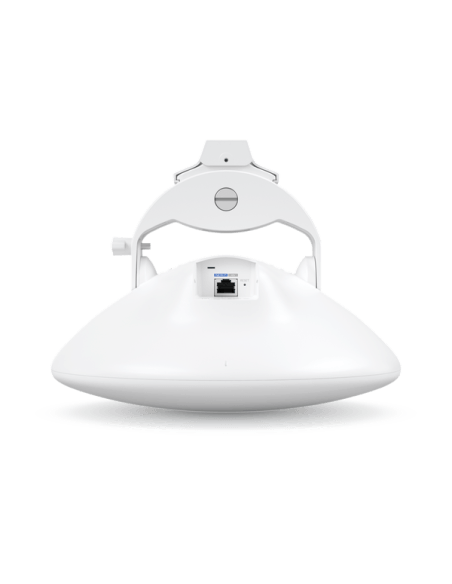

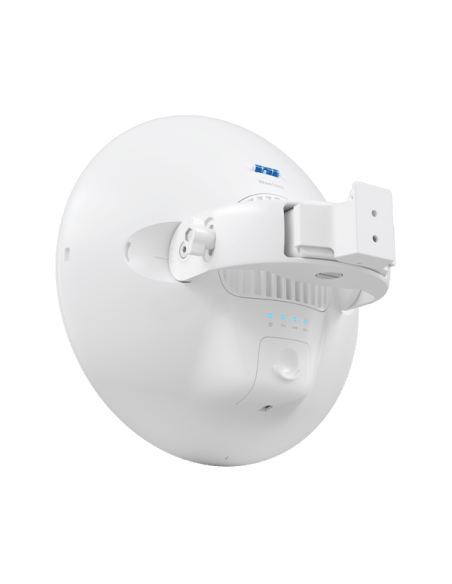

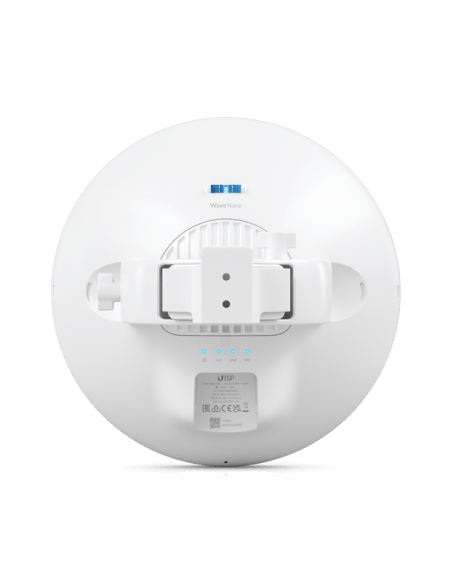

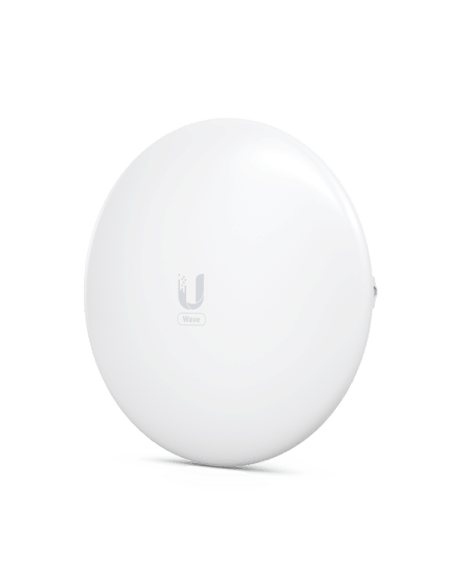

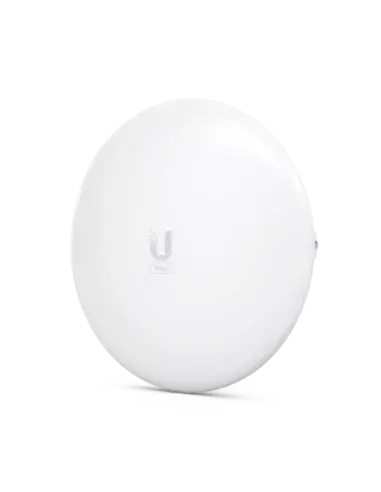

Ubiquiti UISP 60GHz/5GHz Wave Nano Radio | Wave-Nano

The Ubiquiti UISP Wave Nano is a cutting-edge 60 GHz Point-to-MultiPoint (PtMP) station designed for high-speed wireless connectivity. With a total throughput of 2 Gbps (1 Gbps duplex), this device ensures seamless connections over distances up to 5 km, making it ideal for Internet Service Providers (ISPs). It features a high-performance 5 GHz backup radio, integrated GPS antenna, and Bluetooth radio for easy setup using the UISP® Mobile app. Its compact and durable design, along with IPX6 weatherproofing, guarantees reliable performance in various environments. The Wave Nano is managed via the UISP application, providing advanced link planning and monitoring capabilities.

Features

• 5 GHz backup radio for enhanced reliability
• Supports link ranges up to 5 km
• Router mode support for versatile configurations
• Integrated GPS antenna for precise positioning
• Link planning support via ISP Design Center
• Managed with UISP application (Version 1.4.5 and later)
• Weatherproofing with IPX6 rating for durability
• Dual-core ARM® Cortex®-A53 processor at 1 GHz
• 512 MB DDR3L memory for efficient processing
• Single Gigabit Ethernet RJ45 port for high-speed connectivity
• Maximum power consumption of 20W
• Passive PoE support with included 48V DC, 0.65A gigabit PoE adapter
• Operating temperature range: -40 to 60° C (-40 to 140° F)
• Operating humidity: 5 to 95% non-condensing
• Certifications: FCC, IC, CE

Specifications

• Processor: Dual-core ARM® Cortex®-A53 at 1 GHz
• Memory: 512 MB DDR3L
• Networking Interface: (1) Gigabit Ethernet RJ45 port
• Maximum Power Consumption: 20W
• Power Method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
• Power Supply: 48V DC, 0.65A gigabit PoE adapter (included)
• Supported Voltage Range: 44–54V DC
• Button: Factory reset
• LEDs: Power, Ethernet, GPS, Link
• Ambient Operating Temperature: -40 to 60° C (-40 to 140° F)
• Ambient Operating Humidity: 5 to 95% non-condensing
• Certifications: FCC, IC, CE
