Ubiquiti UISP 60GHz/5GHz 90° PtMP Wave Access Point Gen2 | Wave-AP-Gen2

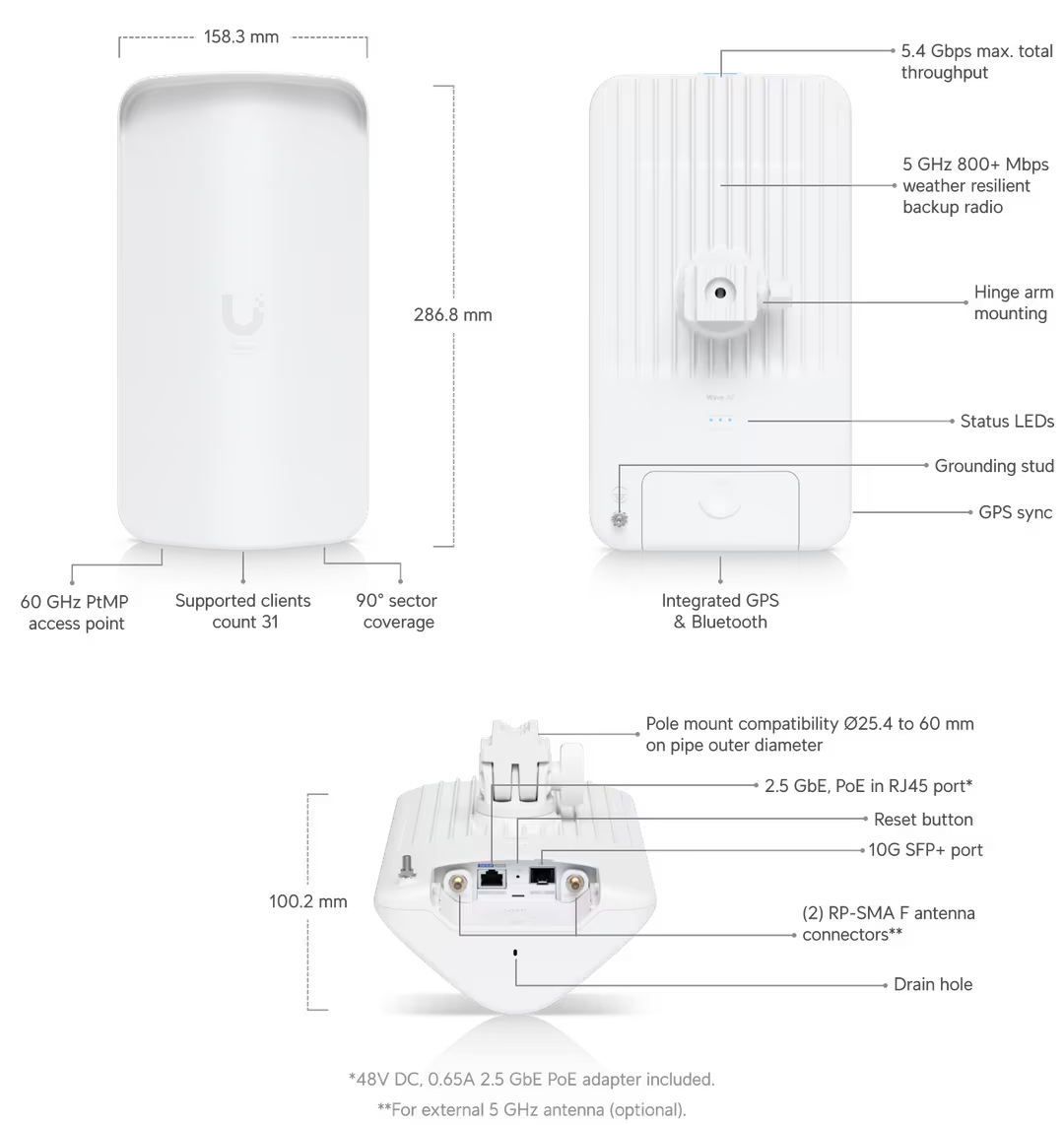

The Ubiquiti UISP Wave Access Point Gen2 (Wave-AP-Gen2) is a high-performance outdoor wireless access point designed for point-to-multipoint (PtMP) deployments. It operates in the 60 GHz spectrum with a 5 GHz backup radio, providing robust and high-speed connectivity. This device is ideal for Internet Service Providers (ISPs) and enterprise wireless backhaul applications, offering up to 5.4 Gbps total throughput and supporting up to 31 client connections. The Wave-AP-Gen2 features a weather-resistant enclosure, making it suitable for various outdoor environments.

Features

• Dual-band operation with 60 GHz primary and 5 GHz backup radios for enhanced reliability.
• 90° sector coverage for wide-area connectivity, ensuring extensive reach.
• Supports up to 31 client connections, making it ideal for high-demand environments.
• Total throughput of up to 5.4 Gbps (2.7 Gbps symmetrical) for efficient data transfer.
• Integrated GPS and Bluetooth for enhanced functionality and management.
• Weather-resistant enclosure with IPX6 rating, ensuring durability in harsh conditions.
• Flexible power options with passive PoE support for easy deployment.
• Managed via UISP application for centralized configuration and monitoring.

Specifications

• Processor: Quad-core ARM Cortex-A53 at 1.4 GHz
• Memory: 512 MB DDR3L

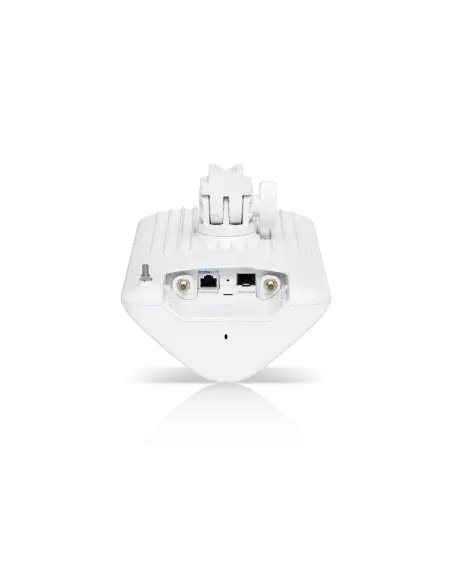

• Networking Interfaces: 1 x 2.5 GbE RJ45 port, 1 x 10G SFP+ port
• Power Consumption: Maximum 24 W
• Power Method: Passive PoE (4-pair and 2-pair)
• Operating Temperature: -40°C to 60°C
• Operating Humidity: 5% to 95% non-condensing
• Weatherproofing: IPX6 rating
• Antenna Gain: 60 GHz: 20 dBi, 5 GHz: 13 dBi
• Beamwidth: Azimuth: 90°, Elevation: 7°
• Supported Channel Bandwidths: 540, 1080, and 2160 MHz
• Modulation: 16QAM, QPSK
• Encryption: WPA2-PSK (AES)
