Ubiquiti UISP Fiber WiFi 6 GPON CPE with 4 Gigabit Ports | UF-WIFI6

The Ubiquiti UFiber WiFi6 GPON CPE (UF-WiFi6) is a high-performance customer-premises equipment (CPE) device designed to deliver robust and high-speed Gigabit Passive Optical Network (GPON) connections. By integrating WiFi 6 technology, it ensures enhanced wireless performance, making it ideal for both residential and business environments. With its capability to establish GPON links up to 20 kilometers, the UF-WiFi6 allows service providers to extend their network reach and cater to a broader customer base.

Features

• Supports WiFi 6 (802.11ax) for improved wireless performance.

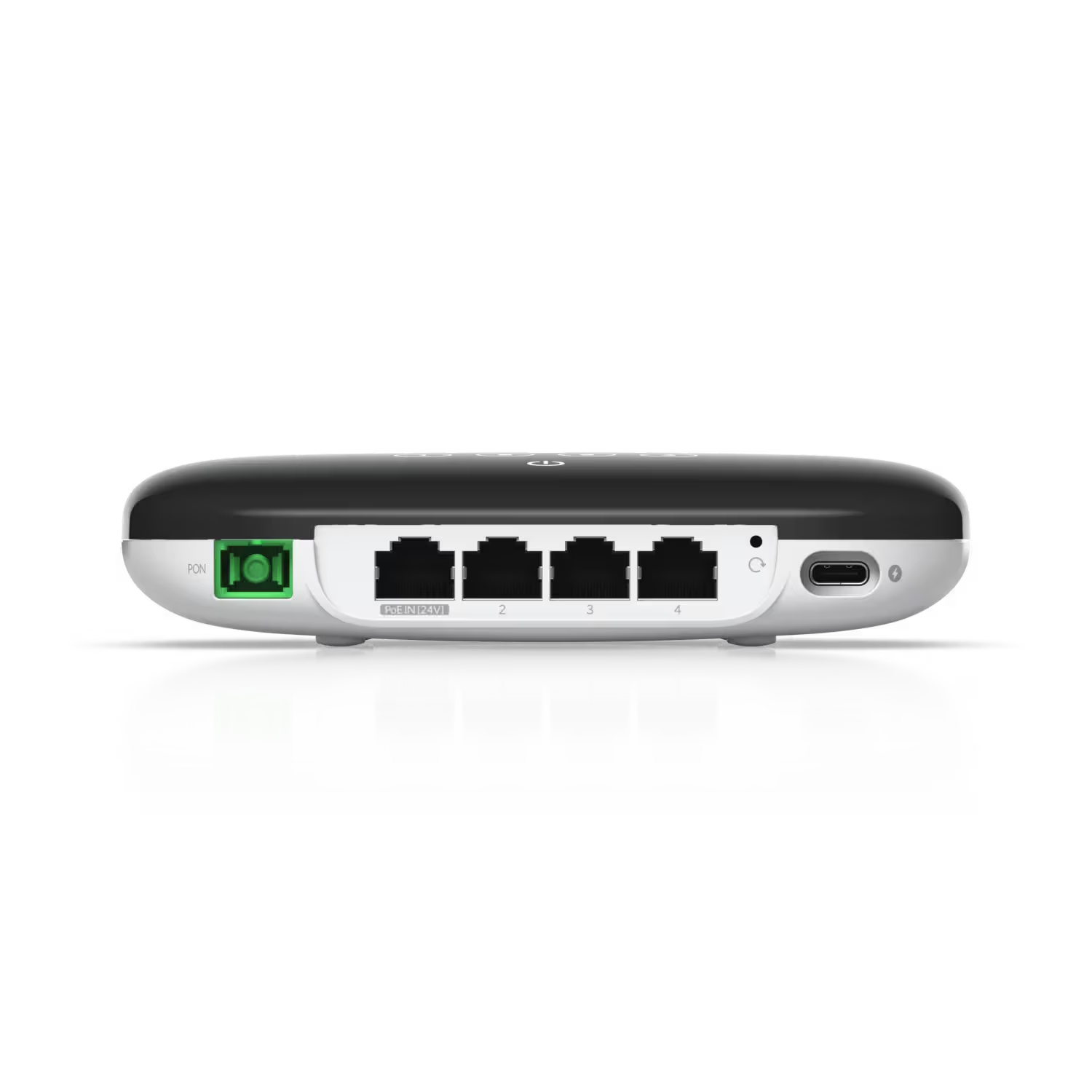

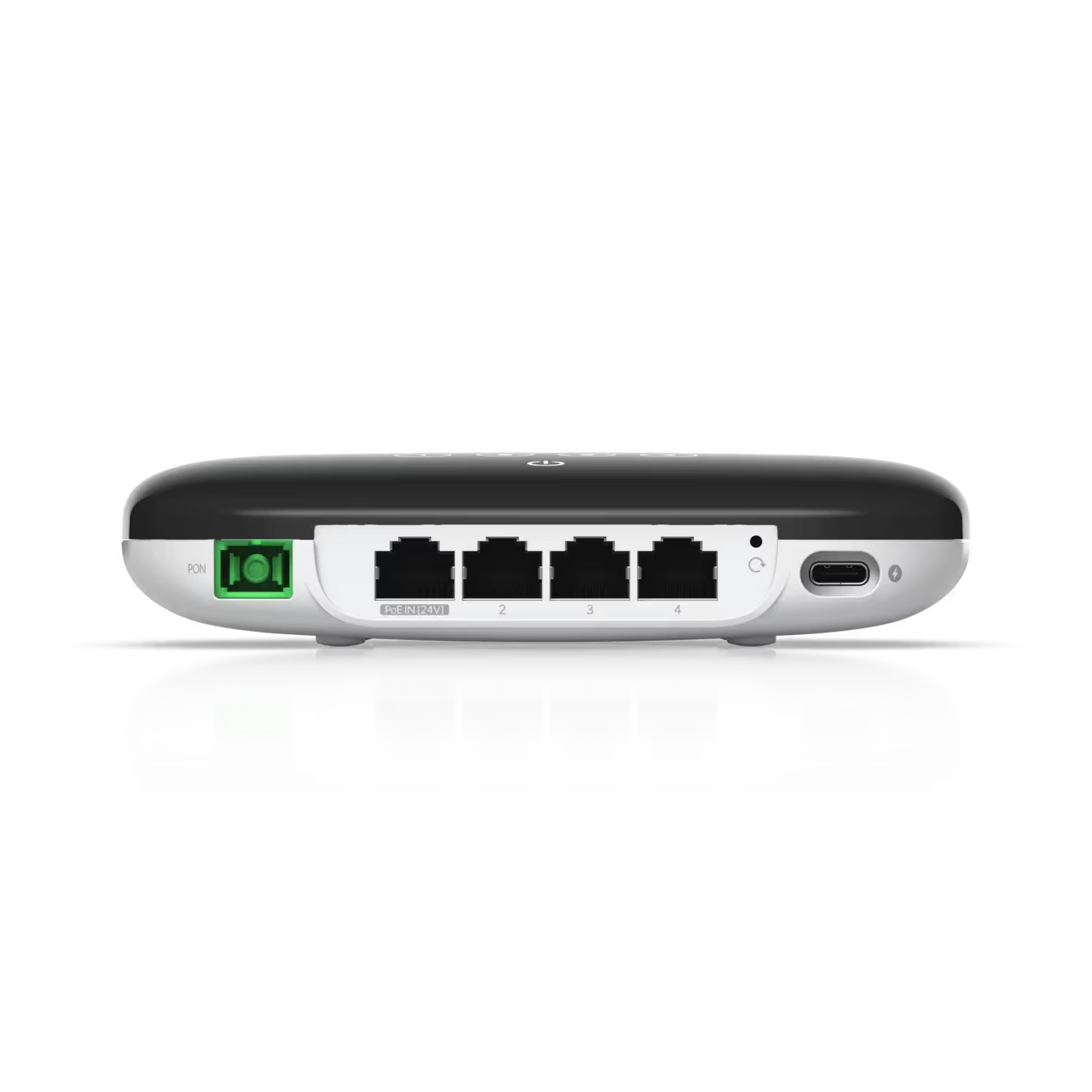

• Equipped with one SC/APC GPON WAN port for fiber connectivity.
• Includes four Gigabit Ethernet (GbE) RJ45 LAN ports for wired connections.
• Offers dual-band WiFi with 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MU-MIMO and OFDMA) channels.
• Capable of achieving downstream rates up to 2.4 Gbps and upstream rates up to 1.2 Gbps.
• Supports GPON links up to 20 km, facilitating long-distance fiber connections.
• Provides multiple power options: USB-C 5V DC, 3A, and 24V passive PoE, 0.5A.
• Features a factory reset button for easy device management.
• Constructed with UV-stabilized polycarbonate for durability.
• Complies with FCC, IC, and CE certifications.

Specifications

• Processor: Dual-core MIPS 1004 Kc at 900 MHz
• Memory: 256 MB RAM
• Networking Interfaces: 1x SC/APC, ITU-G.984 GPON WAN port; 4x GbE RJ45 LAN ports; WiFi 802.11ax 5/2.4 GHz channels
• Power Method: USB-C 5V DC, 3A; 24V passive PoE, 0.5A
• Power Supply: 5V DC, 3A power adapter, 1.5 m cord (included); Passive PoE 2-pair (4, 5+; 7, 8-)
• Supported Voltage Range: 10–30V DC (Passive PoE); 5V DC (Adapter)
• Max. Power Consumption: 11W
• Optical Module Range: TX: 0.5 to 5 dBm; RX: -8 to -28 dBm
• Total Non-Blocking Line Rate: Downstream: 2.5 Gbps; Upstream: 1.2 Gbps
• Max. TX Power: 5 GHz: 20 dBm; 2.4 GHz: 20 dBm
• MIMO: 5 GHz: 2x2; 2.4 GHz: 2x2
• Throughput: 5 GHz: 1.2 Gbps; 2.4 GHz: 300 Mbps
• Antenna Gain: 5 GHz: 3 dBi; 2.4 GHz: 1 dBi

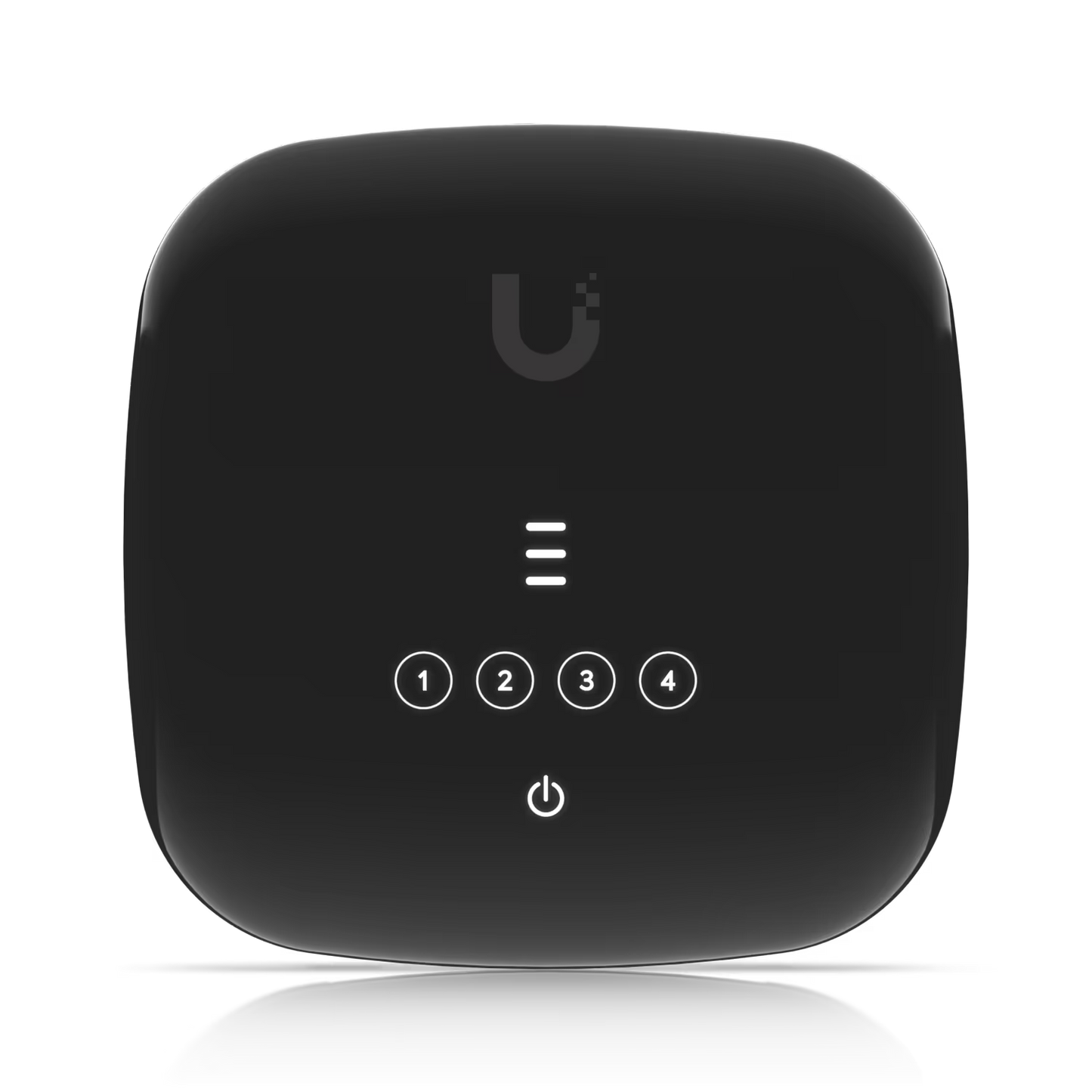

• LED Indicators: PON Status: 3 Signal LEDs; Ethernet: Steady white (Link up), Blinking white (Activity), Off (Link down); Power: White (On)
• Button: Factory reset
• Ambient Operating Temperature: -15 to 45° C (5 to 113° F)
• Ambient Operating Humidity: 10 to 90% non-condensing
• Certifications: FCC, IC, CE; NDAA Compliant: Yes
