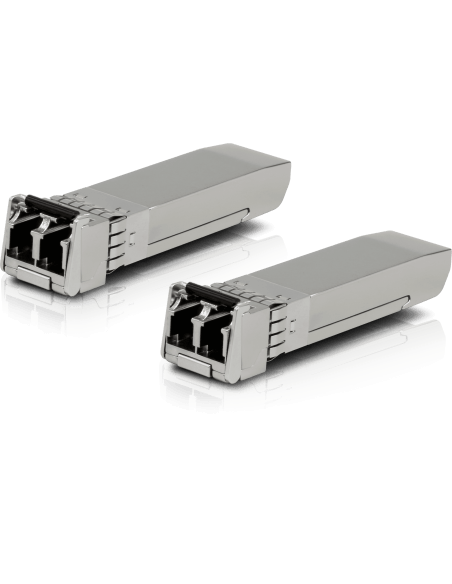

Ubiquiti Single Mode 10G LC SFP+ 1310nm 10km | UACC-OM-SM-10G-D-2

The Ubiquiti 10G Single-Mode Optical Module (UACC-OM-SM-10G-D-2) is a high-performance SFP+ transceiver designed to deliver 10 Gbps data transfer rates over single-mode fiber connections. With a reach of up to 10 kilometers, it is ideal for long-distance networking applications such as data centers, enterprise networks, and telecommunications infrastructure. The module features a duplex LC UPC connector and operates at a wavelength of 1310 nm, ensuring compatibility with a wide range of networking equipment. Its low power consumption and compliance with industry standards make it a reliable choice for extending network capabilities over significant distances.

Features

• Supports data rates up to 10 Gbps
• Compatible with SFP+ and SFP interfaces
• Duplex LC UPC connector for easy installation
• Supports single-mode fiber connections up to 10 km
• Low power consumption of 1 W
• Operating temperature range: 0 to 70°C (32 to 158°F)
• Compliant with industry standards and NDAA requirements

Specifications

• Form Factor: SFP+
• Connector Type: Duplex LC UPC
• Supported Media: Single-Mode Fiber
• TX Wavelength: 1310 nm
• RX Wavelength: 1310 nm
• Supported Data Rate: 10 Gbps
• Supported Cable Distance: 10 km (6.2 miles)
• Max. Power Consumption: 1 W
• Ambient Operating Temperature: 0 to 70°C (32 to 158°F)
