Ubiquiti NanoSwitch Outdoor 4 Port Gigabit with 3 POE Out | N-SW

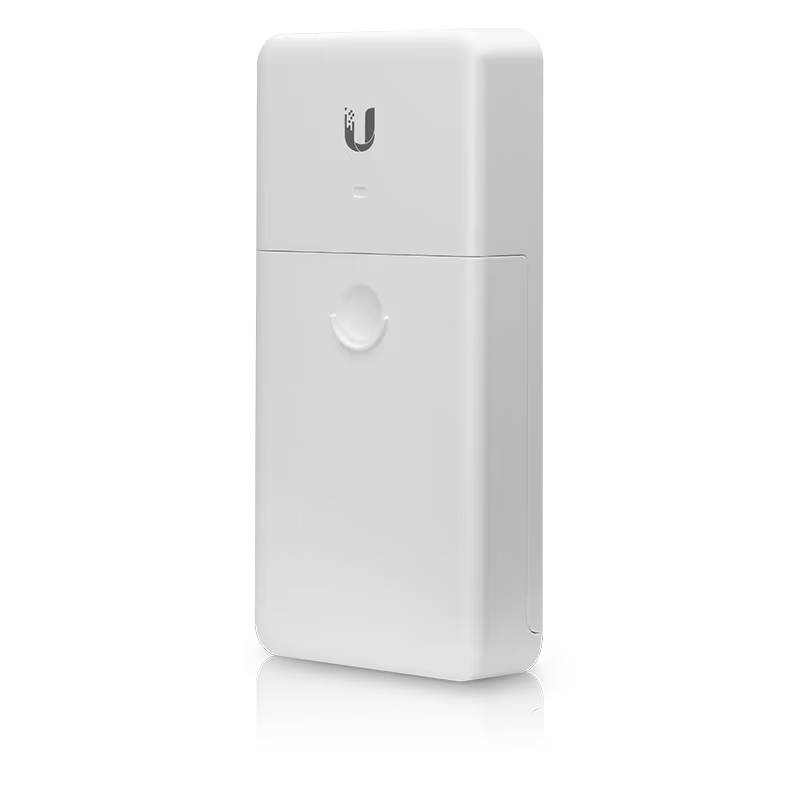

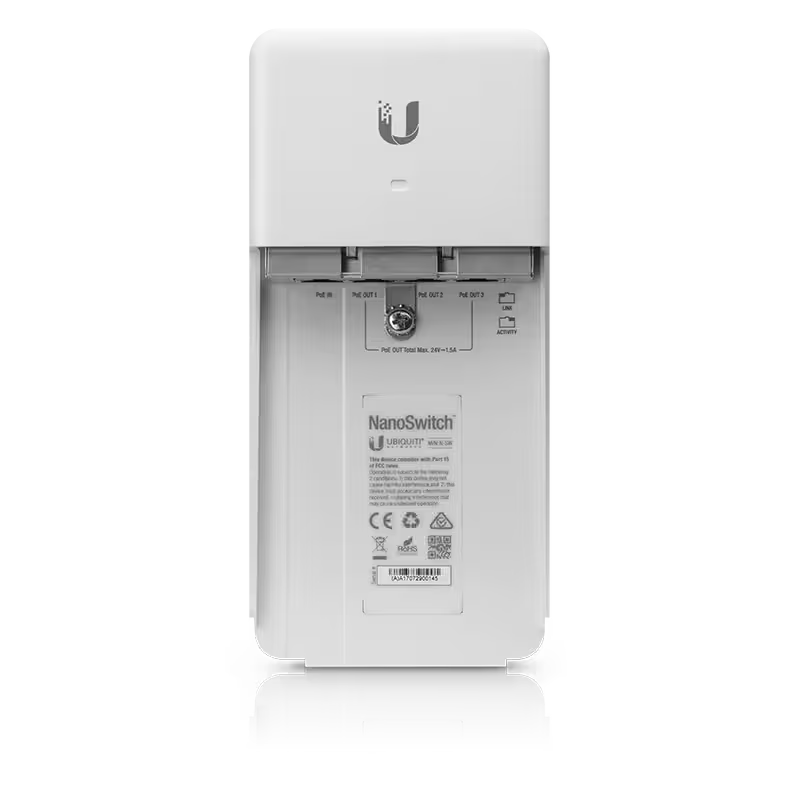

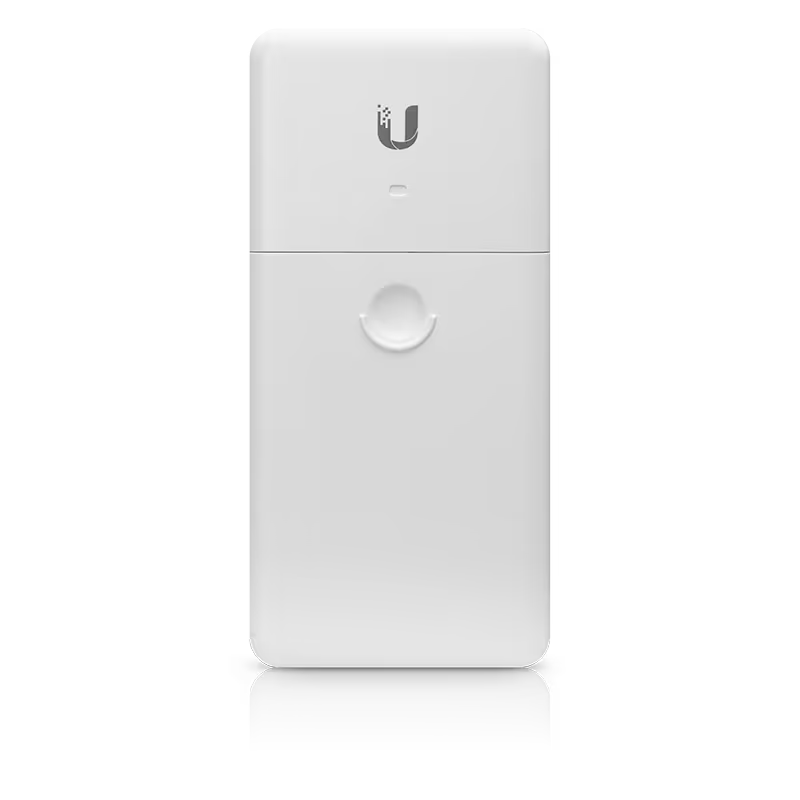

The Ubiquiti NanoSwitch (N-SW) is an unmanaged, outdoor 4-port Gigabit switch designed to extend network connectivity in outdoor environments. Powered by 24V Passive PoE, it delivers up to 24W of power on three PoE output ports, making it ideal for connecting devices such as IP cameras, wireless access points, and other PoE-enabled equipment. Its weather-resistant enclosure ensures durability in various environmental conditions, and its compact design allows for easy mounting on poles or walls.

Features

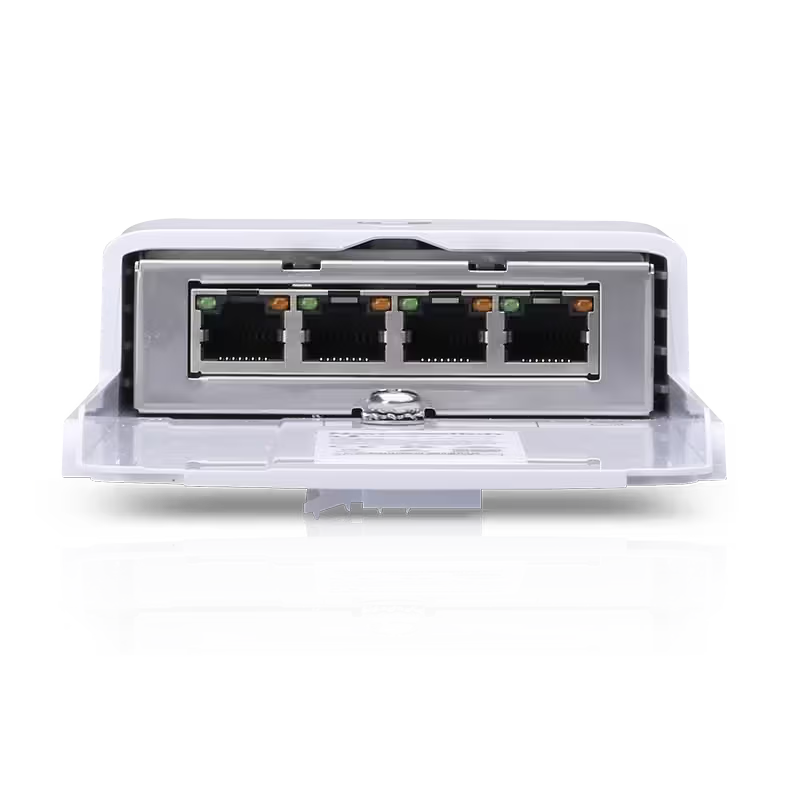

• Four Gigabit Ethernet ports: one PoE input and three PoE passthrough outputs.
• Supports up to 4 Gbps total non-blocking line rate.
• Outdoor, weather-resistant polycarbonate enclosure.
• Easy installation with pole or wall mounting options.
• Passive 24V, 2-pair PoE input and output.
• LED indicators for speed, link, and activity on all ports.
• ESD/EMP protection: ±24 kV air/contact.
• Operating temperature range: -30°C to 70°C (-22°F to 158°F).
• Operating humidity: 5% to 95% non-condensing.
• Compliant with CE, FCC, and IC certifications.

Specifications

• Networking Interfaces: (4) 10/100/1000 Mbps RJ45 ports
• Total Non-Blocking Line Rate: 4 Gbps
• Power Method: Passive 24V, 2-pair PoE-in
• Supported Voltage Range: 21.6–30V
• Typical Power Consumption: 1.5W
• Maximum Power Consumption: 30W
• Passive PoE Max Wattage per Port: 24V, 2-pair, 1A per port (24W)
• Total Passive PoE Max Wattage: 24V, 2-pair, 1A for 3 ports (30W)
• ESD/EMP Protection: Air/contact: ±24 kV
• LED Indicators: Speed/Link/Activity (all ports)
• Ambient Operating Temperature: -30°C to 70°C (-22°F to 158°F)
• Ambient Operating Humidity: 5% to 95% non-condensing
• Certifications: CE, FCC, IC
