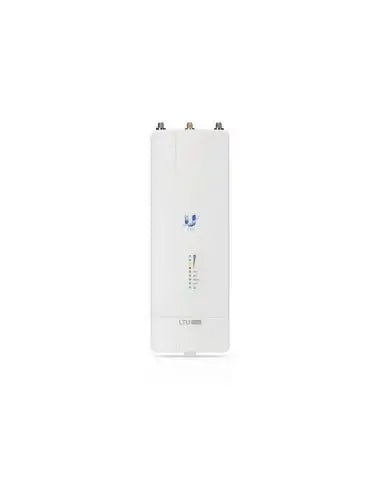

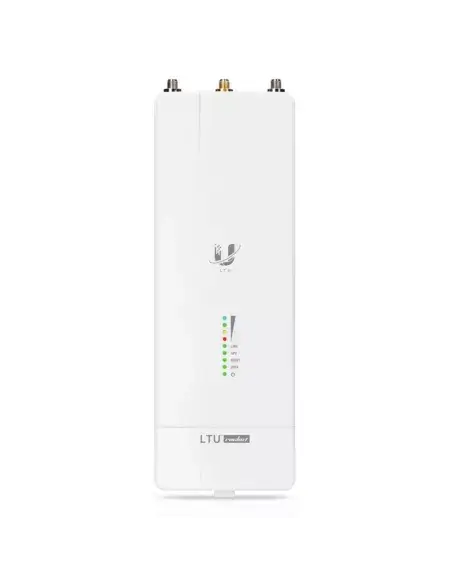

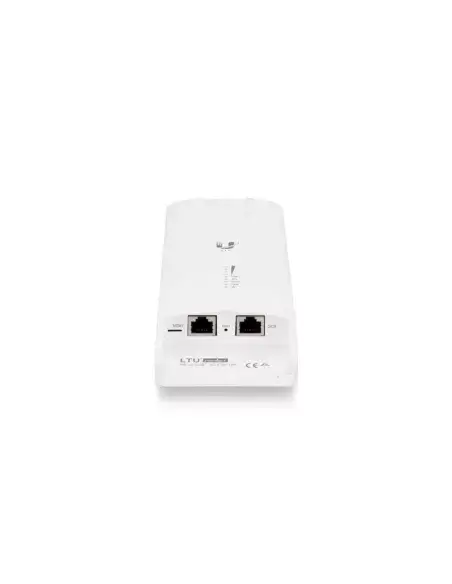

Ubiquiti LTU Rocket | LTU-Rocket-U

The Ubiquiti LTU Rocket is a high-performance point-to-multipoint 5GHz access point designed for wireless ISPs and enterprises. It features advanced RF filtering, flexible GPS synchronization, and robust processing capabilities, ensuring superior connectivity and reliability in demanding environments.

Features

• Point-to-Multipoint Functionality: Designed to operate efficiently in a PtMP environment with LTU Pro, LTU Lite, or LTU LR as clients.
• High Throughput: Capable of achieving over 900 Mbps throughput, making it suitable for high-demand applications.
• Client Capacity: Supports up to 100 clients, providing scalability for growing networks.
• Advanced Filtering: Integrated 5 GHz advanced filtering performance enhances signal quality and reduces interference.
• Dedicated Spectral Analysis Radio: Allows for real-time monitoring and optimization of network performance.
• Integrated GPS Sync: Ensures precise timing and coordination between multiple access points.

Specifications

• Dimensions: 244 x 82 x 48 mm (9.61 x 3.23 x 1.89 inches)
• Weight: 0.468 kg (1.03 lb)
• Operating Temperature: -40 to 55°C (-40 to 131°F)
• Weatherproofing: IP67 rated for protection against dust and water ingress.
• Power Supply: 24VDC, 1A Gigabit, 4-Pair Passive PoE (Included)
• Maximum Power Consumption: 15W
• Operating Frequency: 4800 - 6200 MHz (Worldwide), with specific U-NII bands for the US/CA.
• Max Conducted TX Power: 23 dBm
• Packets per Second: 2,000,000
• Wireless Modes: Access Point (AP)
