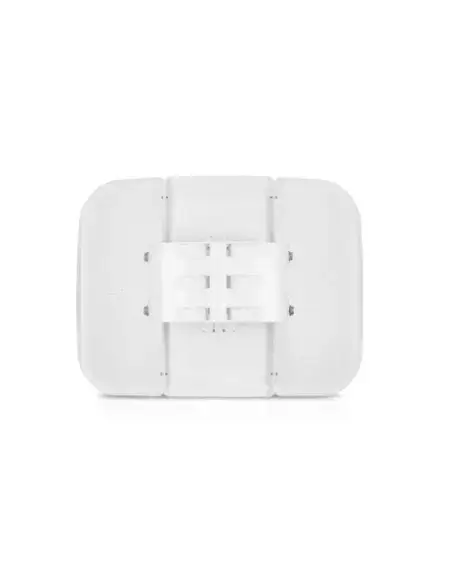

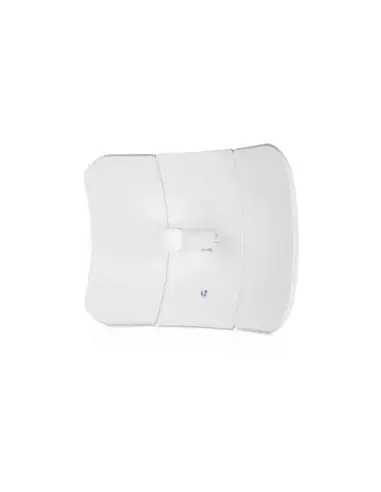

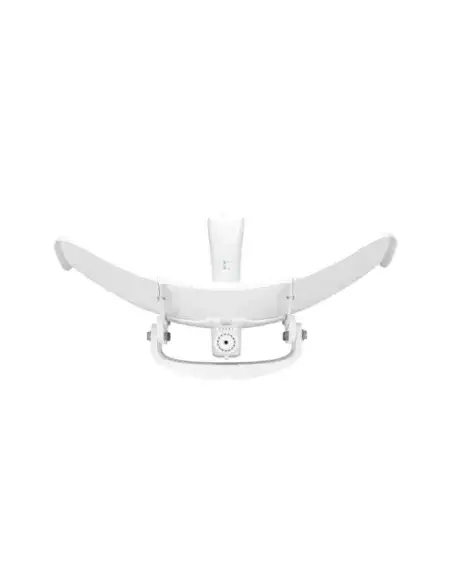

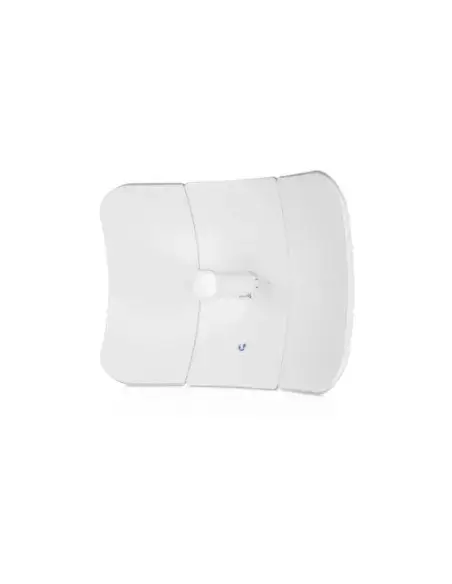

Ubiquiti LTU Long Range | LTU-LR-U

The Ubiquiti LTU Long Range (LR) is a high-performance 5 GHz subscriber station designed for long-range applications. Featuring a 26dBi antenna with high power inner-feed, it is optimized for Point-to-MultiPoint (PtMP) environments, offering exceptional throughput and noise immunity.

Features

• High Gain Antenna: Equipped with a 26dBi antenna for extended range and improved signal quality.
• High Throughput: Supports over 600 Mbps TCP/IC throughput, enabling high-speed data transmission.
• Advanced Modulation: Utilizes 4096 QAM for enhanced data rates and efficiency.
• Noise Immunity: Designed to spatially filter out noise, improving overall network performance in challenging environments.
• Easy Installation: Pole-mountable design simplifies setup in various locations.

Specifications

• Operating Frequency: 5 GHz
• Antenna Gain: 26dBi
• Max Throughput: 600+ Mbps
• Modulation Rate: 4096 QAM
• Beamwidth: 15°
• Ethernet Ports: 1x 10/100/1000
• Power Consumption: Max 8.5W
• Operating Temperature: -40 to 60°C
• PoE Input: 24V Passive PoE
• Dimensions: 512.5 x 385.75 x 258.3 mm
• Weight: 1.73 kg
