Ubiquiti Gigabit PoE Adapter 48V 60W with No Cable | U-PoE++

The Ubiquiti U-PoE++ (SKU: UPOE48-60W) is a powerful Gigabit PoE++ adapter designed to deliver up to 60W of power to compatible devices, making it ideal for high-demand UniFi devices such as the UA Hub and G4 PTZ cameras. This adapter is perfect for situations where PoE++ capable switches are unavailable, ensuring reliable power and data connectivity through a single cable. It features built-in surge, peak pulse, and overcurrent protection to safeguard your devices, and its compact design allows for easy integration into various network setups.

Features

• Delivers up to 60W of PoE++ power
• Built-in surge, peak pulse, and overcurrent protection

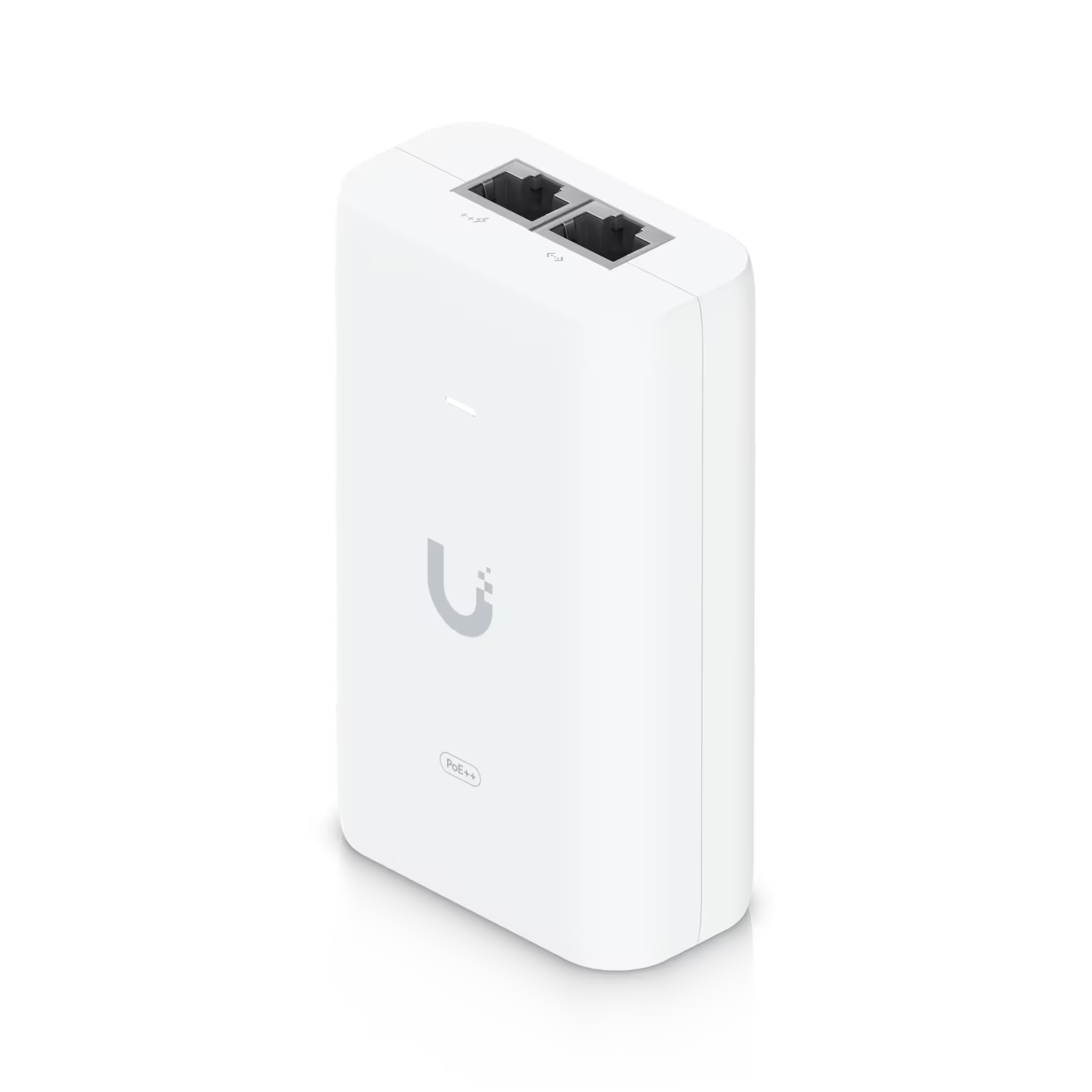

• Gigabit LAN port with shielded RJ45 input
• Supports 4-pair powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

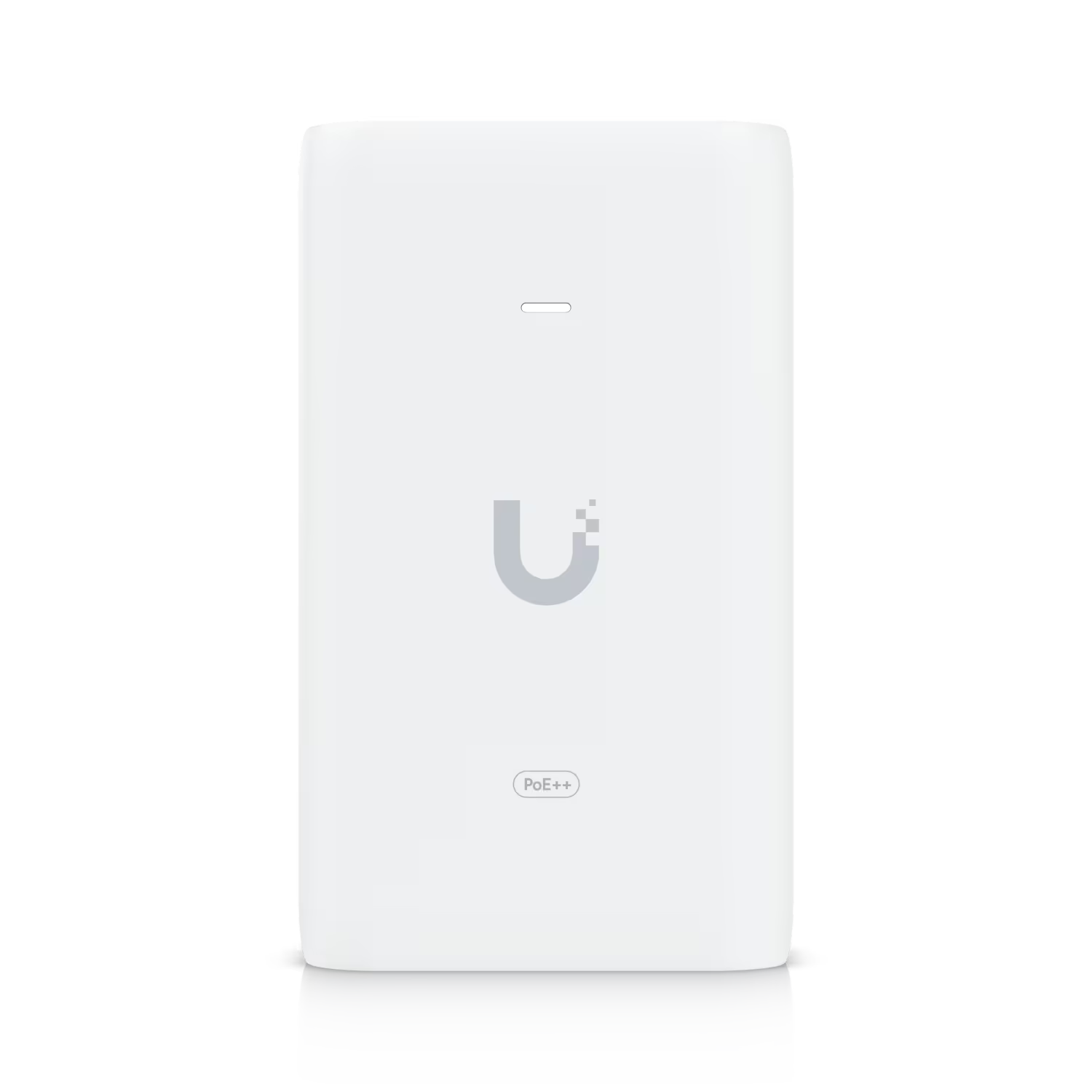

• LED indicator for status monitoring

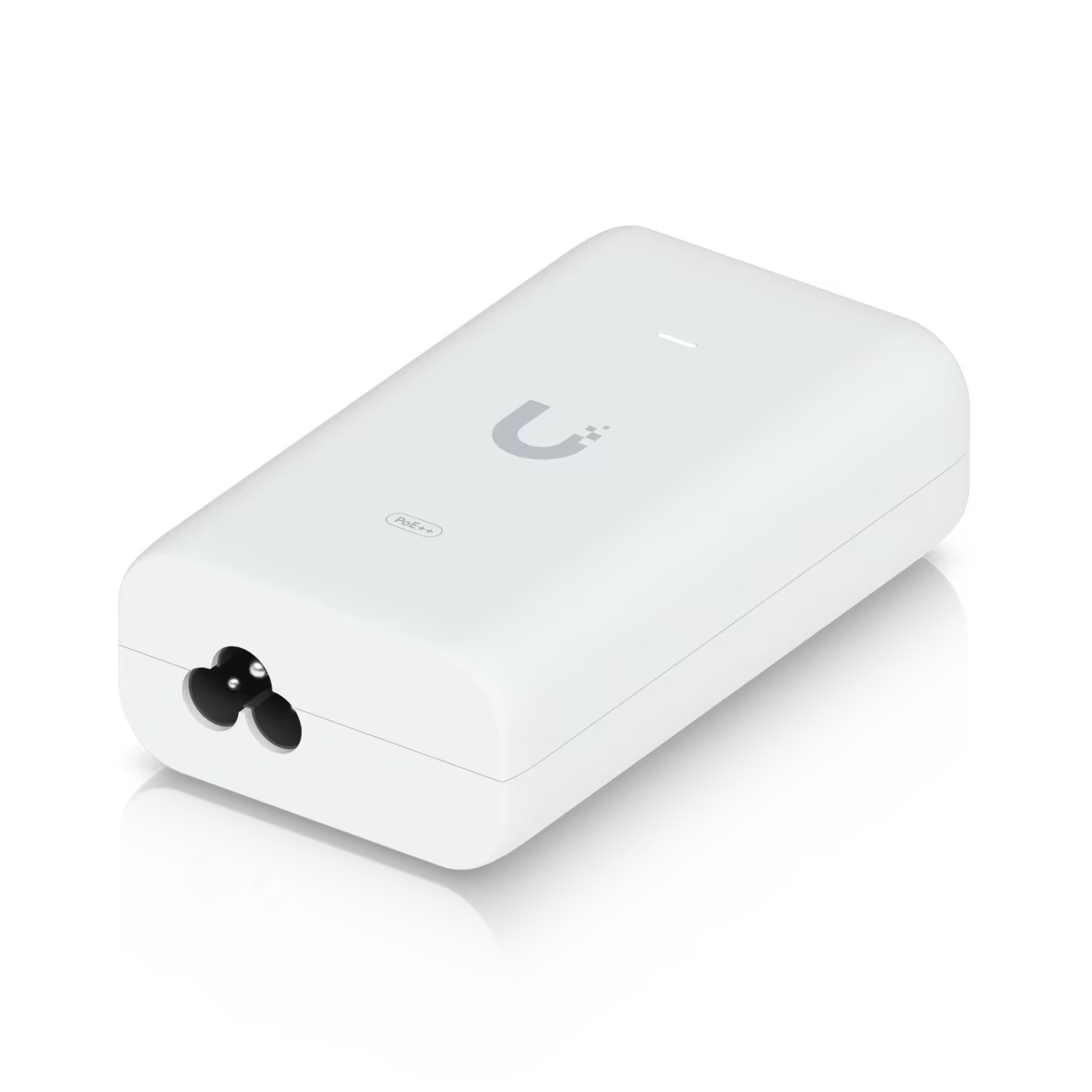

• Compact and durable design suitable for various environments
• NDAA compliant and certified for international use

Specifications

• Output Voltage: 48V DC at 1.25A
• Rated Voltage: 100–240V AC at 50/60Hz
• Input Current: 1.3A @ 120V AC; 0.75A @ 230V AC
• Inrush Current: <100A peak @ 120V AC; <200A peak @ 230V AC
• Efficiency: 85+%
• Switching Frequency: 65 kHz
• Output Ripple: 1% Max.
• Line Regulation: ≤ 1%
• Load Regulation: ≤ 3%

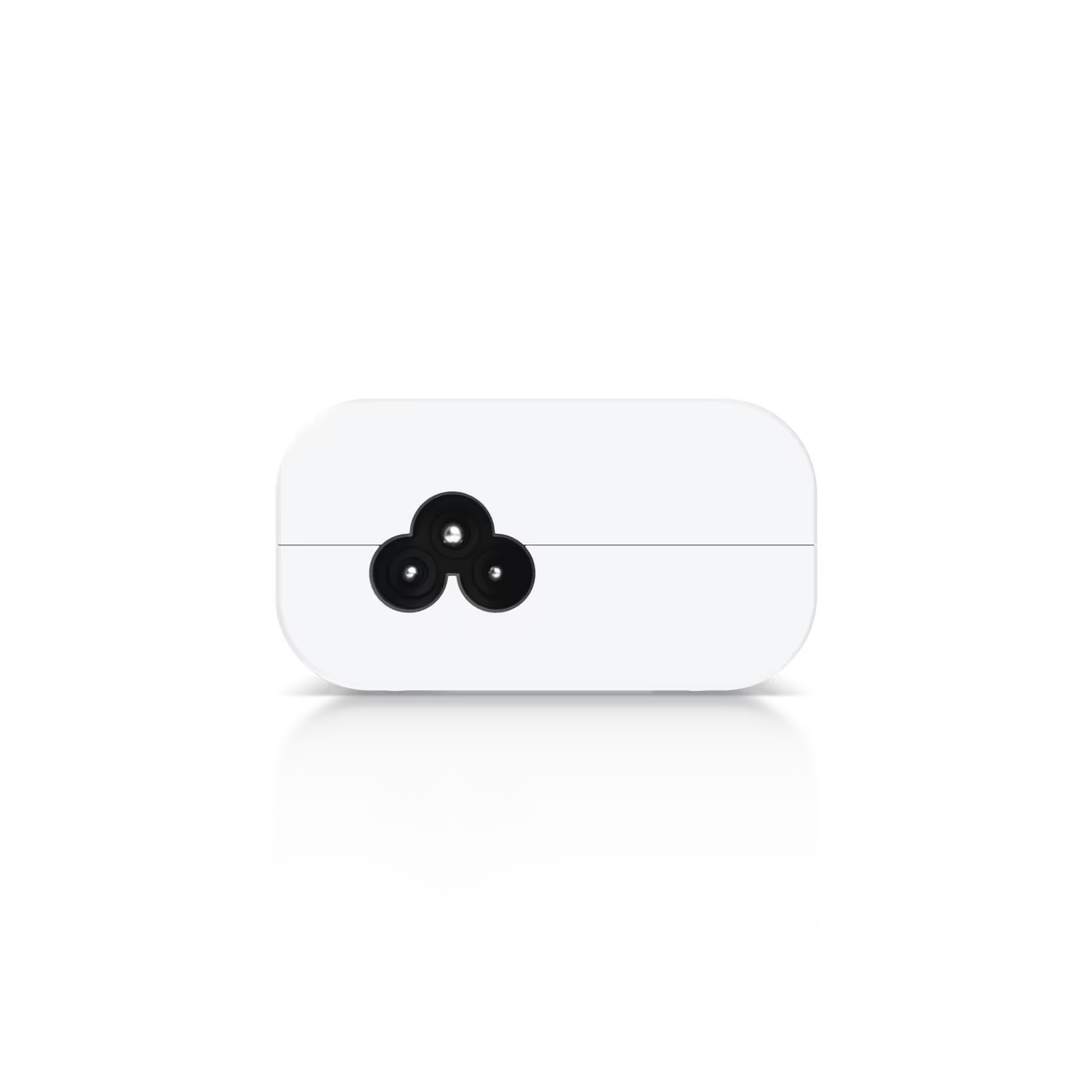

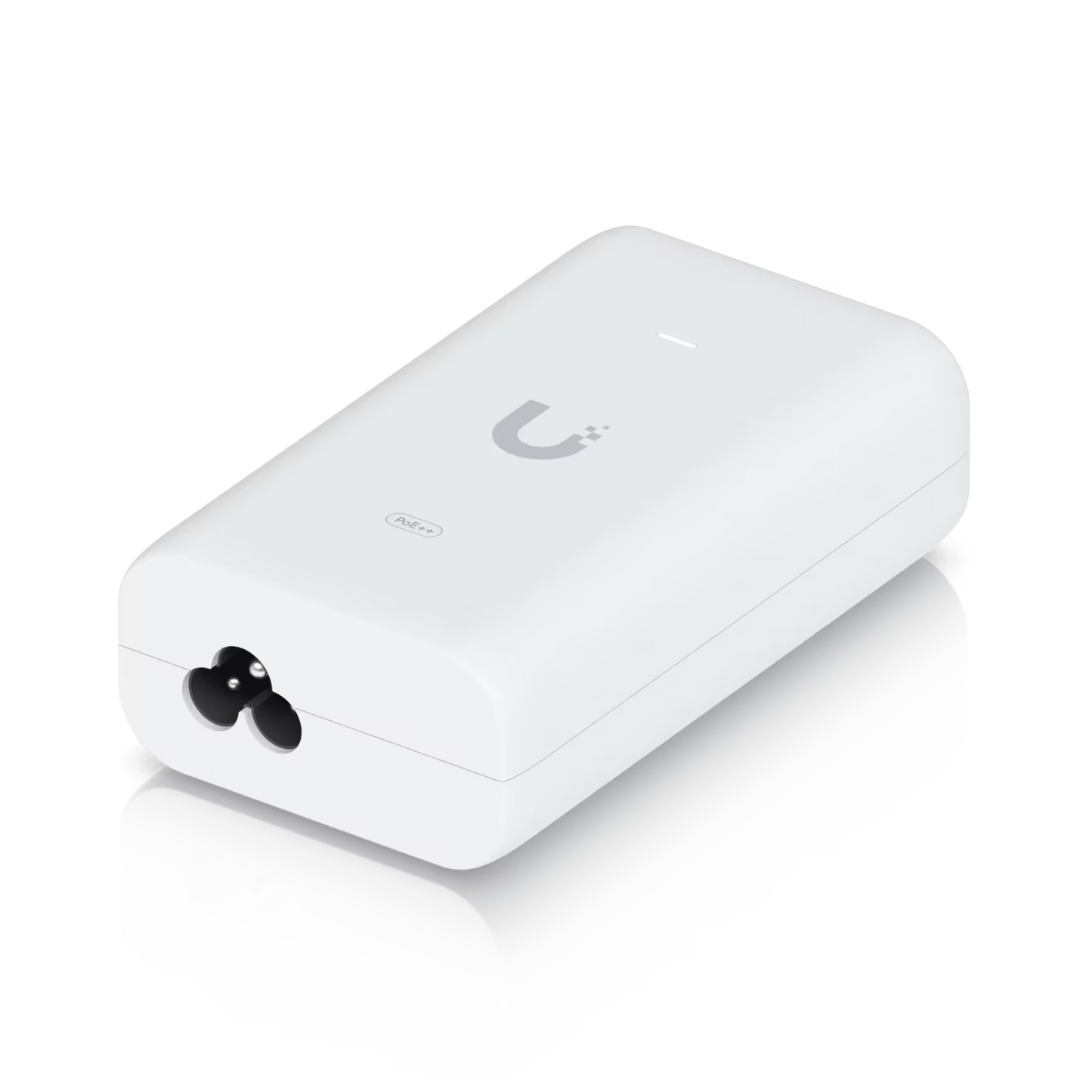

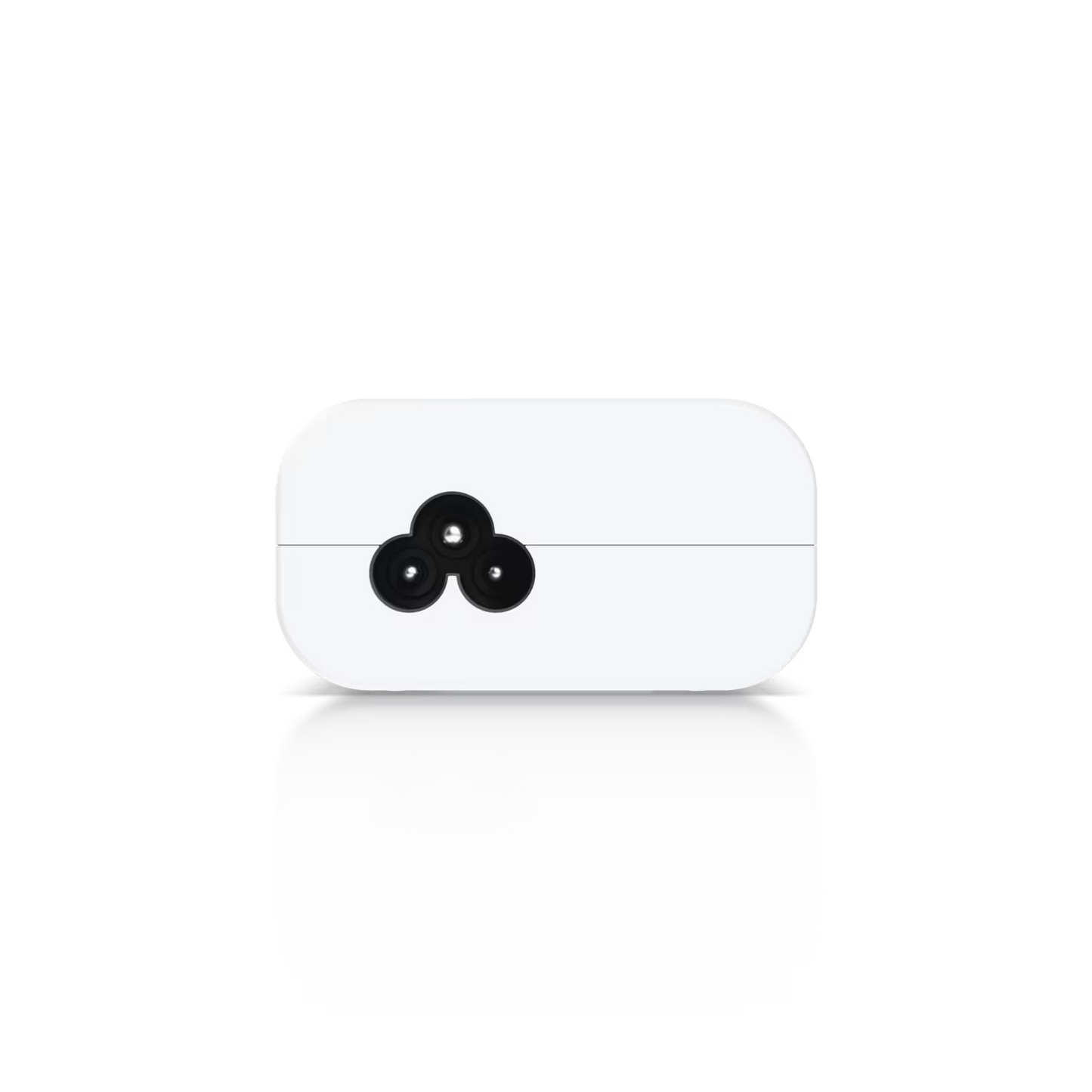

• AC Connector: IEC-320 C6

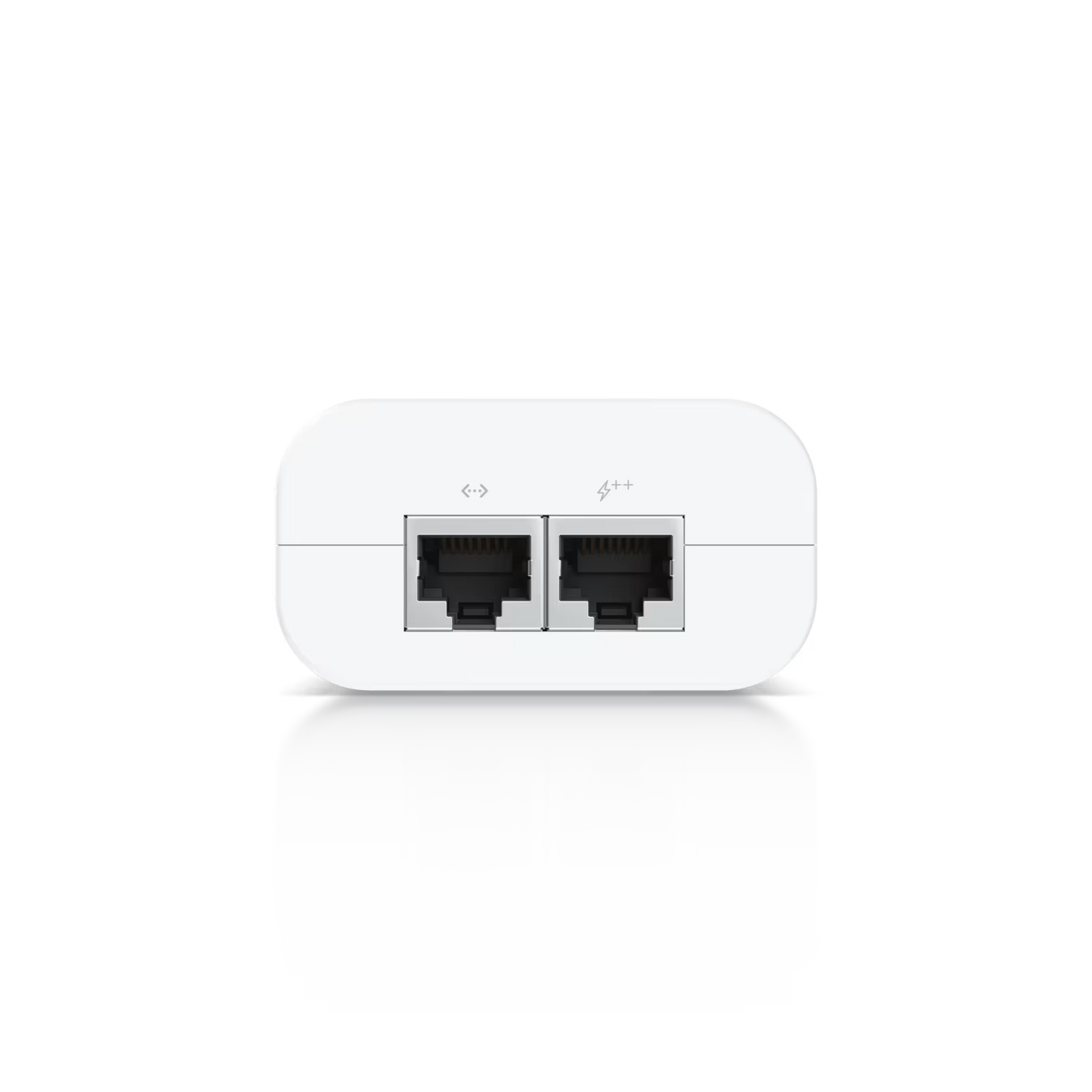

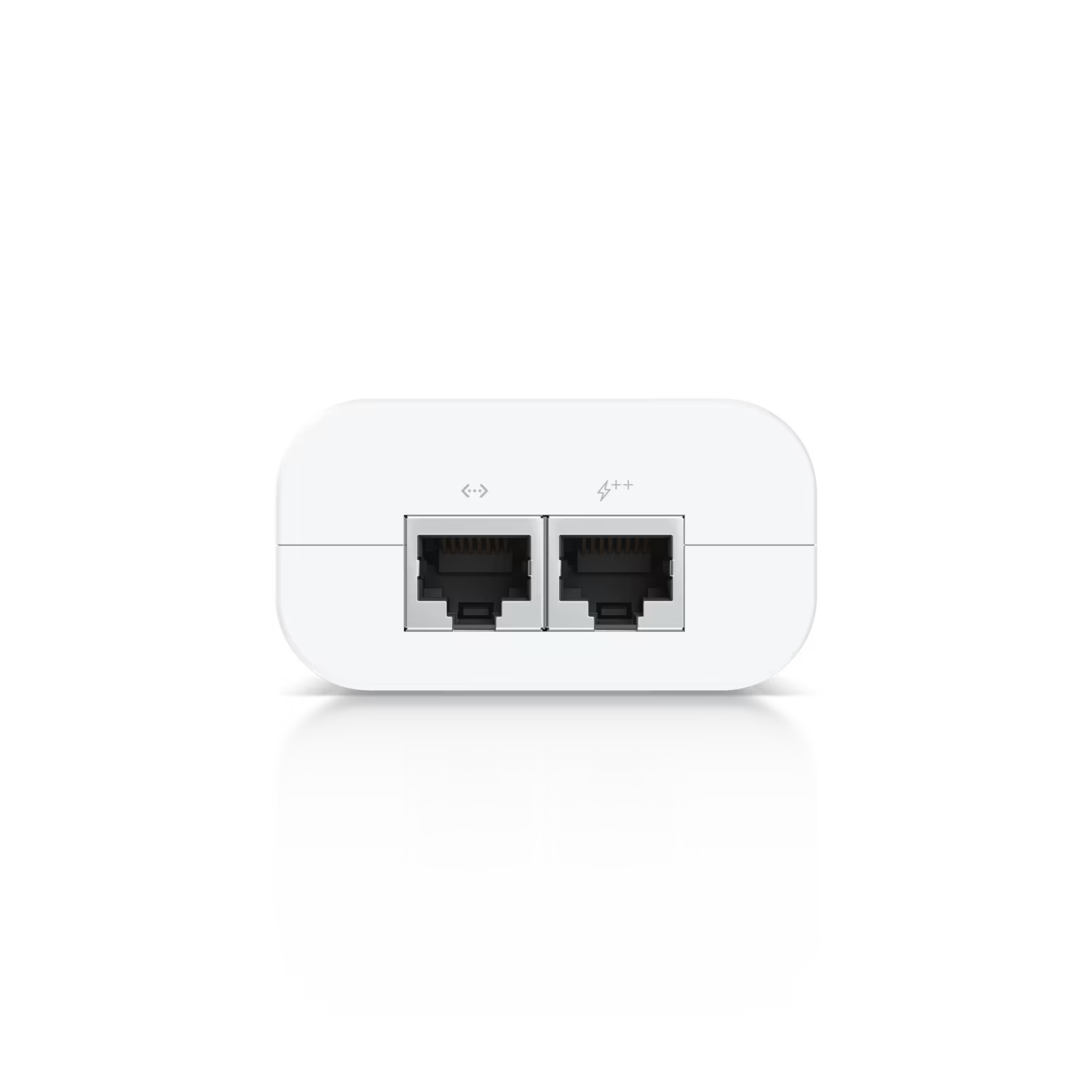

• Data In / PoE: RJ45 Shielded Socket
• Surge Protection: Difference and common mode
• Clamping Protection: 11V data, 60V power
• Max. Surge Discharge: 1500A (8/20 μs) power
• Peak Pulse Current: 36A (10/1000 μs) data
• Shunt Capacitance: <5 pF data
• Response Time: <1 ns
• Power Method: Universal AC input, 100–240V AC, 50/60 Hz
• Power Supply: AC/DC
• Supported Voltage Range: 100–240V AC
• Max. PoE+ Wattage per Port by PSE: 60W
• Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
• Storage Temperature: -30 to 70°C (-22 to 158° F)
• Ambient Operating Humidity: 10 to 95% noncondensing
• Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
