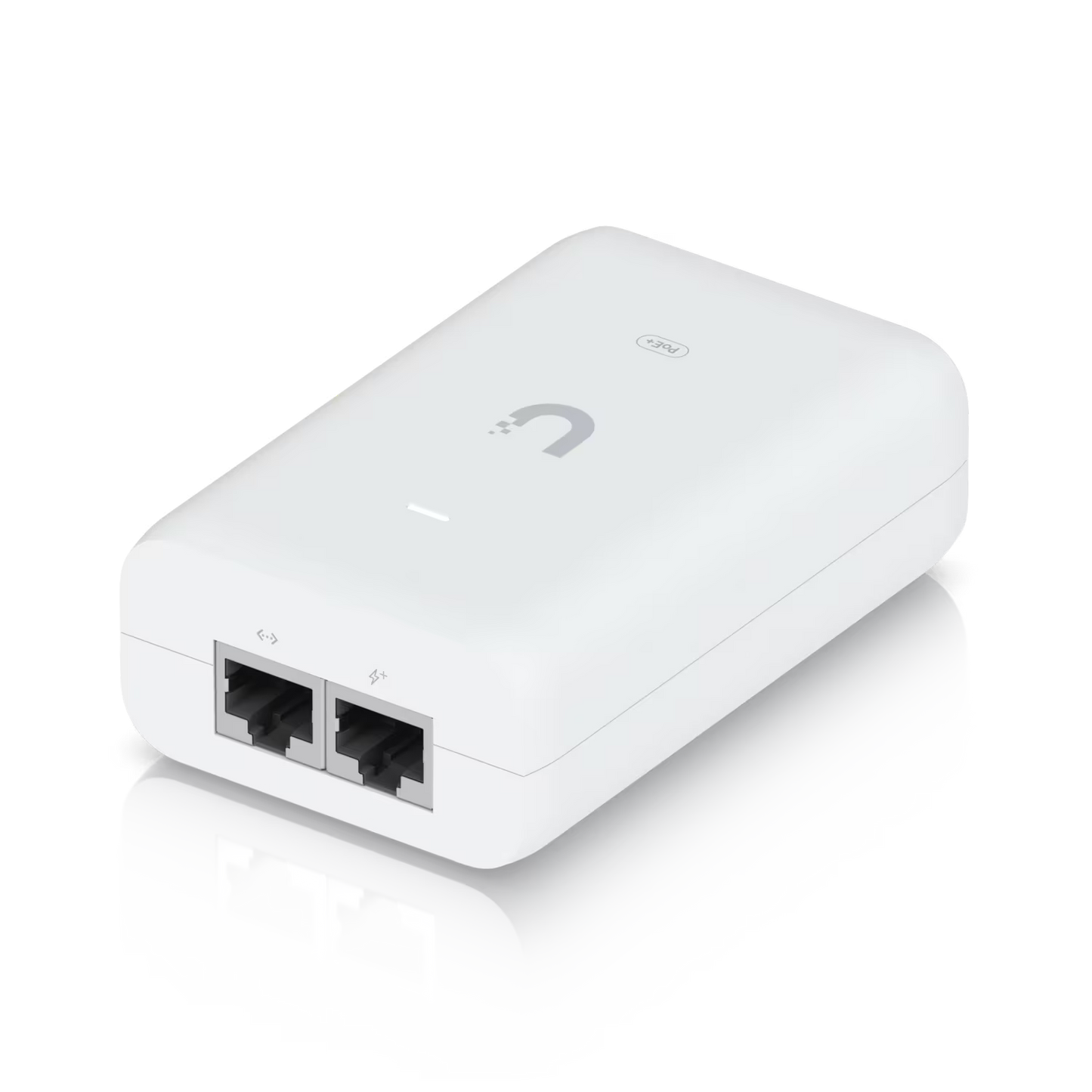

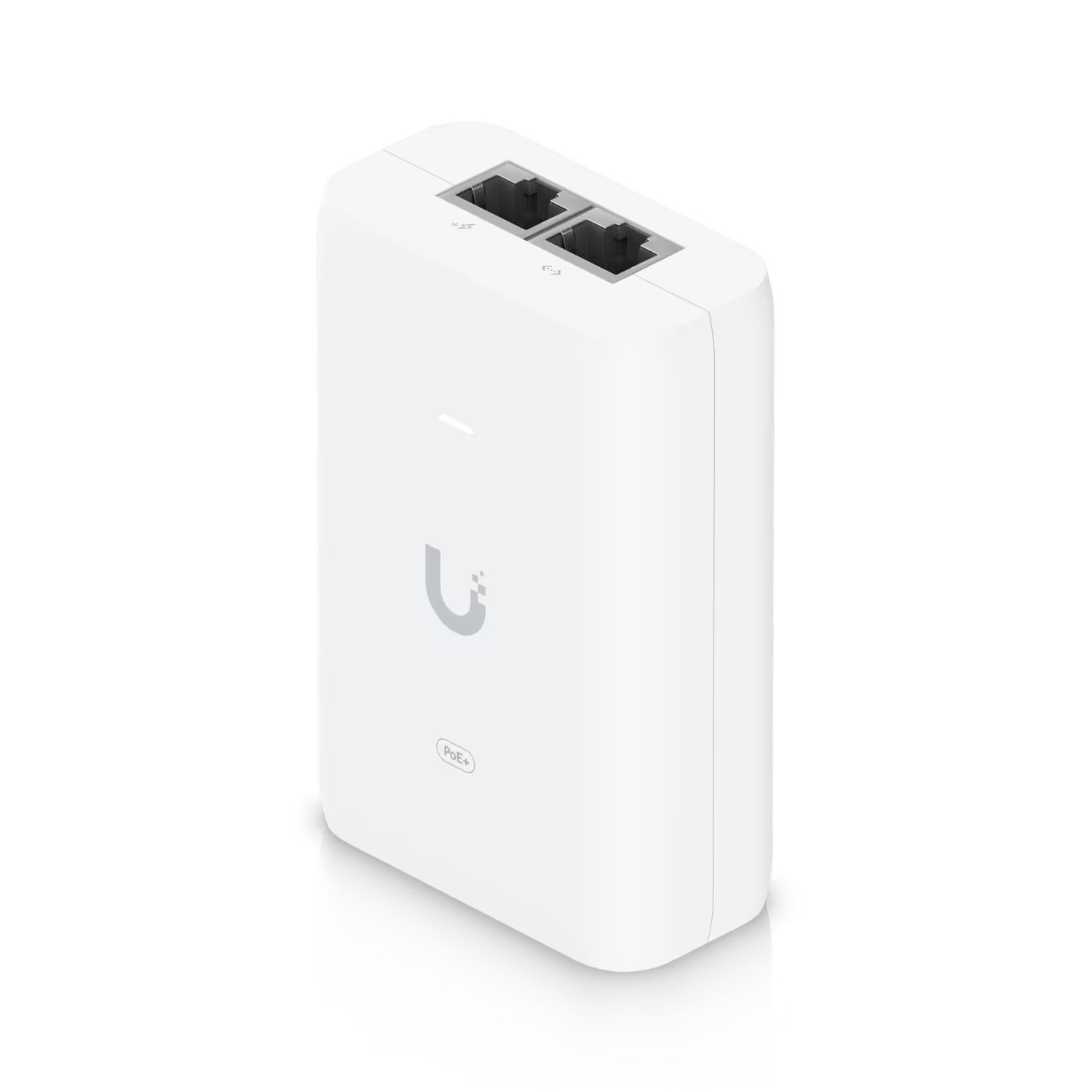

Ubiquiti Gigabit PoE Adapter 48V 30W with No Cable | U-POE+

The Ubiquiti U-POE+ (U-POE-at) is a Gigabit PoE+ adapter designed to deliver up to 30W of power to compatible devices. It enables the powering of UniFi PoE+ devices, such as the U6 LR, U6 Enterprise, and various PoE+ cameras, facilitating wireless mesh applications and reducing reliance on PoE switches. The adapter includes surge, peak pulse, and overcurrent protection to safeguard connected devices. Its compact design, featuring an RJ45 data input and PoE+ output, makes it suitable for various networking environments.

Features

• Delivers up to 30W of PoE+ power
• Provides surge, peak pulse, and overcurrent protection

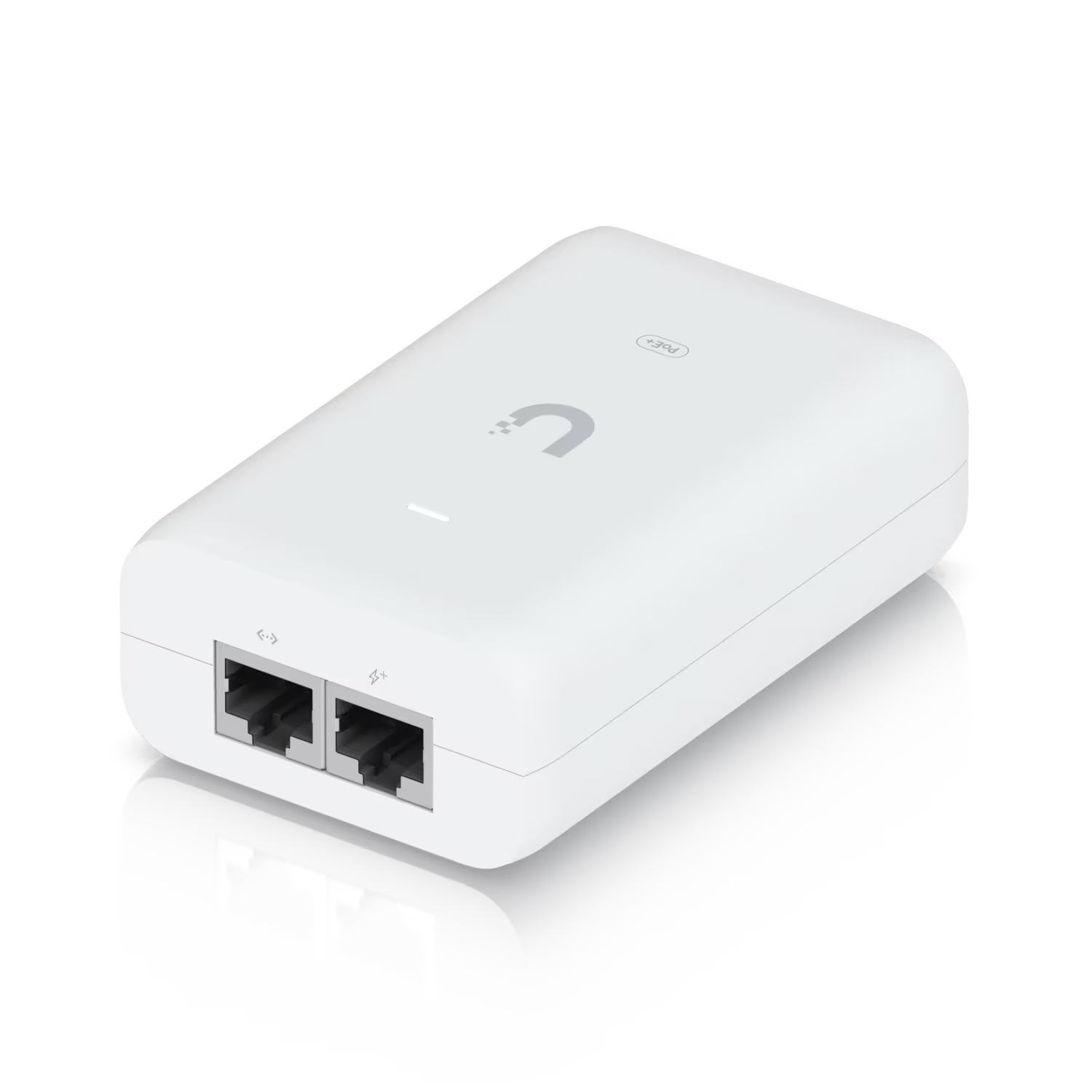

• Equipped with an RJ45 data input and PoE+ output

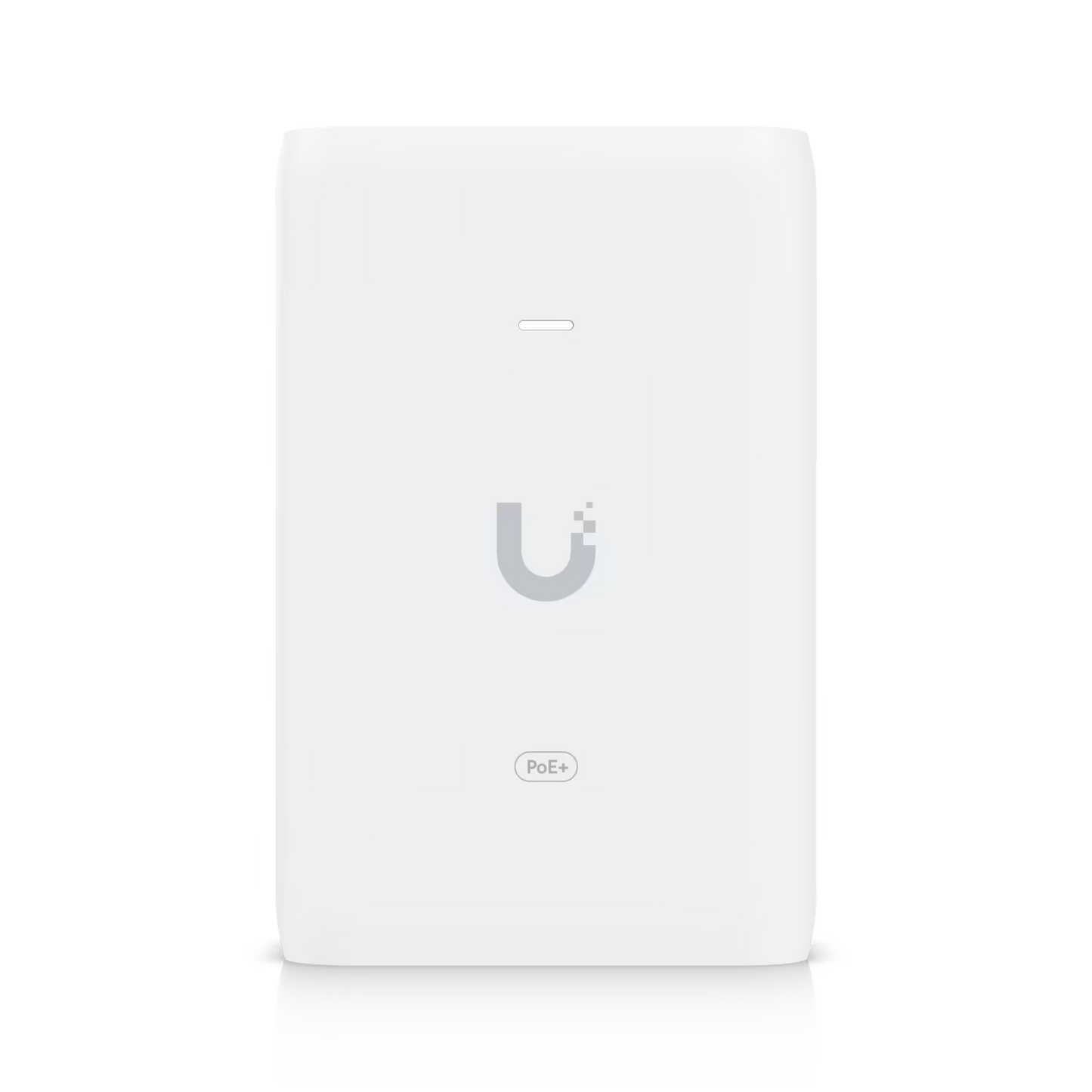

• Includes an LED indicator for status monitoring
• Compatible with devices like U6 LR, U6 Enterprise, and PoE+ cameras
• Compact and easy-to-install design

Specifications

• Model: U-POE-at
• Output Voltage: 48V DC @ 0.65A
• Rated Voltage: 100–240V AC at 50/60Hz
• Input Current: 0.75A Max.
• Inrush Current: <100A peak at 26°C
• Efficiency: 87%
• Output Ripple: 1% Max.
• Switching Frequency: 70 kHz Max.
• Line Regulation: ≤ 3%
• Load Regulation: ≤ 5%
• 2-Pair Powering: Pins 4, 5 (+) and 7, 8 (-)

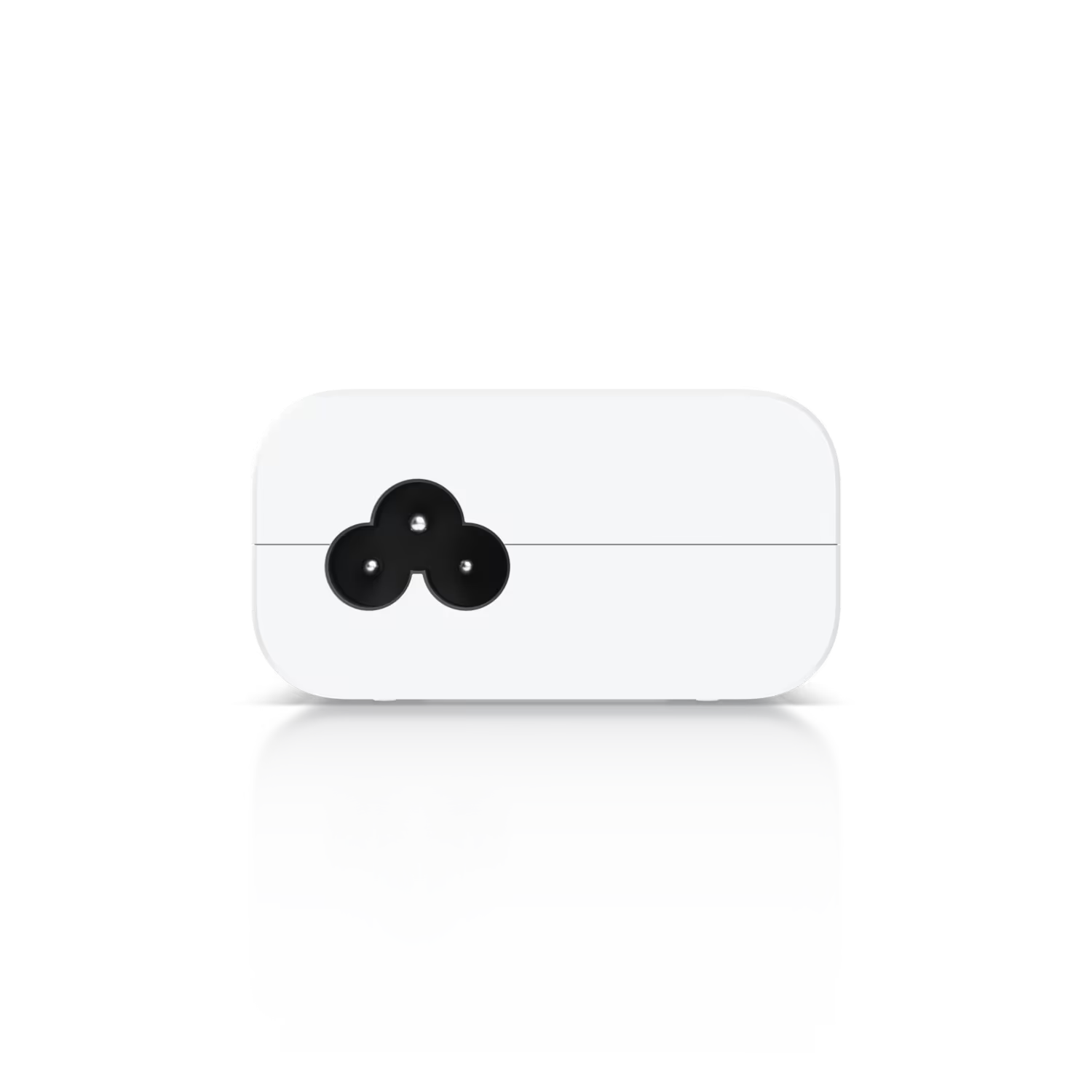

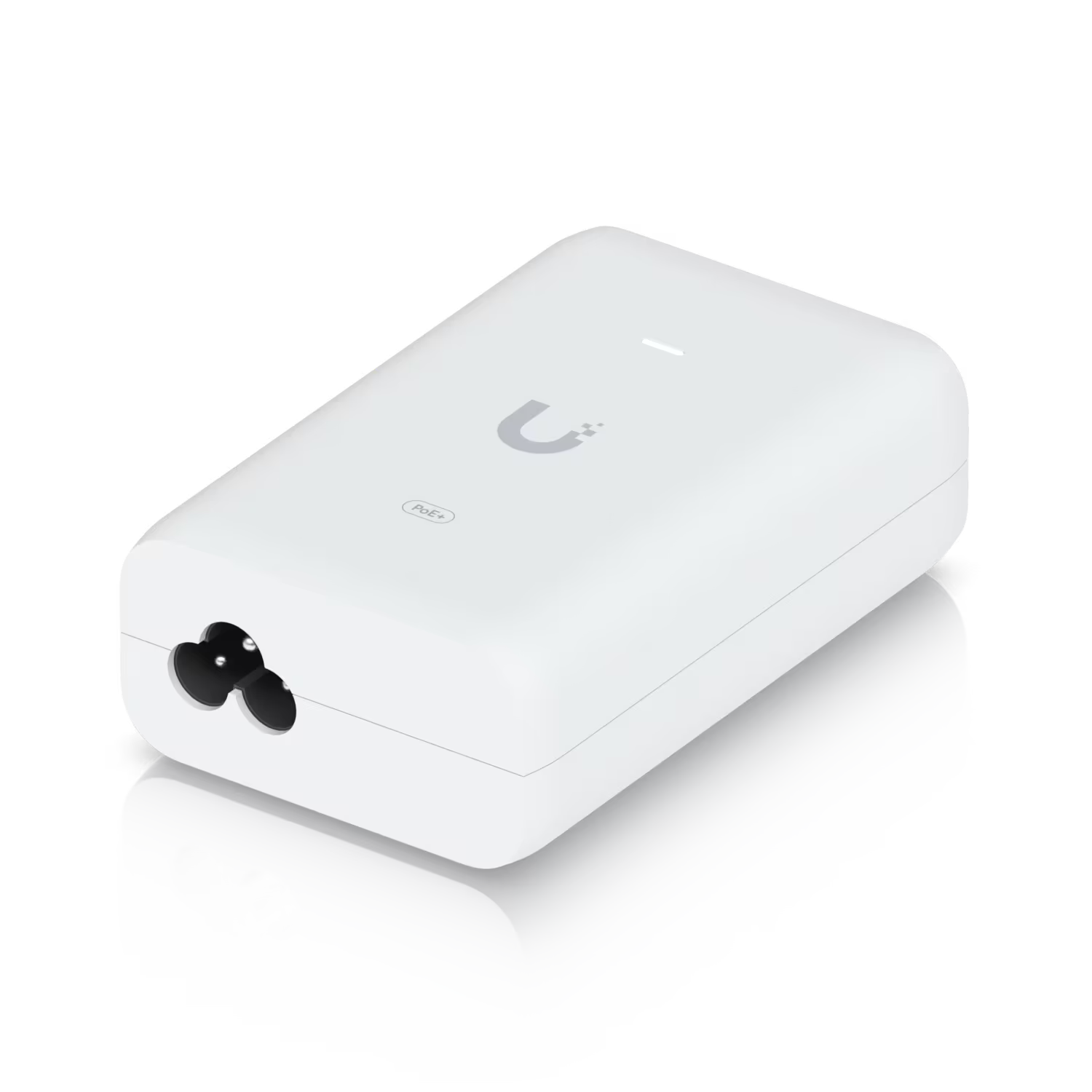

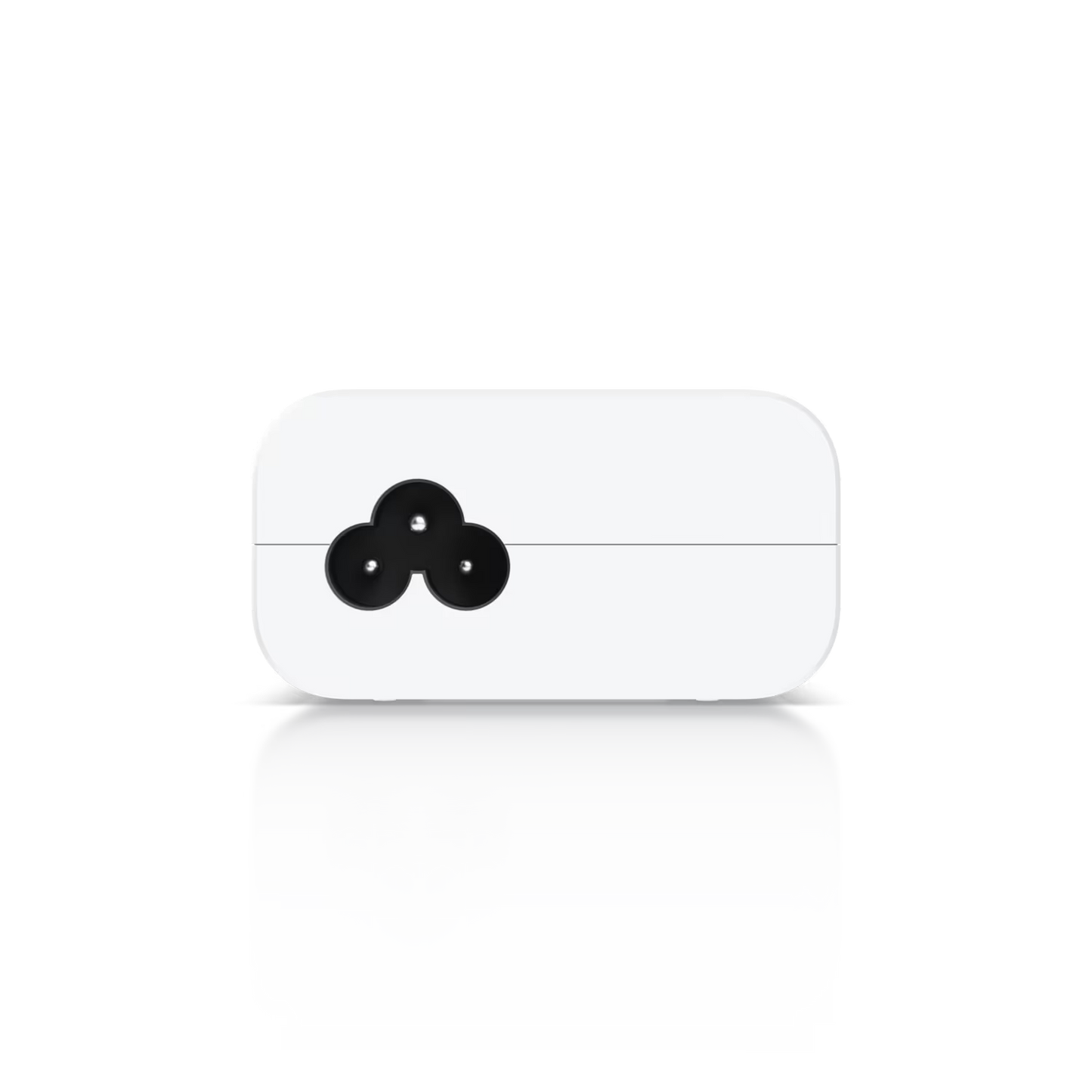

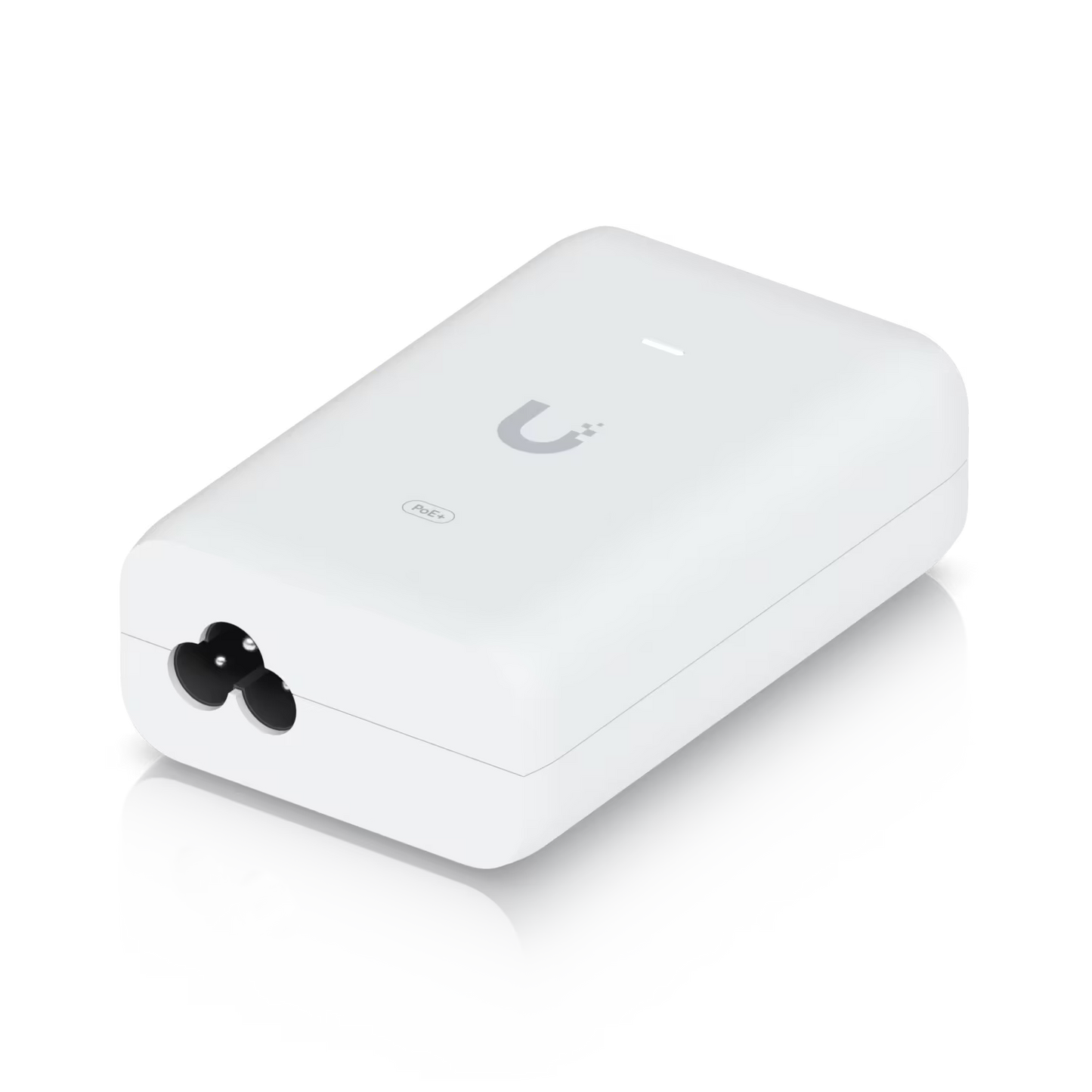

• AC Connector: IEC-320 C6

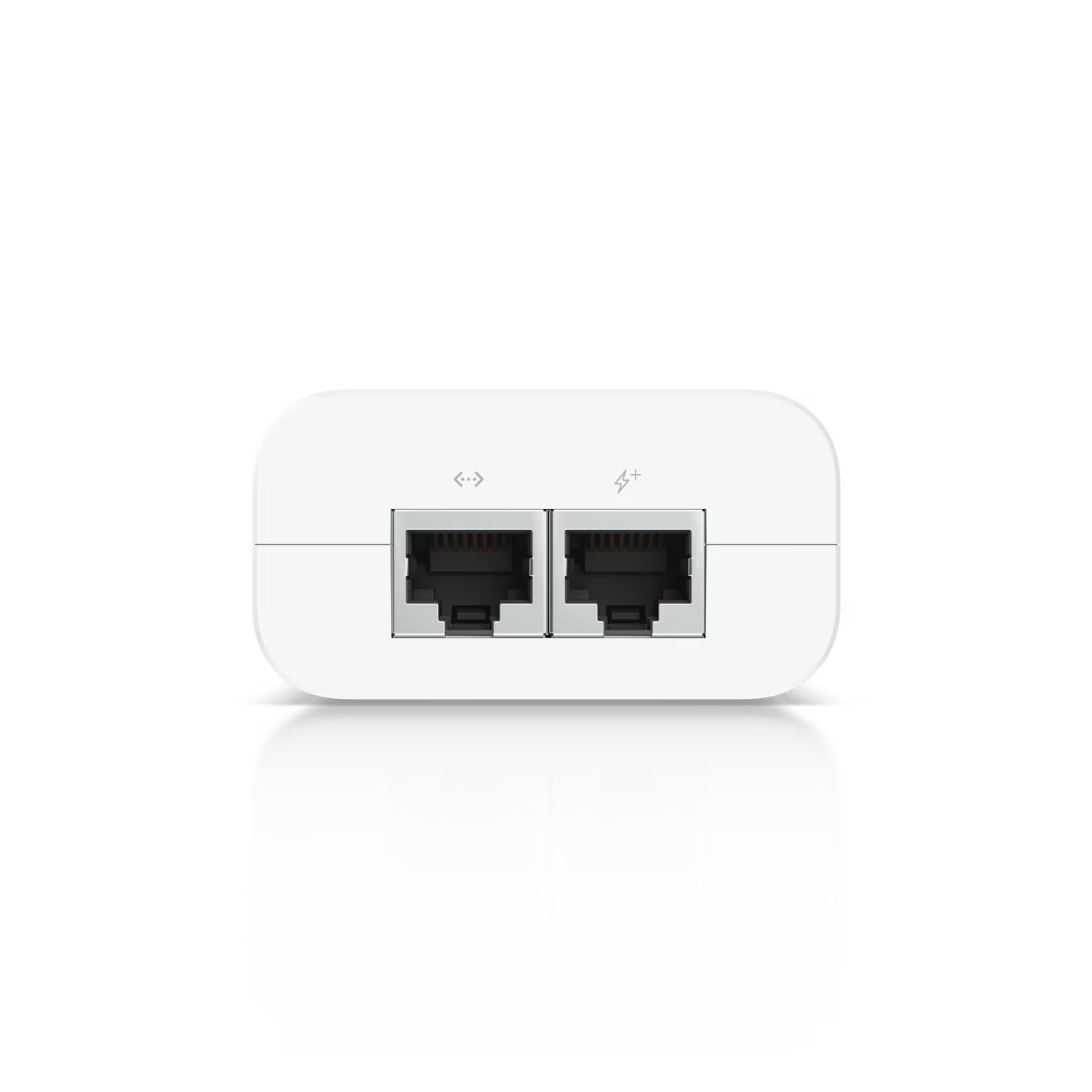

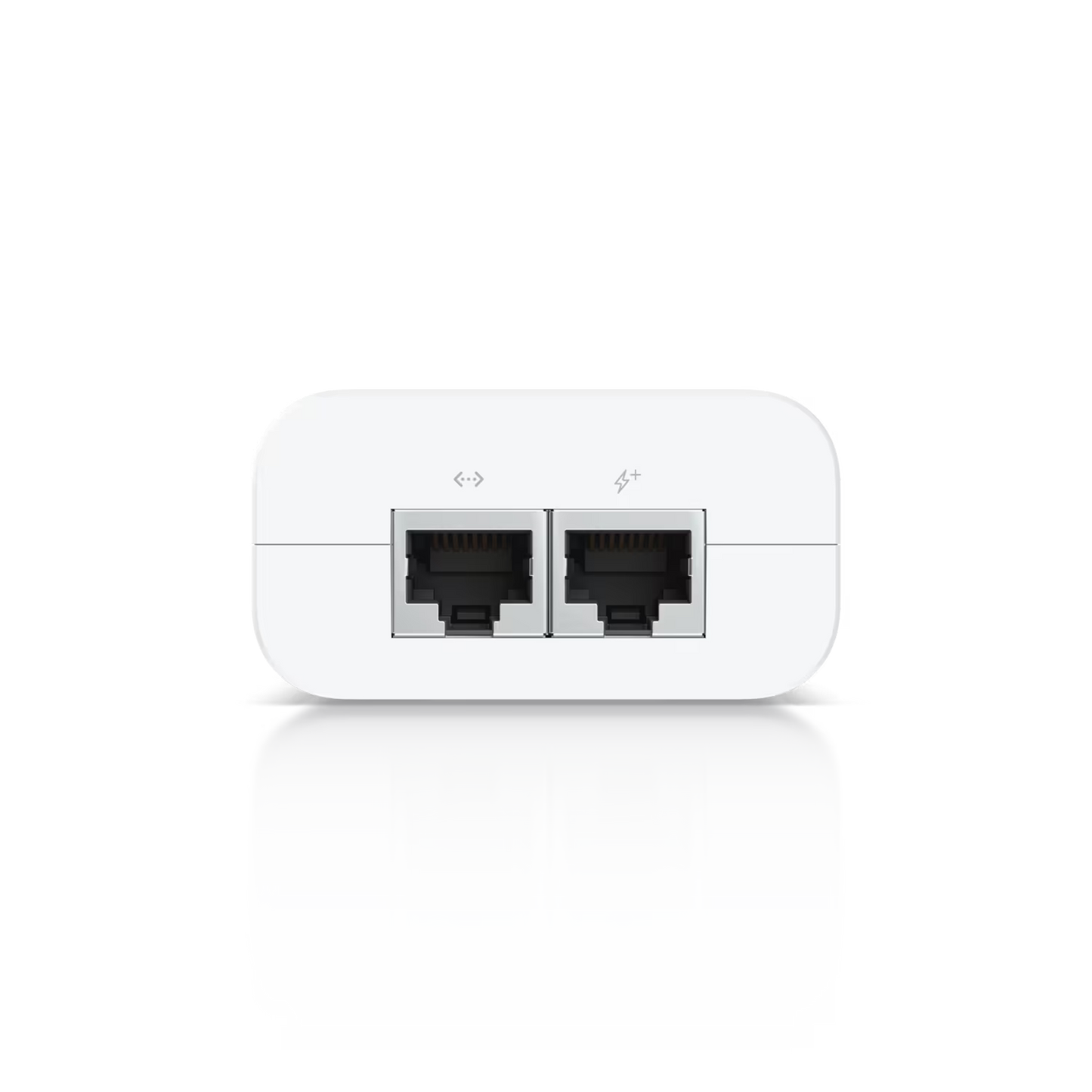

• Data In / PoE: RJ45 Shielded Socket
• Surge Protection: Difference and common mode
• Clamping Protection: 11V Data, 60V Power
• Max. Surge Discharge: 1500A (8/20 μs) Power
• Peak Pulse Current: 36A (10/1000 μs) Data
• Response Time: <1 ns
• Shunt Capacitance: <5 pF Data
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -30 to 70°C (-22 to 158°F)
• Operating Humidity: 35 to 90% noncondensing
• Certifications: CE, FCC, IC, UL, CCC
• NDAA Compliant: Yes
