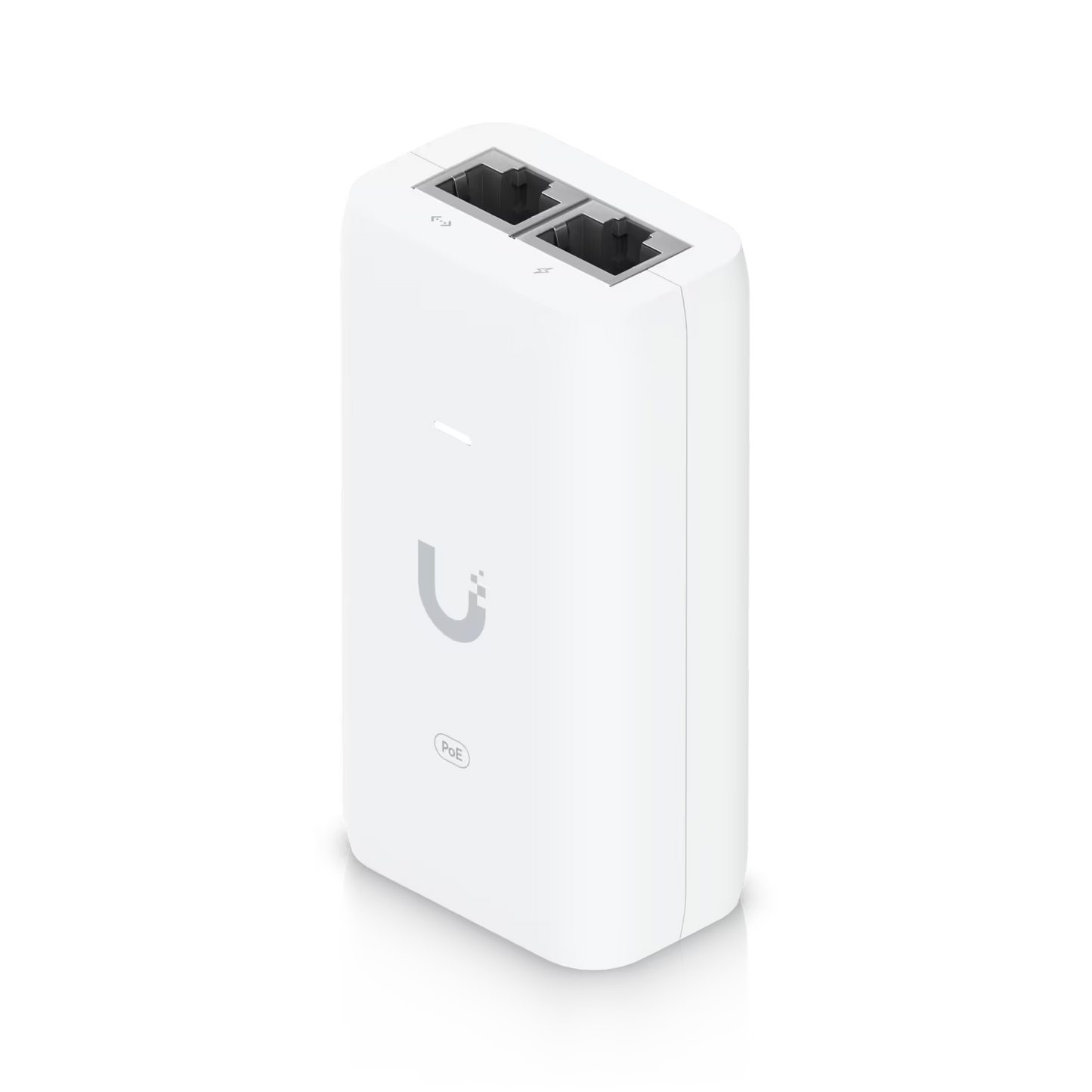

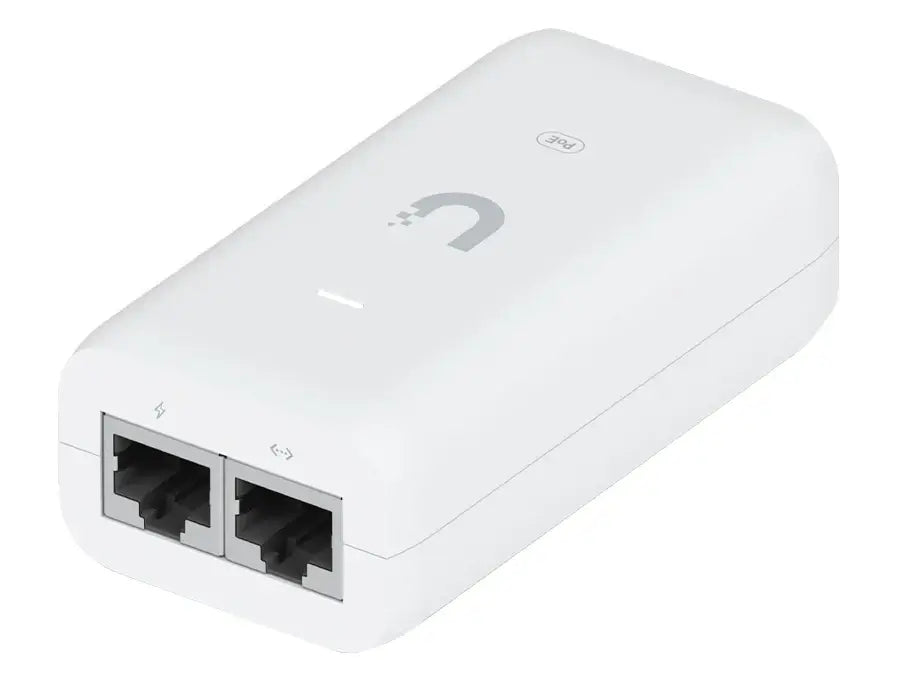

Ubiquiti Gigabit PoE Adapter 48V 15W with No Cable | U-POE

The Ubiquiti U-POE is a compact and efficient Gigabit Power over Ethernet (PoE) adapter designed to deliver up to 15.4W of power to compatible devices. It simplifies network installations by combining data and power over a single Ethernet cable, reducing the need for additional wiring and power sources. Ideal for powering UniFi devices such as access points, cameras, and other PoE-enabled equipment, the U-POE ensures reliable performance with built-in surge, peak pulse, and overcurrent protection.

Features

• Delivers up to 15.4W of PoE power.
• Supports Gigabit Ethernet connectivity.
• Built-in surge, peak pulse, and overcurrent protection.
• Compact and lightweight design for easy installation.
• Compatible with a wide range of UniFi devices.
• Includes RJ45 data input and PoE output ports.

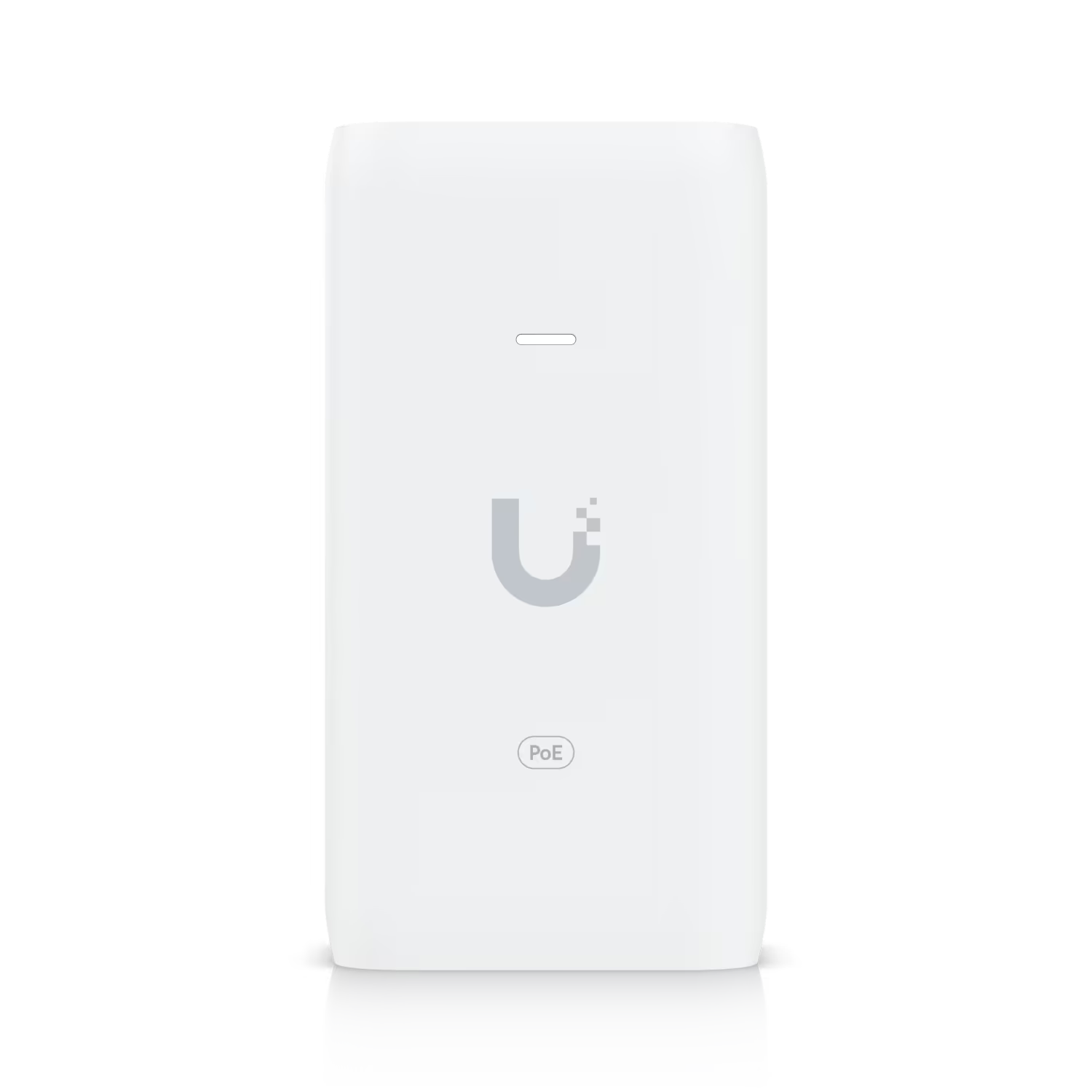

• LED indicator for status monitoring.
• Compliant with CE, FCC, IC, UL, and CCC certifications.

Specifications

• Output Voltage: 48V DC @ 0.32A
• Rated Voltage: 100–240V AC @ 50/60Hz
• Input Current: 500mA Max.
• Efficiency: 84.25+%
• Switching Frequency: 65 kHz
• Output Ripple: 200mV p-p
• Line Regulation: ≤ 3%
• Load Regulation: ≤ 5%
• 2-Pair Powering: Pins 4, 5 (+) and 7, 8 (-)

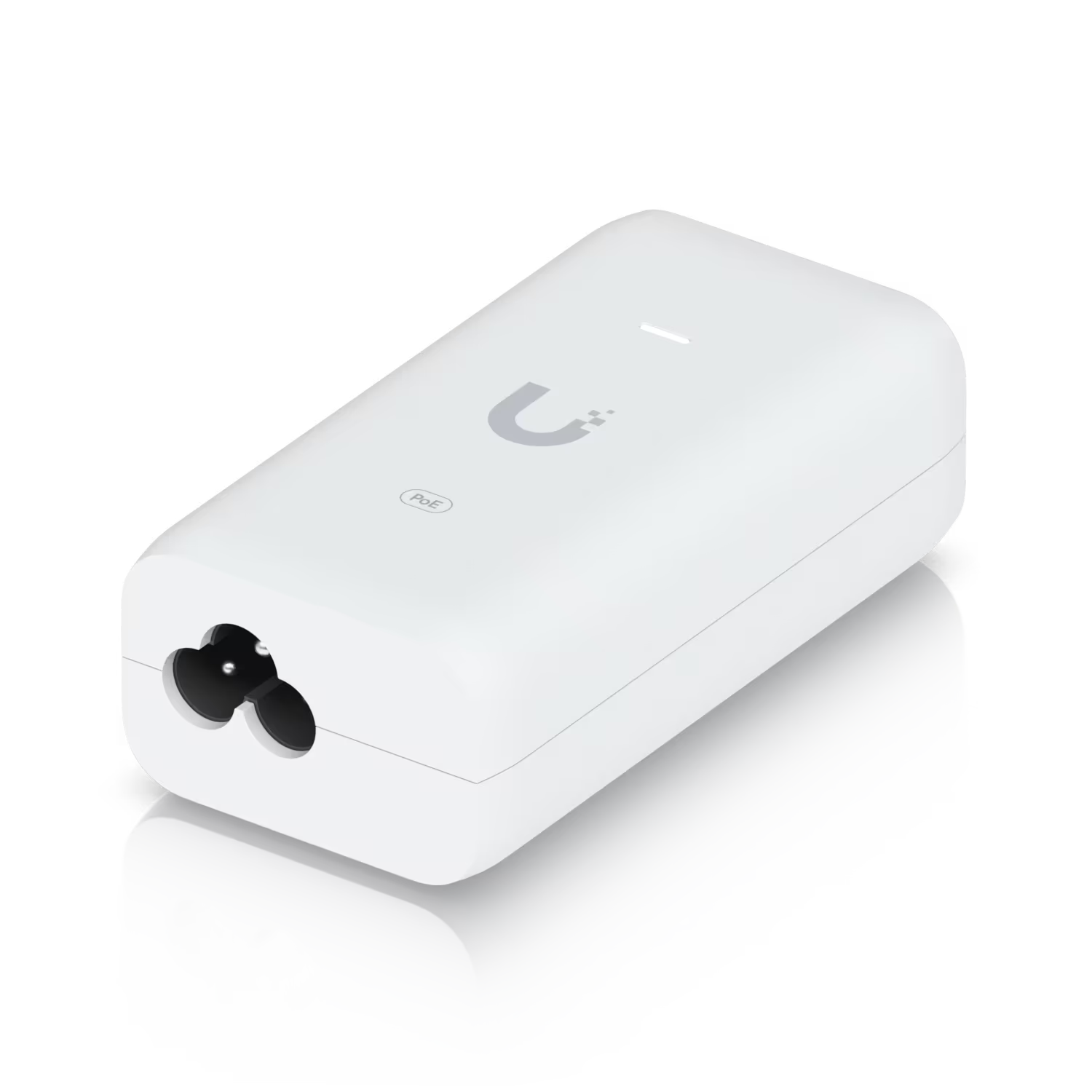

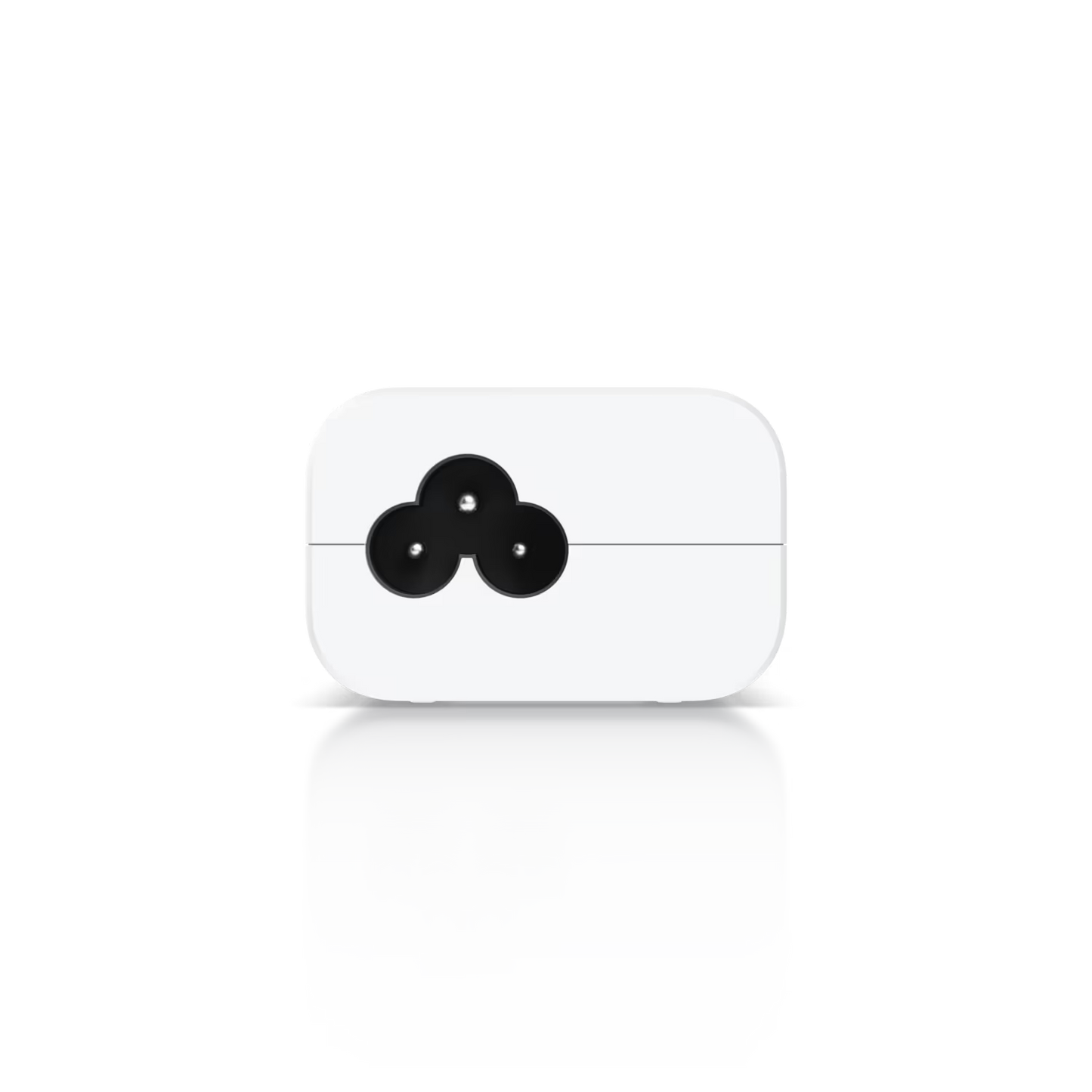

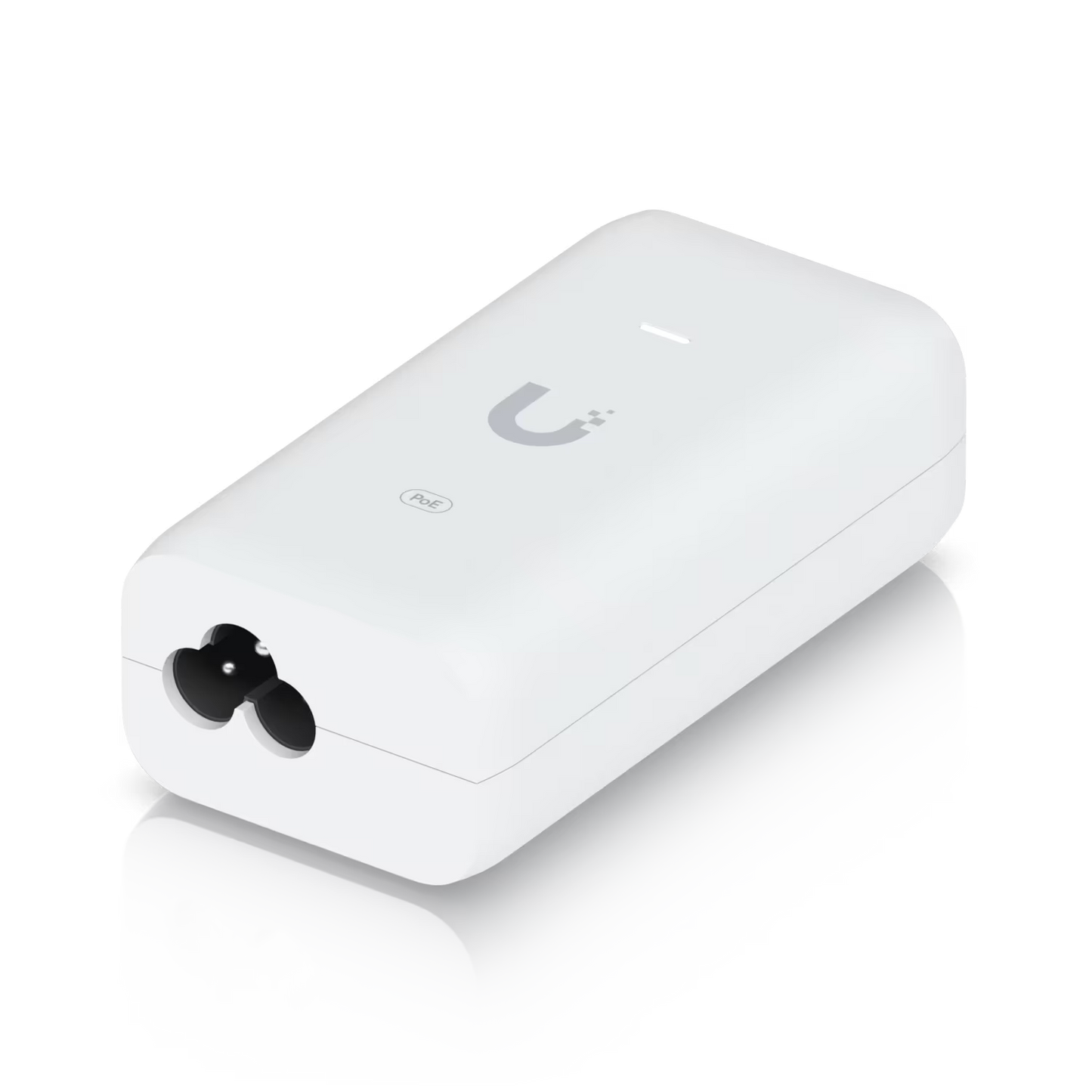

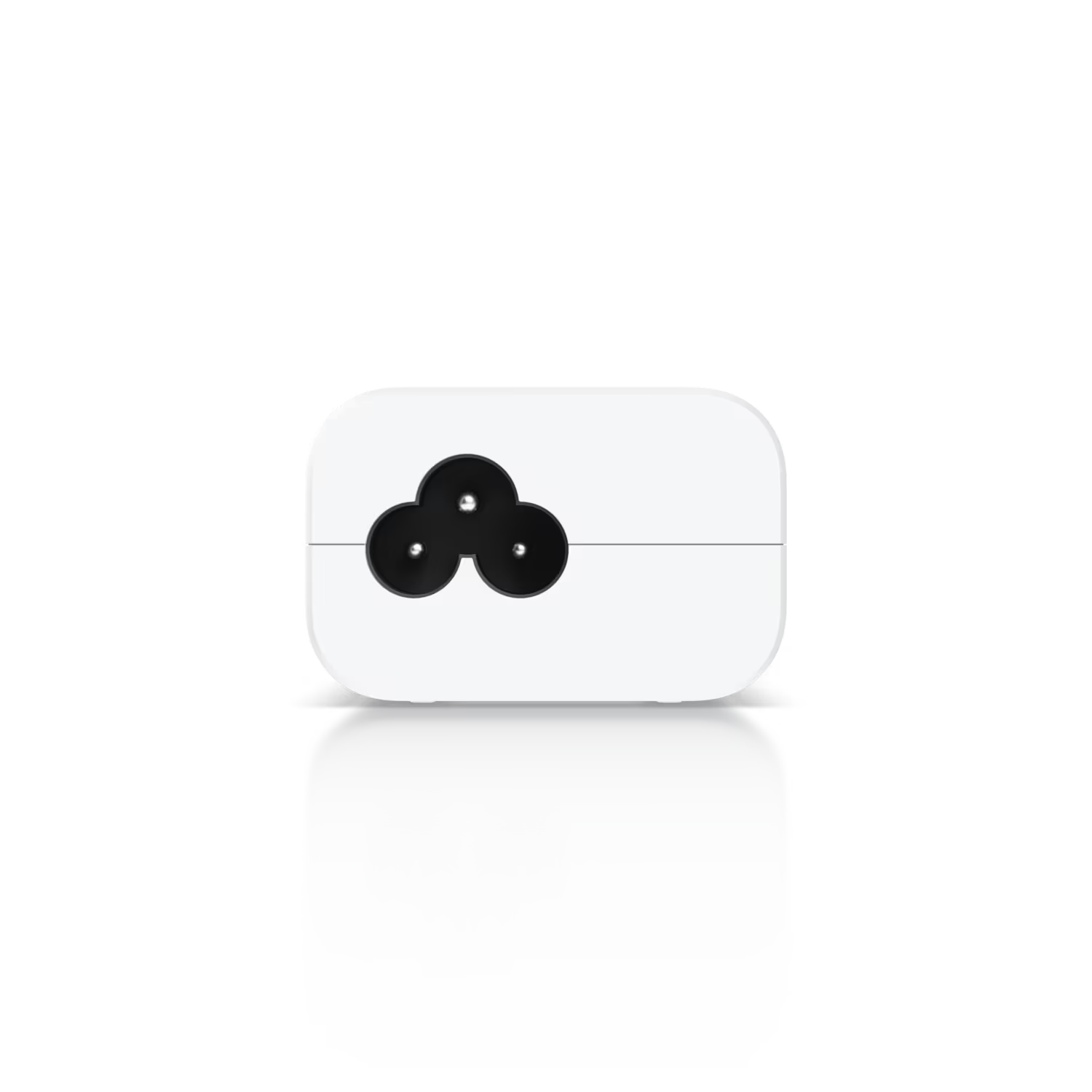

• AC Connector: IEC-320 C6

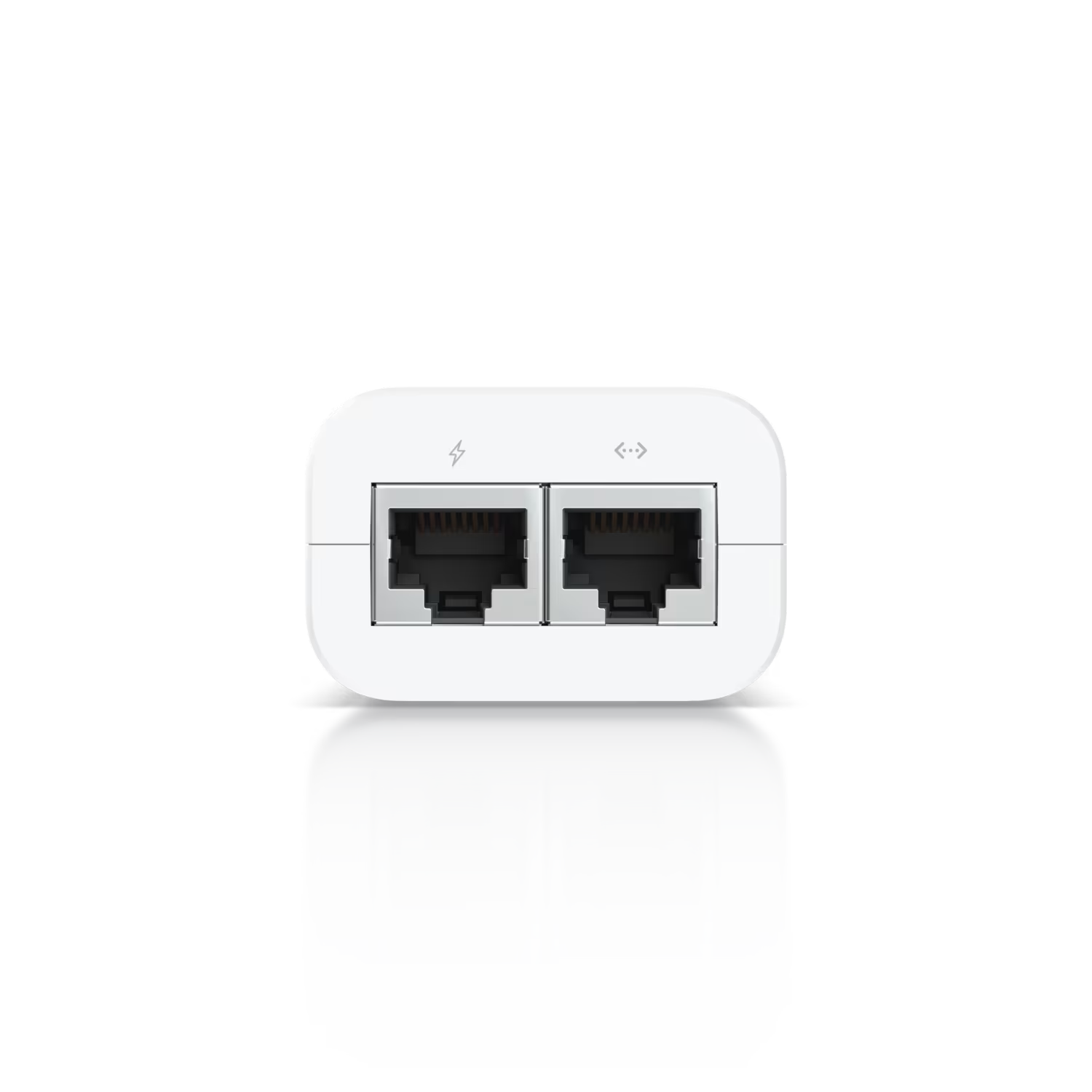

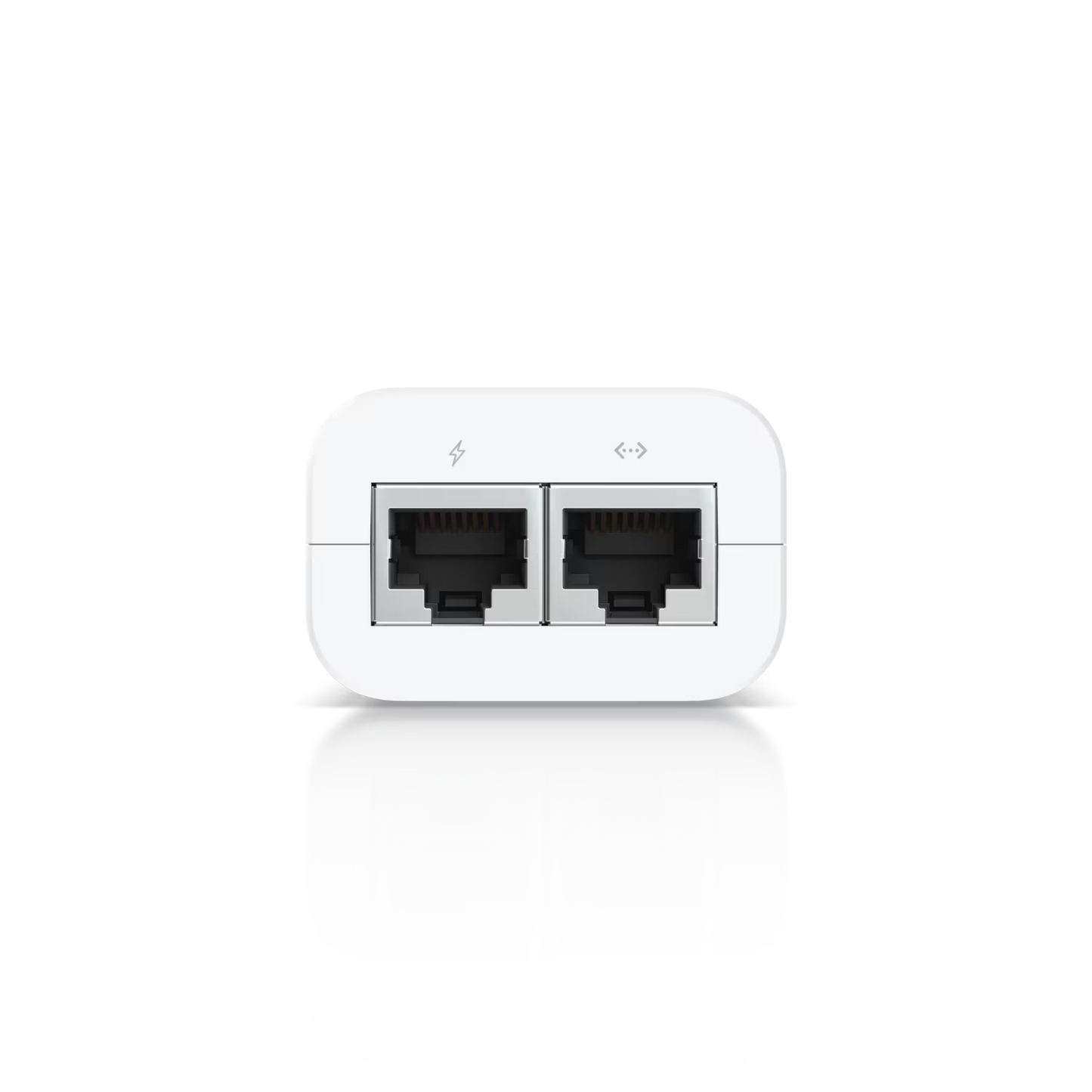

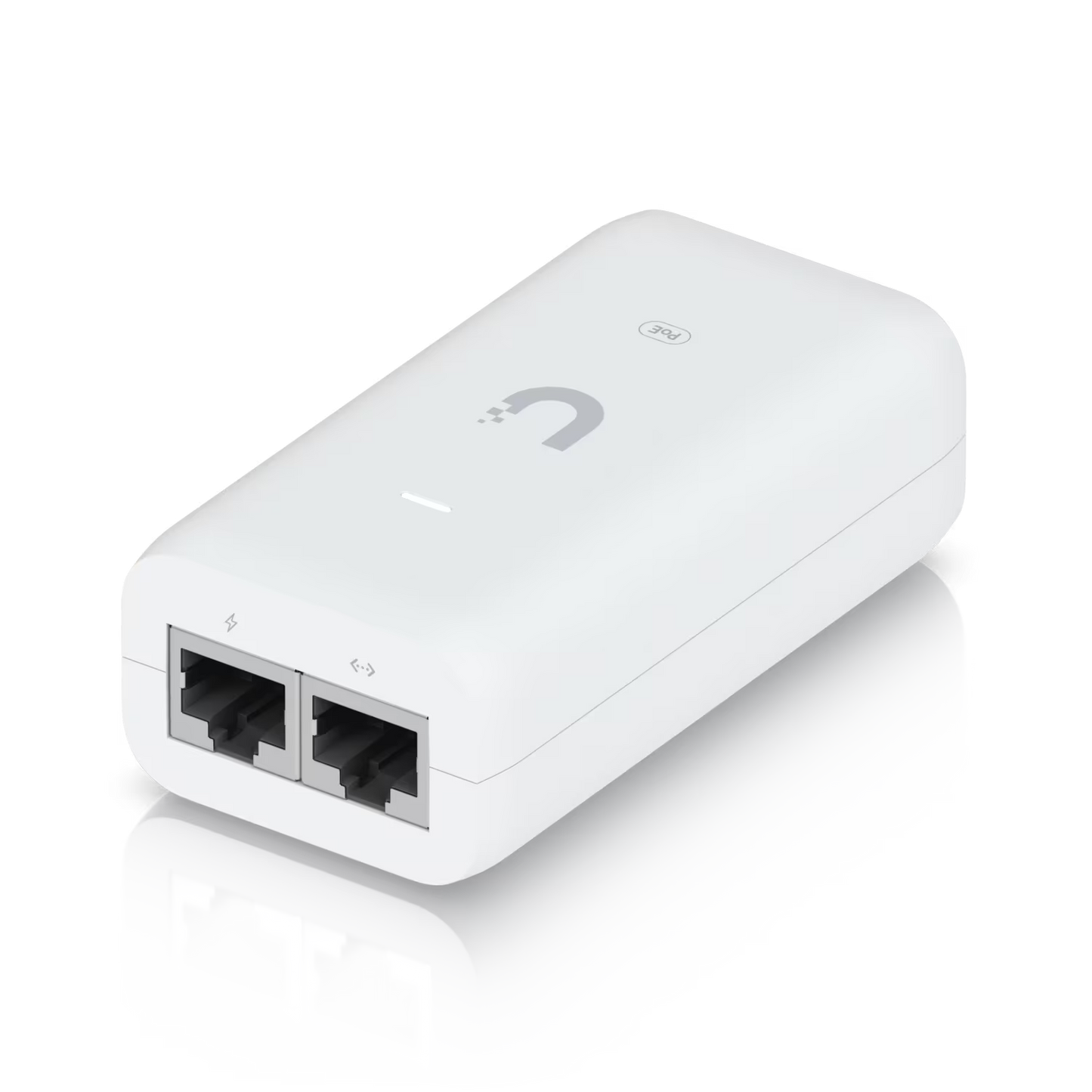

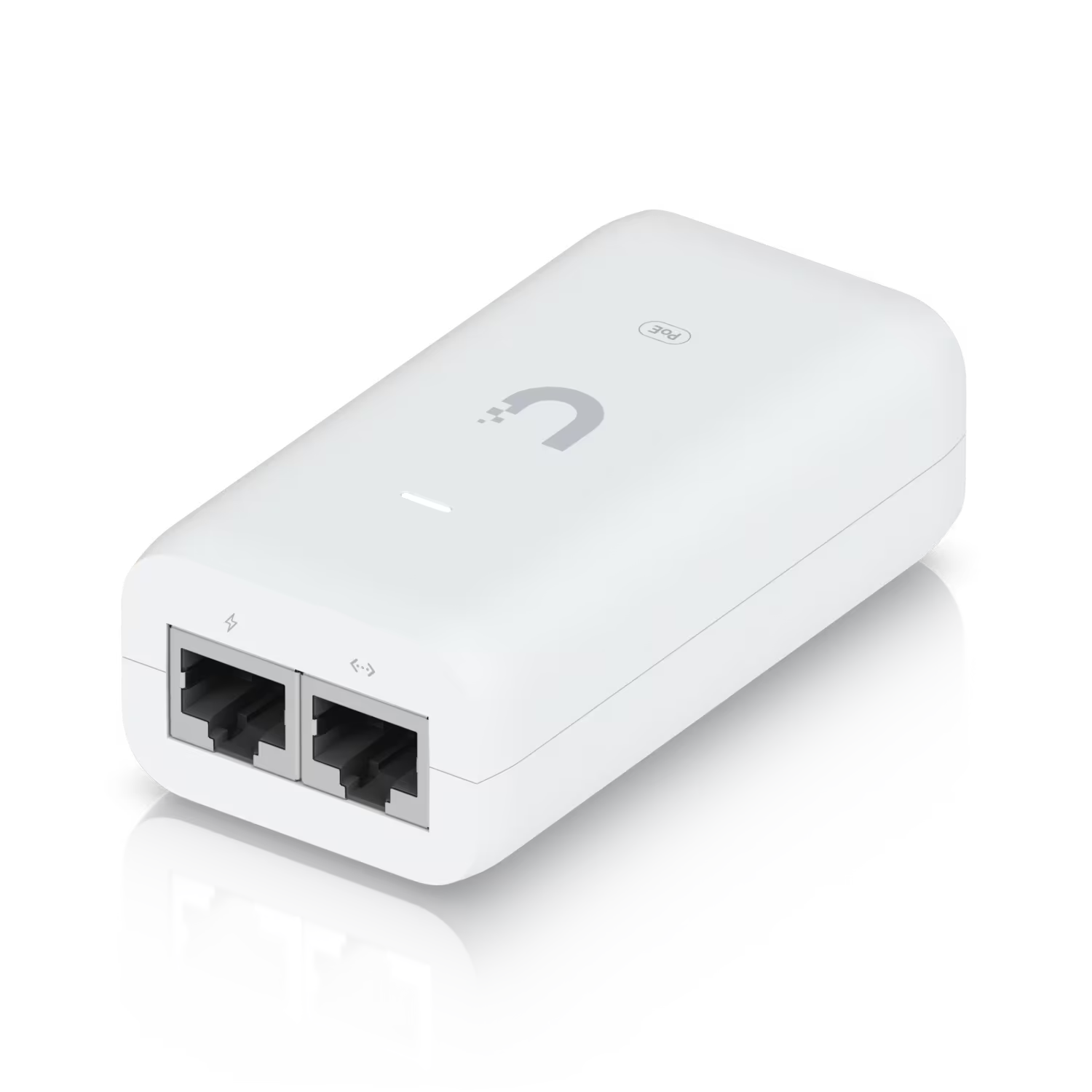

• Data In / PoE: RJ45 Shielded Socket
• Surge Protection: Difference and common mode
• Clamping Protection: 11V Data, 60V Power
• Max. Surge Discharge: 1500A (8/20 μs) power
• Peak Pulse Current: 36A (10/1000 μs) data
• Response Time: <1 ns
• Shunt Capacitance: <5 pF data
• Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity: 10 to 95% noncondensing
• Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)
• NDAA Compliant: Yes

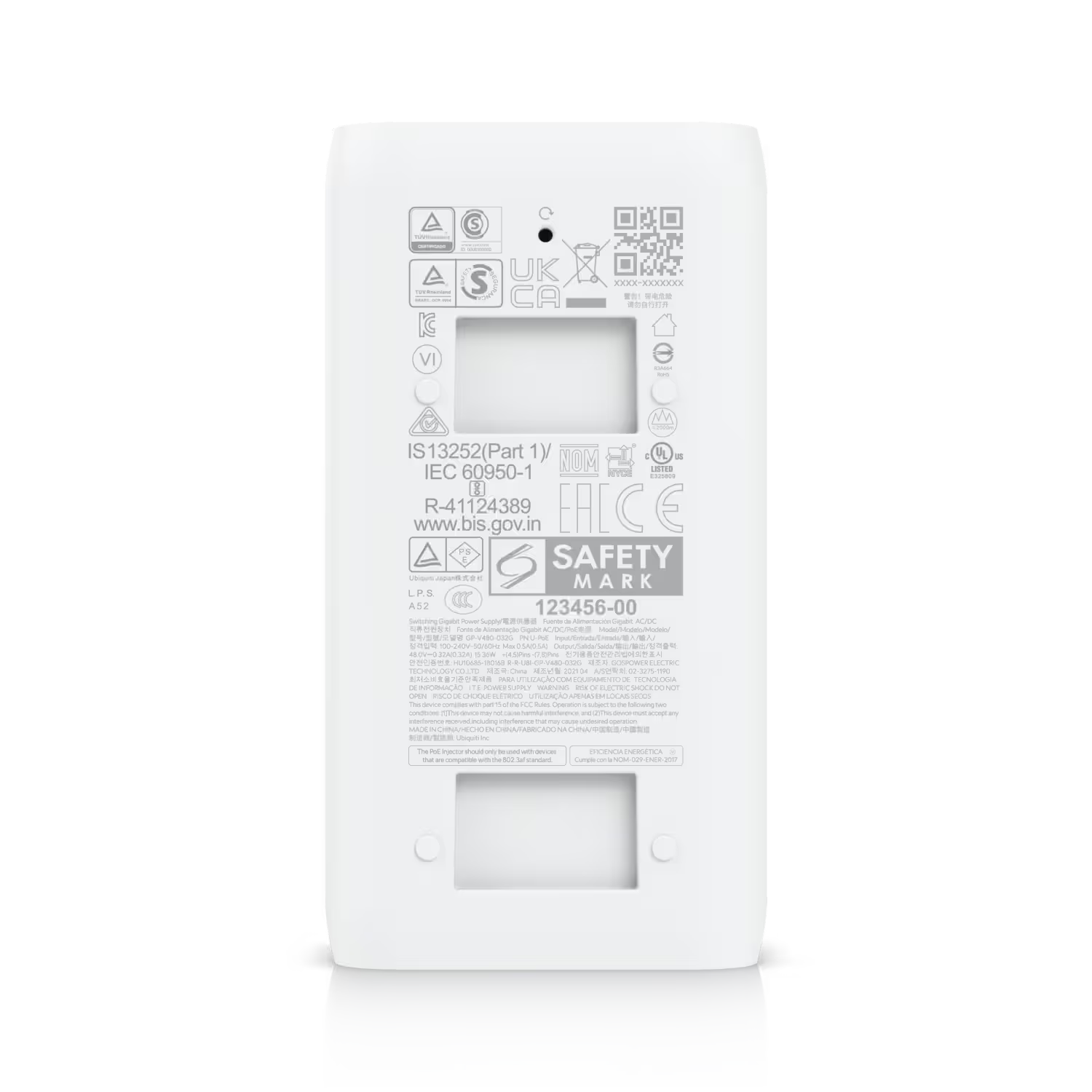

• Certifications: CE, FCC, IC, UL, CCC
