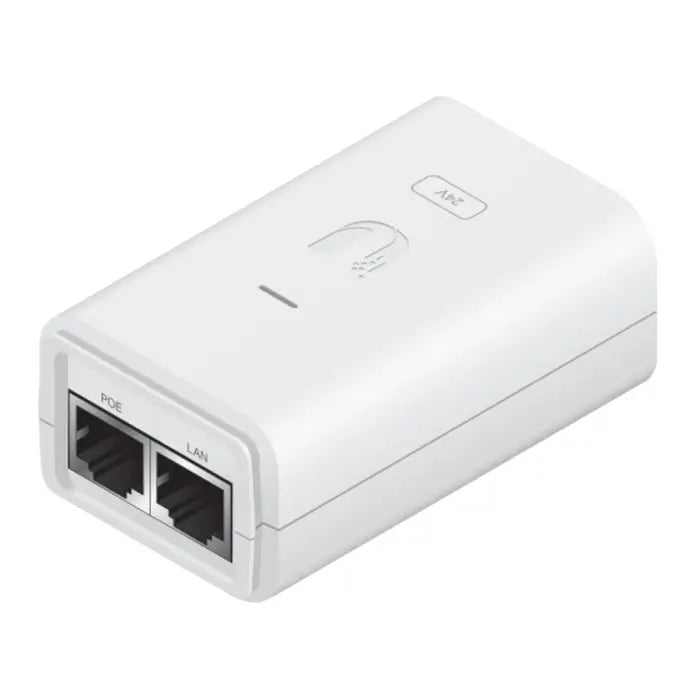

Ubiquiti Gigabit PoE Adapter 24V 24W with No Cable | POE-24-24W-WH

The Ubiquiti POE-24-24W-WH is a reliable 24V, 24W Power over Ethernet (PoE) adapter designed to efficiently power various Ubiquiti devices, including those in the airFiber, airMAX, airVision, UniFi, and mFi series. This adapter ensures stable power delivery while providing essential protection against electrical surges and electrostatic discharge (ESD). Its compact design and integrated features make it suitable for both indoor and outdoor installations, offering flexibility in network deployments.

Features

• Provides 24V DC at 1.0A output
• Compatible with Ubiquiti's airFiber, airMAX, airVision, UniFi, and mFi series
• Offers surge protection and clamping protection
• Includes remote reset capability with a reset button
• Equipped with an AC cable featuring earth grounding
• Compact and lightweight design for easy installation

Specifications

• Output Voltage: 24V DC at 1.0A
• Input Voltage: 100-240V AC at 50/60Hz
• Input Current: 0.6A at 120V AC, 0.4A at 240V AC
• Inrush Current: <60A peak at 120V AC, <120A peak at 230V AC
• Efficiency: 80% or higher
• Output Ripple: 1% maximum
• Switching Frequency: 65 kHz
• Line Regulation: ≤ 3%
• Load Regulation: ≤ 5%
• 2-Pair Powering: Pins 4, 5 (+) and pins 7, 8 (-)
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -30 to 70°C (-22 to 158°F)
• Operating Humidity: 35 to 95% non-condensing
• AC Connector: IEC-320 C6
• Data IN/PoE: RJ45 shielded socket
• Surge Protection: Difference and common mode
• Clamping Protection: 11V data, 60V power
• Max. Surge Discharge: 1500A (8/20 μs) power
• Peak Pulse Current: 36A (10/1000 μs) data
• Shunt Capacitance: <5 pF data
• Response Time: <1 ns
• Certifications: CE, FCC, IC, UL
