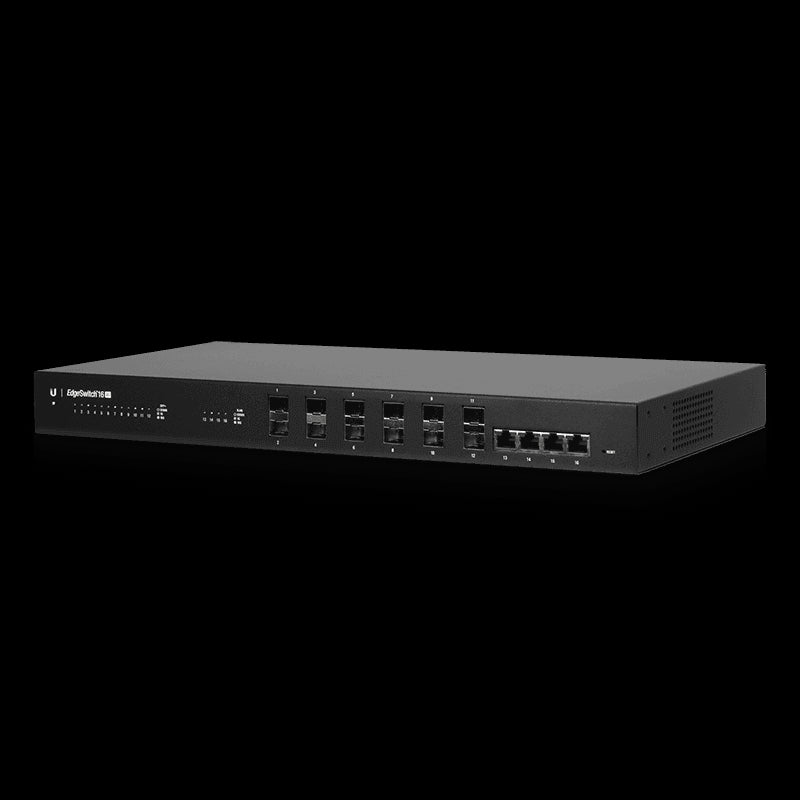

The Ubiquiti EdgeSwitch 16-Port (model ES-16-XG) is a powerful managed aggregation switch designed to enhance network capacity and provide high-bandwidth services for growing networks. With 12 SFP+ ports for fiber connectivity and 4 RJ45 ports for copper connections, this switch delivers maximum performance and low latency, supporting a total non-blocking throughput of 160 Gbps.

Features

• High Performance: The EdgeSwitch XG supports non-blocking throughput of up to 160 Gbps, ensuring that all ports can process traffic simultaneously without packet loss.
• Versatile Connectivity: Equipped with 12 SFP+ ports for 10G fiber connections and 4 RJ45 ports supporting 10GBASE-T, it allows flexible network configurations.
• Advanced Management: The browser-based configuration interface provides intuitive control, while the Ubiquiti Network Management System (UNMS) offers comprehensive management across multiple networks.
• Robust Layer-2 and Layer-3 Features: Supports advanced switching features including VLANs, link aggregation, and static routing, making it suitable for complex network environments.
• Rack-Mountable Design: The switch is designed to fit in a standard 1U rack space, with included rack-mount brackets for easy installation.
• Power Redundancy: Offers options for both AC and DC power inputs, ensuring reliable operation in various environments.

Specifications

• Model: ES-16-XG
• Total Non-Blocking Throughput: 160 Gbps
• Switching Capacity: 320 Gbps
• Forwarding Rate: 238.10 Mpps
• Ports: 12 x SFP+ (10G), 4 x RJ45 (10G)
• Management Interface: 1 x RJ45 Serial Console Port
• Power Consumption: Max 36W (Excludes SFP/SFP+ Modules)
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 5 to 95% Noncondensing
• Dimensions: 443 x 221 x 43 mm (17.44 x 8.70 x 1.69 inches)
• Weight: 2.71 kg (5.97 lb) with rack-mount brackets
