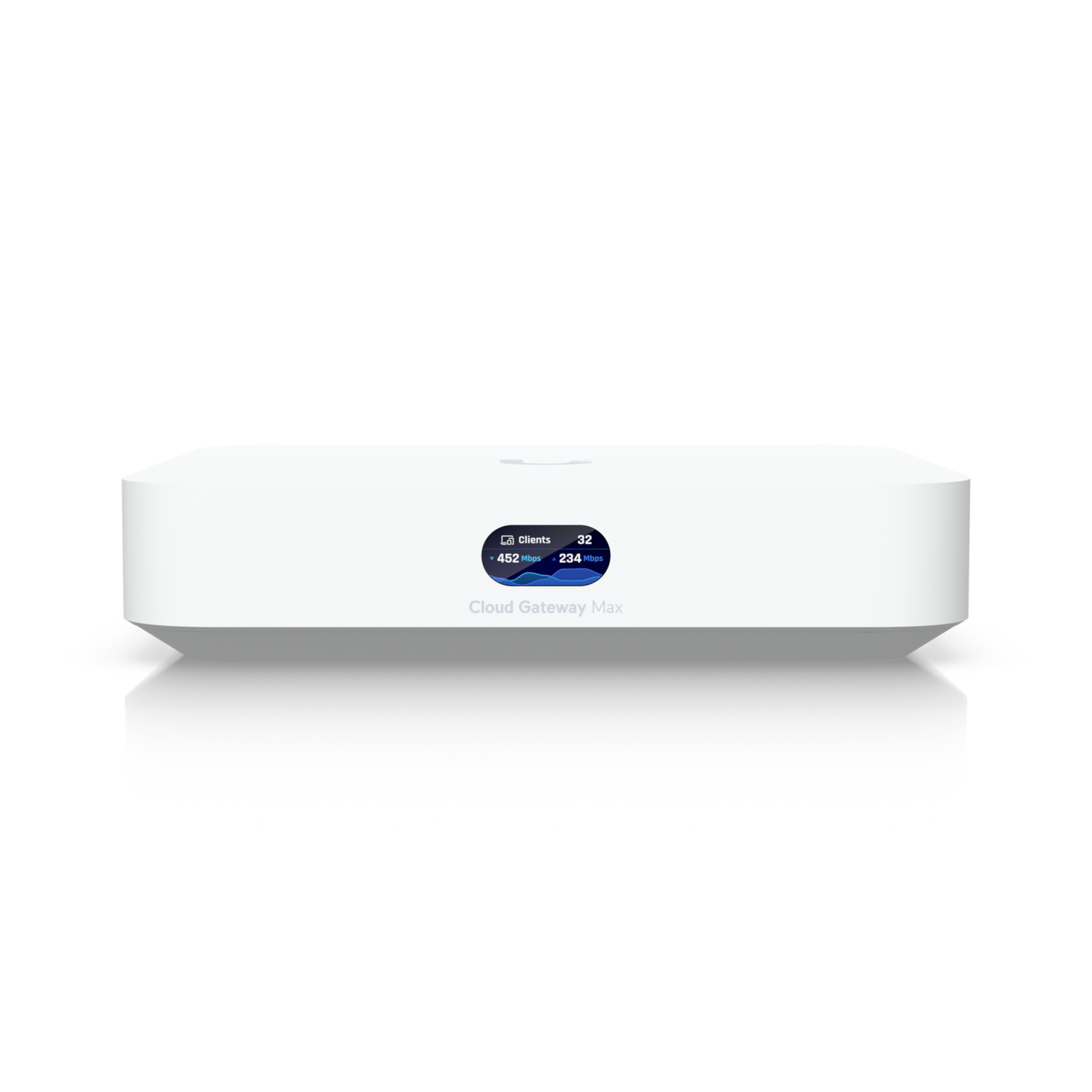

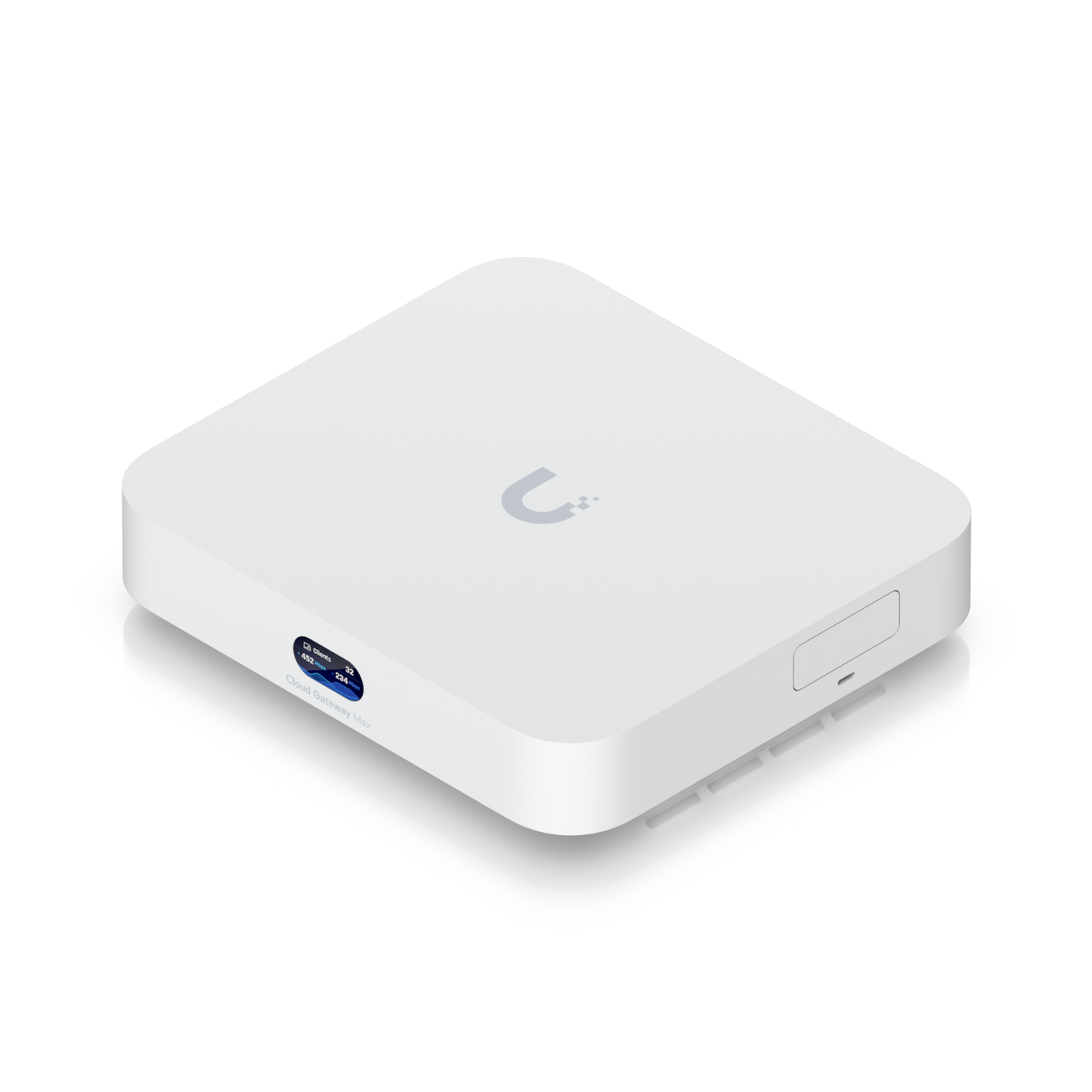

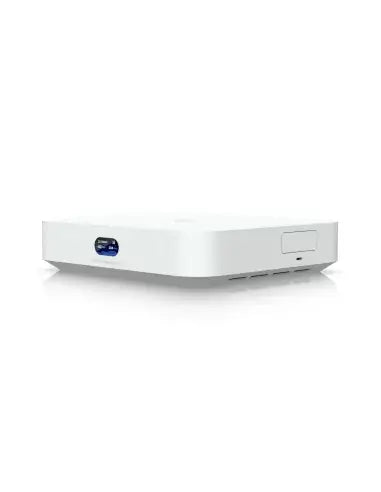

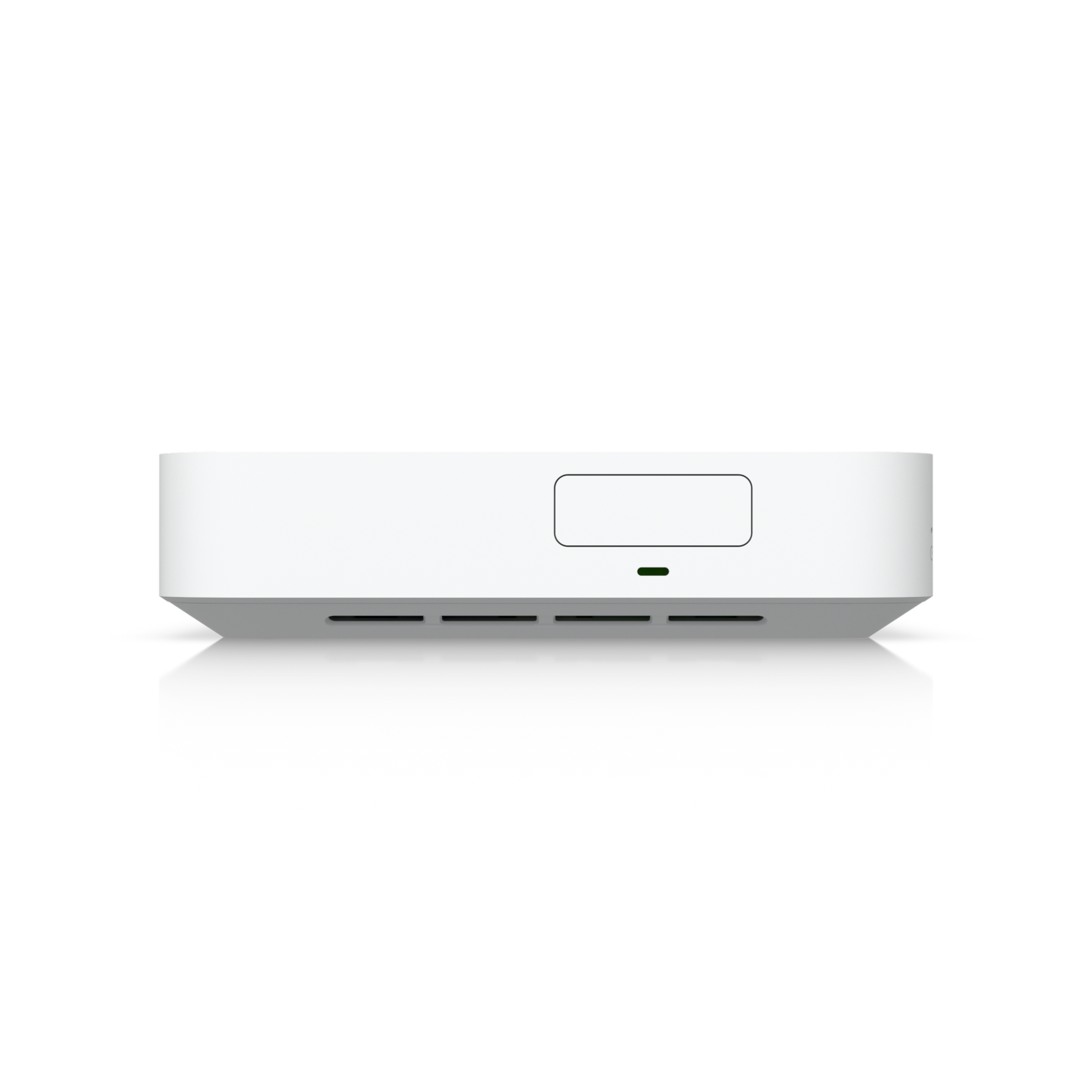

Ubiquiti Cloud Gateway Max Multi-WAN | UCG-Max

The Ubiquiti Cloud Gateway Max (UCG-MAX) is a powerful 2.5G multi-WAN cloud gateway designed to manage over 30 UniFi devices and support more than 300 clients. With advanced routing capabilities, including 1.5 Gbps IPS routing and 512 GB of NVMe NVR storage, it offers robust performance and scalability for enterprise-level networking needs.

Features

• Multi-WAN Load Balancing: Distributes traffic across multiple WAN connections for improved reliability and performance.
• High Client Support: Capable of managing over 30 UniFi devices and 300 clients simultaneously.
• Fast IPS Routing: Provides 1.5 Gbps IPS routing for enhanced security and performance.
• Large Storage Capacity: Equipped with 512 GB NVMe SSD storage for network video recording (NVR).

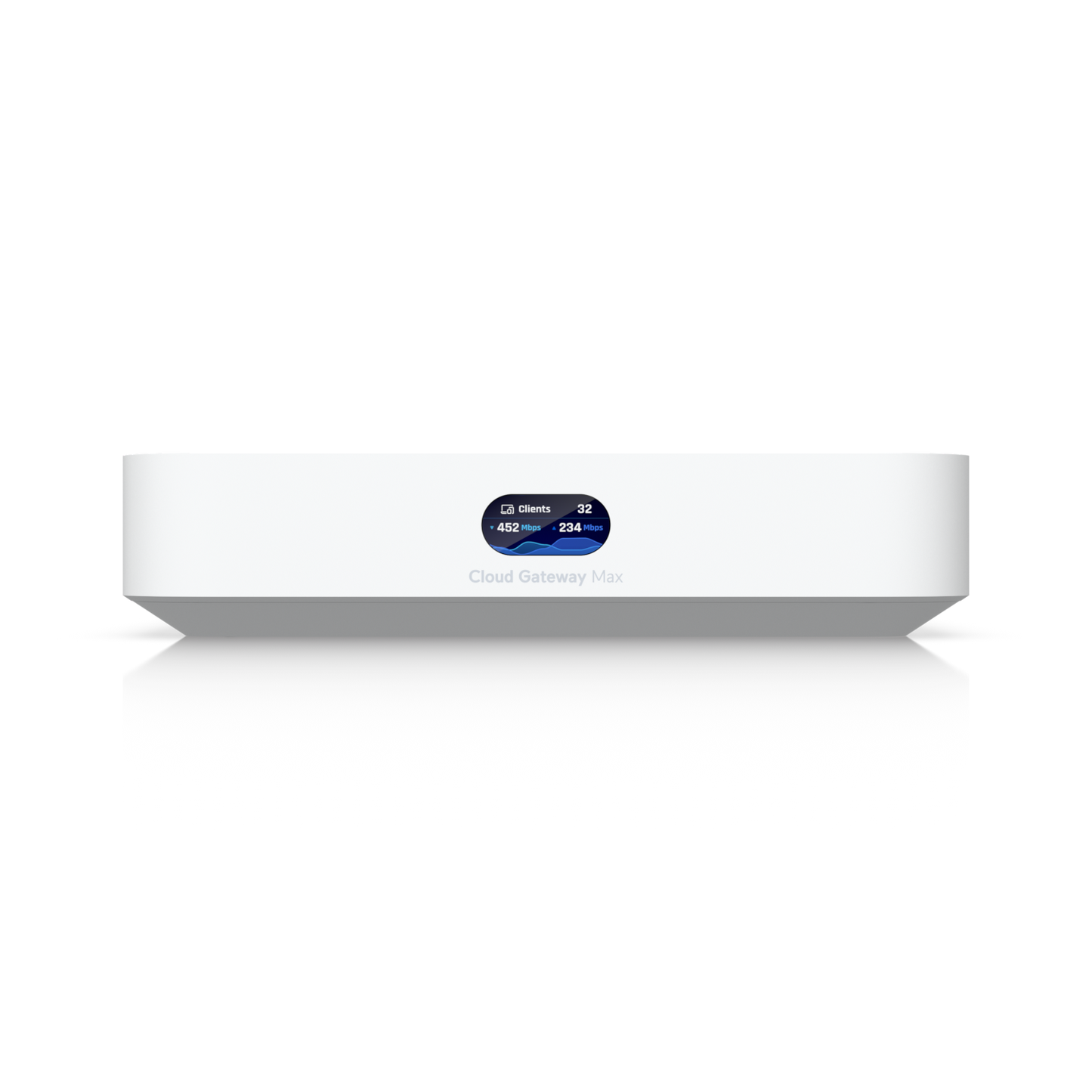

• User-Friendly Display: Features a 0.96" LCM status display for easy monitoring.
• USB-C Powered: Comes with an included USB-C power adapter for convenient power options.

Specifications

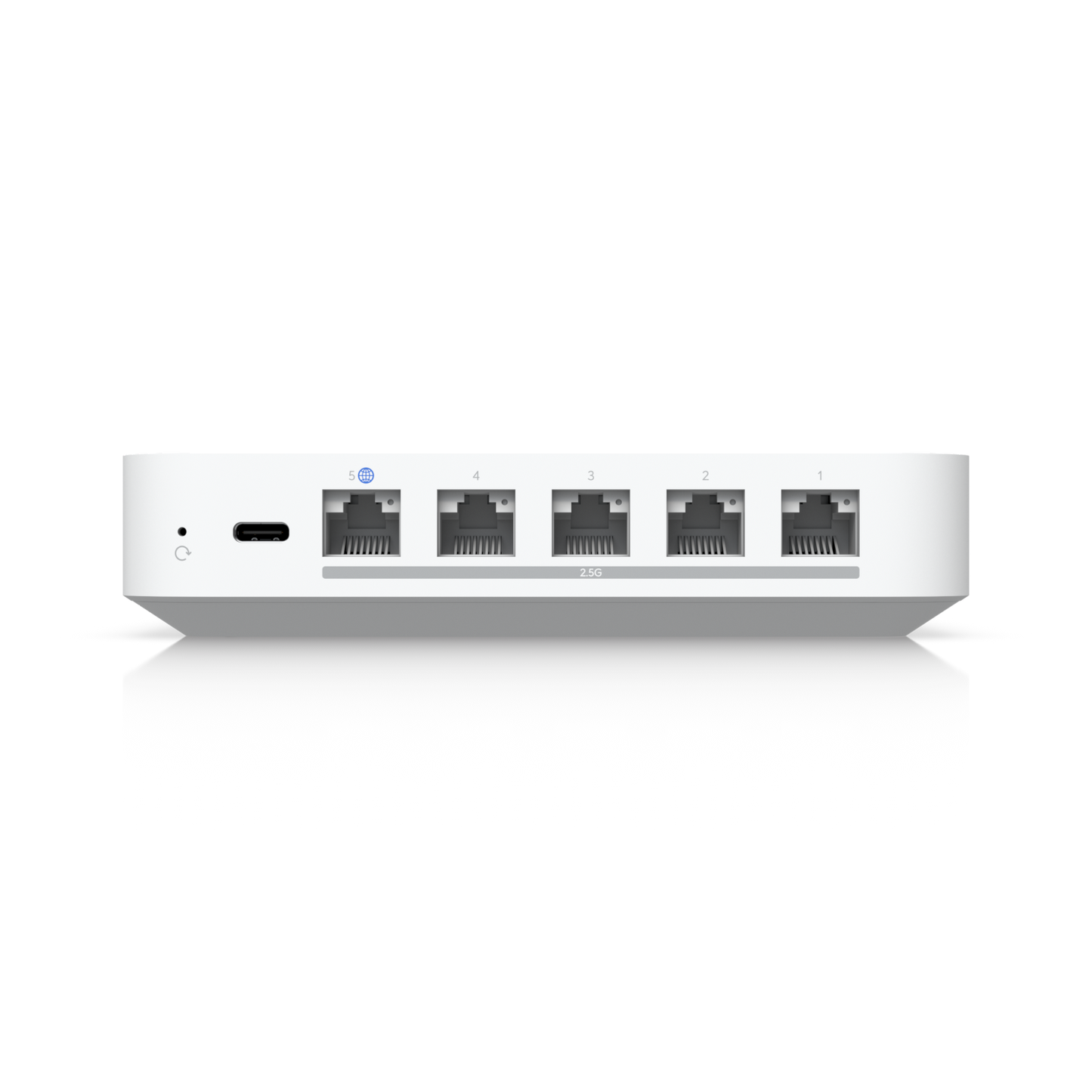

• Ethernet Ports: 4x 2.5G Ethernet ports (LAN); 1x 2.5G Ethernet port (WAN)
• Processor: Quad-core ARM Cortex-A53 at 1.5GHz
• System Memory: 3GB DDR4
• Operating Temperature: -10°C to 40°C
• Power Consumption: Max 16.1W
• Dimensions: 141.8 mm x 127.6 mm x 30 mm
• Weight: 0.52 kg
