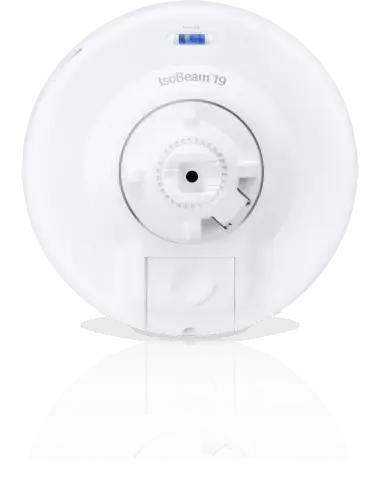

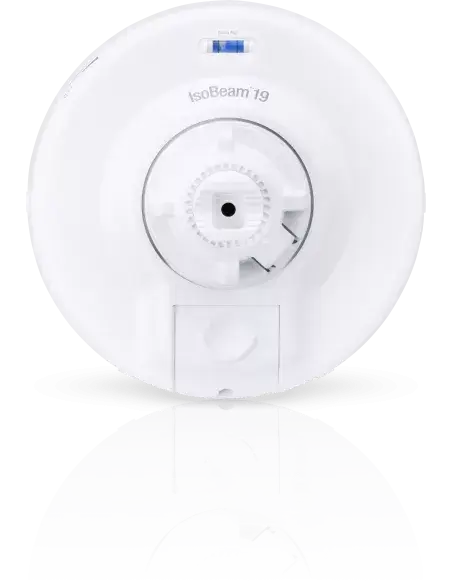

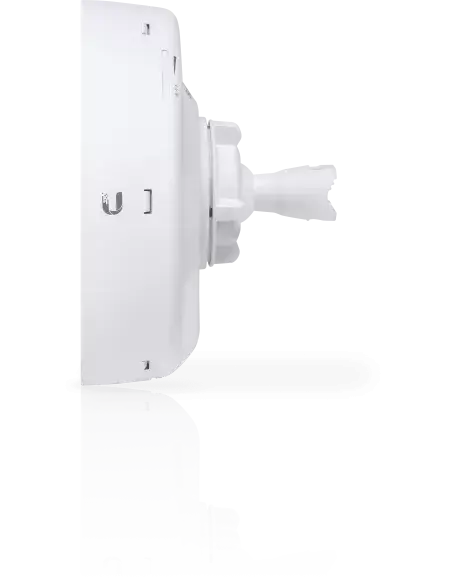

Ubiquiti airMAX NanoBeam 19 Isolator Shield | ISO-BEAM-19

The Ubiquiti airMAX NanoBeam 19 Isolator Shield is an essential accessory designed to enhance signal isolation for the Ubiquiti NanoBeam 19. It effectively reduces interference, ensuring optimal performance in various networking environments.

Features

• Enhanced Signal Isolation: The isolator shield improves the performance of the NanoBeam by minimizing signal interference from other sources.
• Compatible with Multiple Models: Designed specifically for use with Ubiquiti NanoBeam models, including NBE-M2-14, NBE-M5-19, and NBE-5AC-19.
• Easy Installation: The product comes with a quick start guide and requires minimal mounting hardware for setup.

Specifications

• Dimensions: 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
• Weight: 0.530 kg (1.17 lb)
• Power Supply: 24V, 0.5A PoE
• Max. Power Consumption: 6W
• Operating Frequency: 2405 - 2475 MHz
• Gain: 13 dBi
• Networking Interface: (1) 10/100 Ethernet Port
• Polarization: Dual Linear
• Enclosure Outdoor: UV Stabilized Plastic
• Mounting: Pole-Mount (Kit Included), Wall-Mount
• Wind Loading: 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature: -40 to 80° C (-40 to 176° F)
• Operating Humidity: 5 to 95% Noncondensing
• Wireless Approvals: FCC, IC, CE
