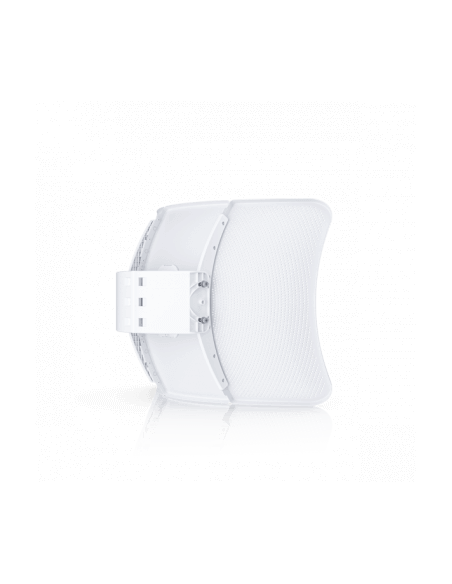

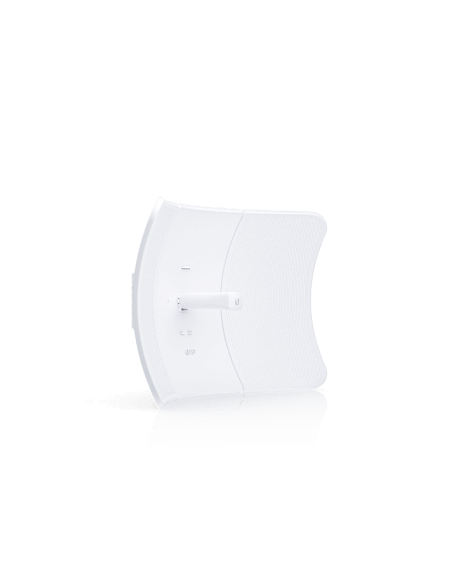

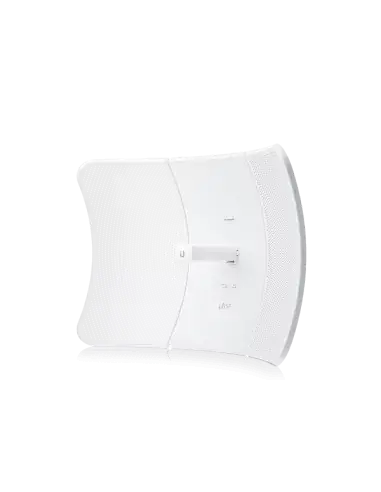

Ubiquiti airMAX LiteBeam AC 5GHz XR | LBE-5AC-XR

The Ubiquiti airMAX LiteBeam AC 5GHz XR (LBE 5AC XR) is an advanced outdoor wireless station designed to provide high-speed connections over extremely long distances. This device is ideal for serving multiple subscribers with a single unit, thanks to its proprietary high-gain antenna and robust construction.

Features

• Proprietary airMAX ac chipset: Ensures efficient data transmission and improved performance.
• Ultra-lightweight design: Constructed from aluminium alloy and UV-stabilized polycarbonate for durability and ease of installation.
• High-gain antenna with InnerFeed® technology: Provides enhanced signal quality and range.
• Integrated GPS: Facilitates precise link planning and deployment.
• Link planning support via ISP Design Center: Simplifies the setup process for optimal performance.
• Dedicated management radio: Allows for quick device setup using the UISP Mobile app.

Specifications

• Dimensions: 747 x 525 x 347 mm (29.4 x 20.7 x 13.7")
• Weight: 3.2 kg (7.1 lb)
• Frequency: 5.15 to 5.85 GHz
• Link range: Up to 30+ km
• Throughput: 450+ Mbps
• Antenna Gain: 29 dBi
• Beam-width: 15°
• Operating Temperature: -40°C to 70°C
• Power Consumption: 7W
