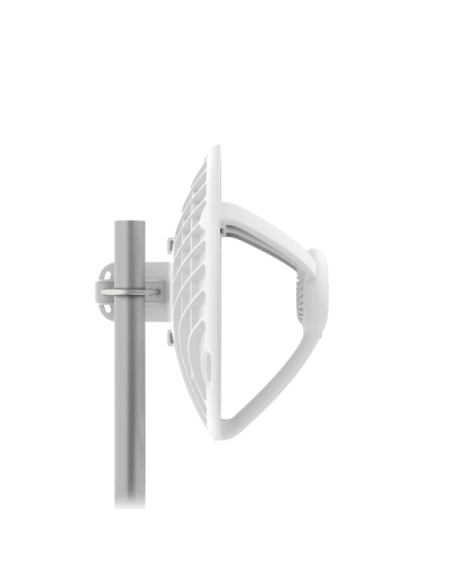

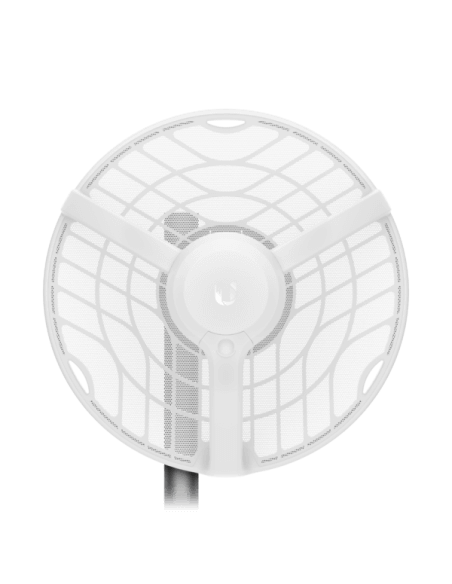

Ubiquiti airMAX GigaBeam Long-Range | GBE-LR

The Ubiquiti airMAX GigaBeam Long-Range (GigaBeam LR) is a high-performance wireless radio system designed for long-range connectivity. With its advanced 60 GHz technology, it delivers exceptional throughput and minimal interference, making it ideal for high-demand applications in both urban and rural environments. The GigaBeam LR also includes a 5 GHz backup radio for failover, ensuring reliable connectivity.

Features

• High-Gain Dish Antenna: Designed for low-interference and high-throughput connectivity.
• Dual-Band Operation: Features a primary 60 GHz radio with a backup 5 GHz radio for failover.
• Full Bandwidth Support: Utilizes 2.16 GHz of bandwidth for the 60 GHz link.
• Dedicated Management Radio: Simplifies setup via Wi-Fi for easy management.
• Long-Range Performance: Capable of achieving distances of up to 2 km with a max throughput of over 1 Gbps.

Specifications

• Dimensions: 415 x 415 x 303 mm (16.34 x 16.34 x 11.93")
• Weight: Without mount: 1.4 kg (3.09 lb), With mount: 1.8 kg (3.97 lb)
• Enclosure material: Aluminum, UV-stabilized polycarbonate
• Wind loading: 56 N at 200 km/h (12.6 lbf at 125 mph)
• Wind survivability: 200 km/h (125 mph)
• Mounting: Pole mount (included)
• Max. power consumption: 11W
• ESD/EMP protection: Air/contact: ± 24kV
• Ambient operating temperature: -40 to 60° C (-40 to 140° F)
• Ambient operating humidity: 5 to 95% noncondensing
• Certifications: FCC, IC, CE
