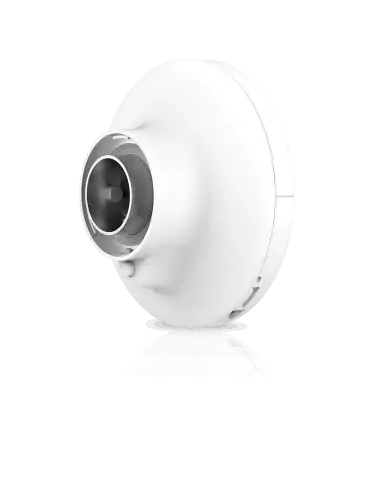

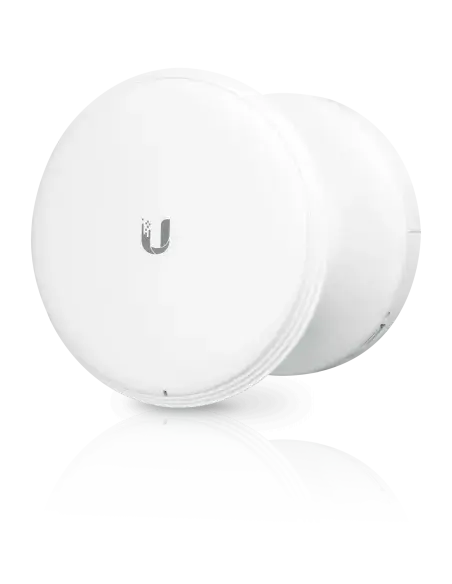

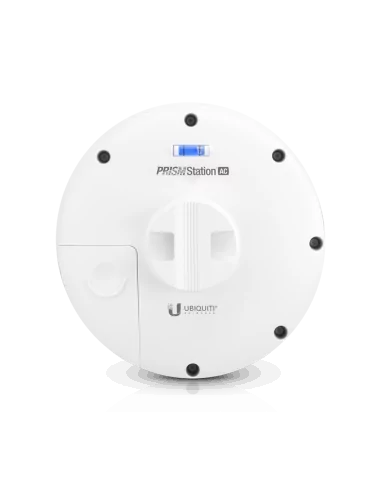

Ubiquiti airMAX AC PrismStation 5GHz Radio | PS-5AC

The Ubiquiti airMAX AC PrismStation 5GHz Radio is designed for high-performance and reliable wireless connectivity. Equipped with advanced airPrism technology, this device directs RF energy in a tighter beamwidth, enhancing noise immunity and ensuring optimal performance even in crowded RF environments.

Features

• Tighter Beamwidth: Utilizes an interchangeable isolation antenna horn available in symmetrical and asymmetrical designs to focus RF energy in one direction.
• Improved Noise Immunity: Effectively blocks or spatially filters out noise, making it ideal for areas with multiple RF signals of similar frequency.
• Carrier-Class Performance: Capable of high-speed, reliable links suitable for both point-to-point and point-to-multipoint networking.
• Durable Design: Built to withstand harsh environmental conditions with a wide operating temperature range.

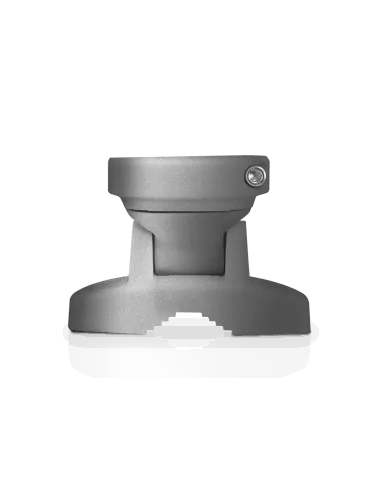

• Easy Installation: Comes with a pole mount kit for straightforward setup.

Specifications

• Dimensions: 155 x 155 x 104 mm (5.2 x 5.2 x 4.1 inches)
• Weight: 0.8 kg (1.7 lb)
• Networking Interface: (1) GbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 1A gigabit PoE adapter (Included)
• Supported Voltage Range: 20—27V DC
• Max Power Consumption: 10W
• Operating Frequency: 5150 - 5875 MHz
• Ambient Operating Temperature: -40 to 70° C (-40 to 158° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC
