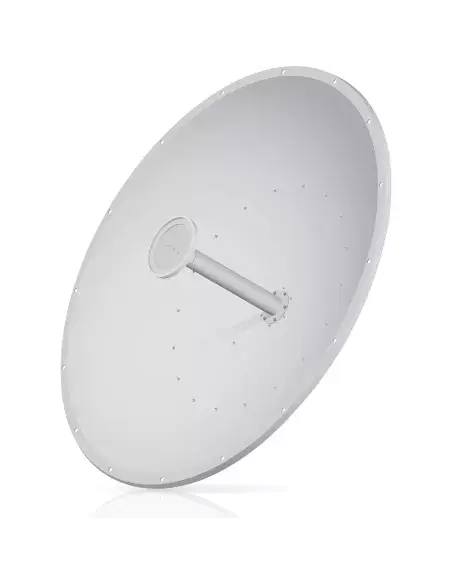

The Ubiquiti airMAX 5GHz 34dBi Dual Polarized Dish is engineered for high-performance networking, allowing for the creation of robust Point-to-Point (PtP) links. This antenna features dual-polarity performance, making it ideal for backhaul connections from ISP networks to local towers, ensuring reliable bandwidth delivery.

Features

• High Gain: Offers a gain of up to 34 dBi for enhanced signal strength and coverage.
• Dual Polarized: Supports 2x2 dual-polarity performance for improved data transmission.
• Robust Design: Built to withstand outdoor conditions, ensuring durability and longevity.
• Easy Integration: Compatible with Rocket basestations for seamless network deployment.

Specifications

• Frequency Range: 4.9 - 5.8 GHz
• Dimensions: 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57 inches)
• Weight: 13.5 kg (29.76 lb)
• HPOL Beamwidth: 3° (3 dB)
• VPOL Beamwidth: 3° (3 dB)
• Max VSWR: 1.4:1
• Wind Loading: 1,779 N @ 200 km/h (400 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Cross-pol Isolation: 35 dB Min.

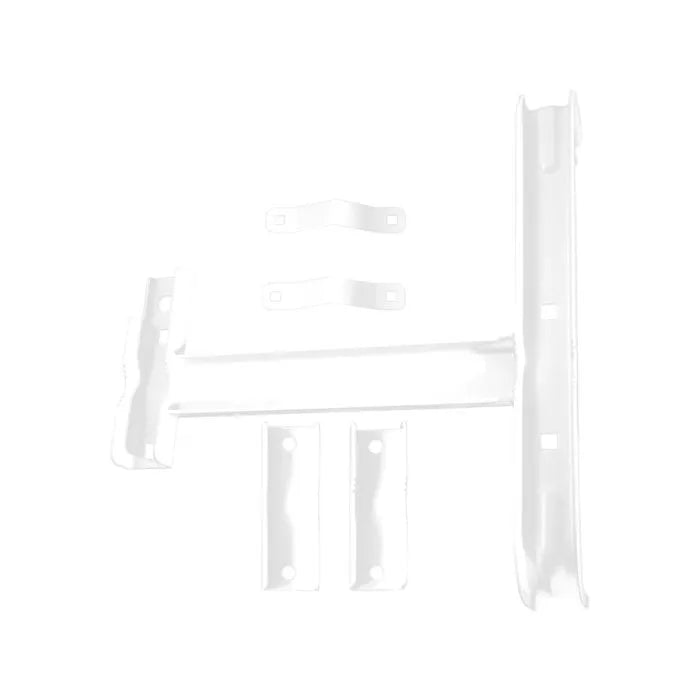

• Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
