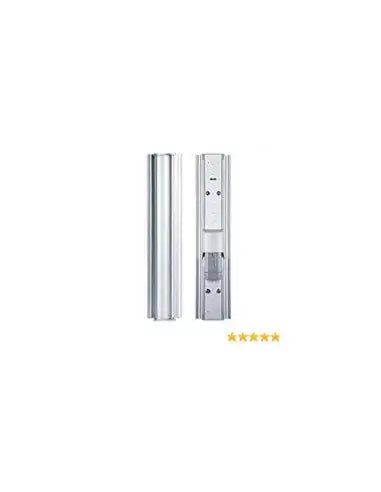

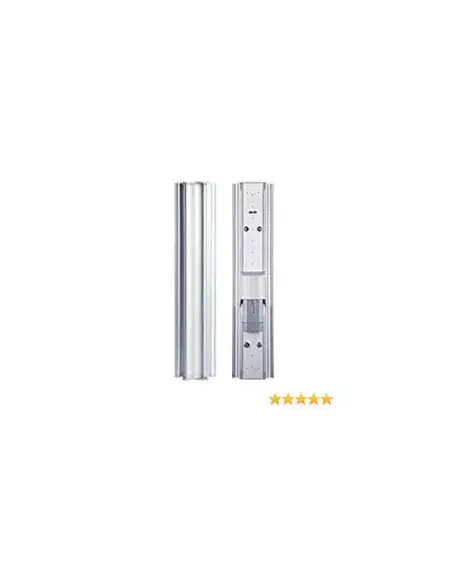

Ubiquiti airMAX 3GHz Sector 18dBi, 120° | AM-3G18-120

The Ubiquiti airMAX 3GHz Sector Antenna is a high-performance, carrier-class sector antenna designed for outdoor use. With a gain of 18 dBi and a wide 120° beamwidth, it provides excellent coverage and connectivity for high-capacity, multipoint wireless networks. This antenna integrates seamlessly with Rocket radios, ensuring superior performance and reliability.

Features

• Carrier-Class Performance: Designed for robust and reliable connectivity in high-capacity environments.
• Dual-Polarity MIMO: Supports 2x2 dual-polarity MIMO technology for enhanced data throughput.
• High Gain: Offers 18 dBi gain for extended range and better signal quality.
• Wide Beamwidth: 120° beamwidth allows for broader coverage area.
• Noise Resistance: Engineered to minimize noise interference, ensuring clear signal transmission.
• Durable Construction: Built with robust materials suitable for harsh outdoor conditions.
• Easy Integration: Comes with a built-in Rocket mount for quick and tool-free installation.

Specifications

• Frequency Range: 3.3 - 3.8 GHz
• Gain: 17.3 - 18.2 dBi
• HPOL Beamwidth: 118° (6 dB)
• VPOL Beamwidth: 121° (6 dB)
• Electrical Beamwidth: 6°
• Electrical Downtilt: 3°
• Max. VSWR: 1.5:1
• Wind Survivability: 200 km/h (125 mph)
• Weight: 5.9 kg
• Dimensions: 735 x 144 x 78 mm
