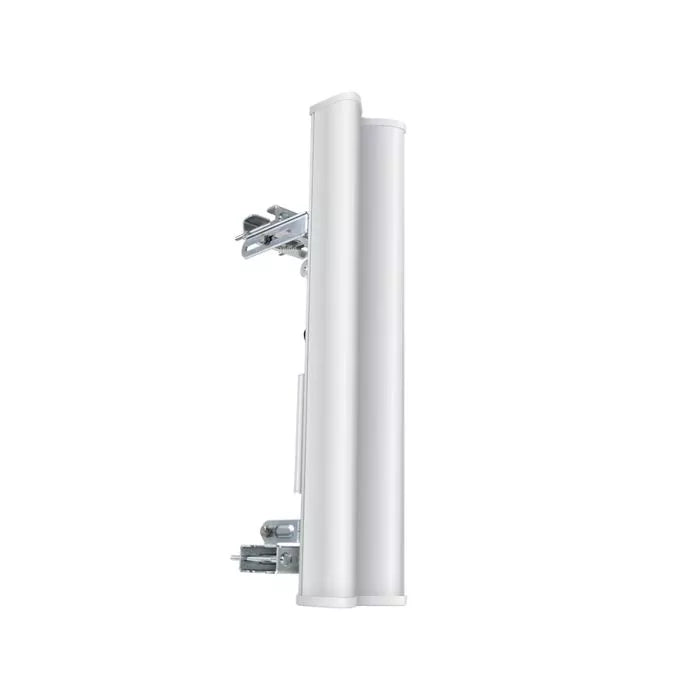

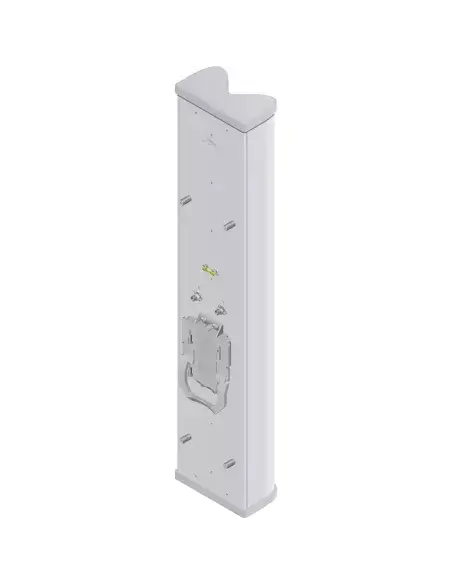

Ubiquiti airMAX 2.4GHz Sector 15dBi, 120° | AM-2G15-120

The Ubiquiti airMAX 2.4GHz Sector Antenna is a carrier-class solution designed for high-capacity, multipoint networks. With a dual-polarity MIMO design, it integrates seamlessly with Rocket radios, providing exceptional performance and resistance to noise interference.

Features

• Carrier-Class Performance: Designed for high-capacity, multipoint networks.
• Dual-Polarity MIMO: Supports 2x2 dual-polarity configuration for enhanced signal quality.
• Seamless Integration: Compatible with Ubiquiti Rocket radios (sold separately).
• Robust Mechanical Design: Built for outdoor applications, ensuring durability in various weather conditions.
• High Gain: Offers 15dBi gain for superior signal strength and coverage.
• Wide Beamwidth: 120° beamwidth for extensive sector coverage.

Specifications

• Frequency Range: 2.3 - 2.7 GHz
• Gain: 15.0 - 16.0 dBi
• Horizontal Beamwidth: 123° (6 dB)
• Vertical Beamwidth: 118° (6 dB)
• Electrical Beamwidth: 9°
• Electrical Downtilt: 4°
• Max VSWR: 1.5:1
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 107 N @ 160 km/h (24 lbf @ 100 mph)
• Polarization: Dual-Linear
• Cross-Polar Isolation: 28 dB Min.

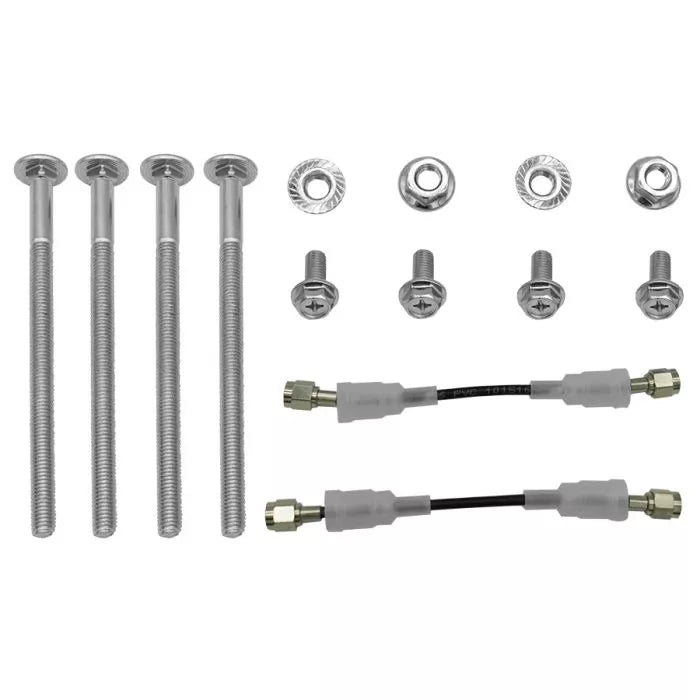

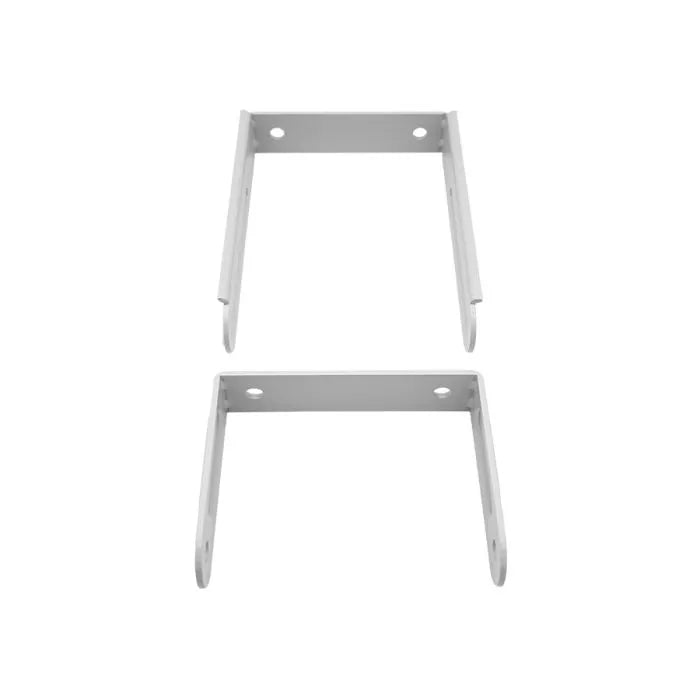

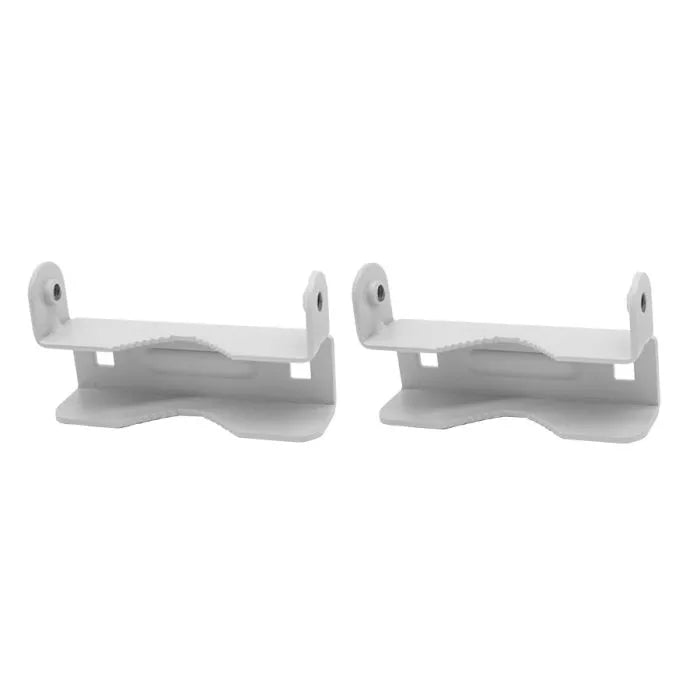

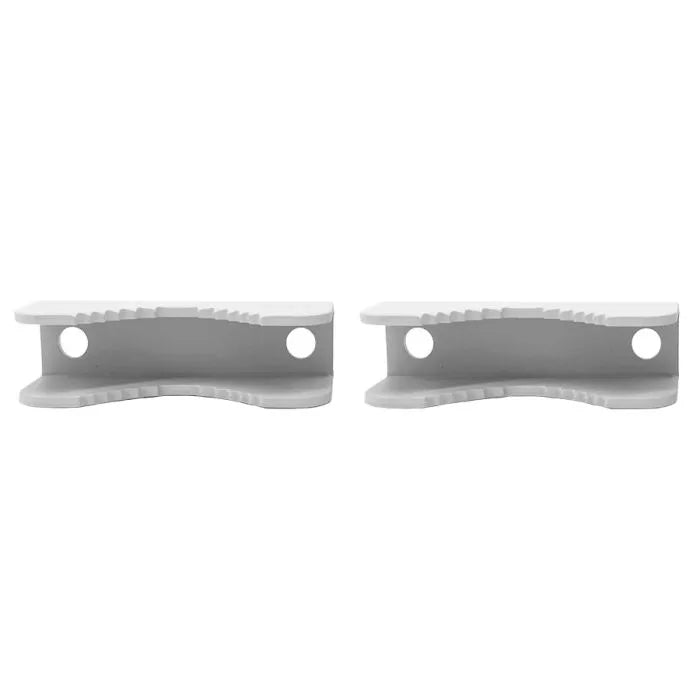

• Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
