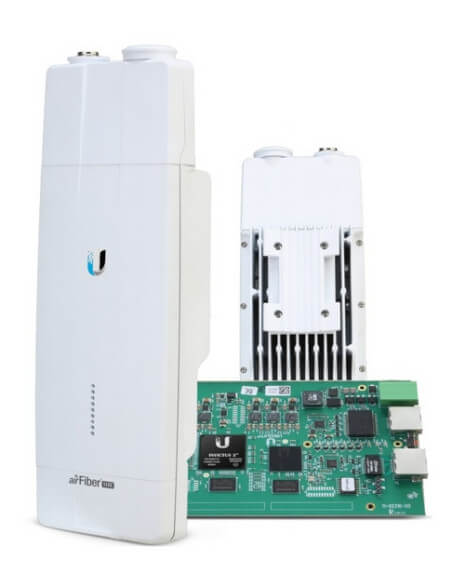

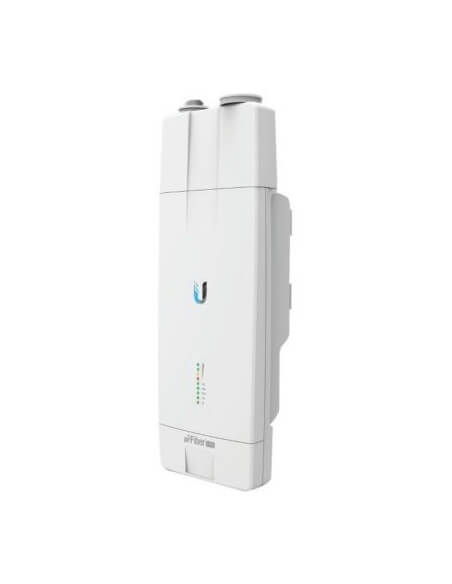

Ubiquiti airFiber X 11GHz Full-Duplex Radio | AF-11-U

The Ubiquiti airFiber X 11GHz Full-Duplex Radio is a high-performance, purpose-built outdoor radio designed for point-to-point (PtP) bridging and carrier-class network backhauls. Utilizing the licensed 11 GHz radio band, it helps alleviate congestion in the 5 GHz band while delivering exceptional throughput and low latency.

Features

• Full-Duplex Operation: True FDD (Frequency Division Duplex) provides simultaneous transmission and reception, enhancing performance and meeting licensing requirements.
• High Throughput: Capable of delivering over 1.2 Gbps throughput, making it ideal for high-capacity applications.
• Extended Range: Supports communication over distances greater than 300 km, suitable for long-haul deployments.
• Robust Design: Features built-in rain-fade mitigation and enhanced robustness for reliable performance in challenging environments.
• Flexible Deployment: Compatible with Ubiquiti AF-11G35 antenna and most third-party antennas using an optional adapter kit.

Specifications

• Frequency Range: 10.7 - 11.7 GHz
• Max Conducted TX Power: 30 dBm
• Dimensions: 327 x 112 x 86 mm
• Weight: 2.260 kg
• Power Supply: 50VDC, 1.2A PoE Gigabit Adapter (Included)
• Max Power Consumption: 36W
• Operating Temperature: -40 to 55 °C
• Networking Interface: (1) 10/100/1000 Ethernet Port, (1) 10/100 Management Port
• Modulation: Supports up to 1024QAM for high spectral efficiency
