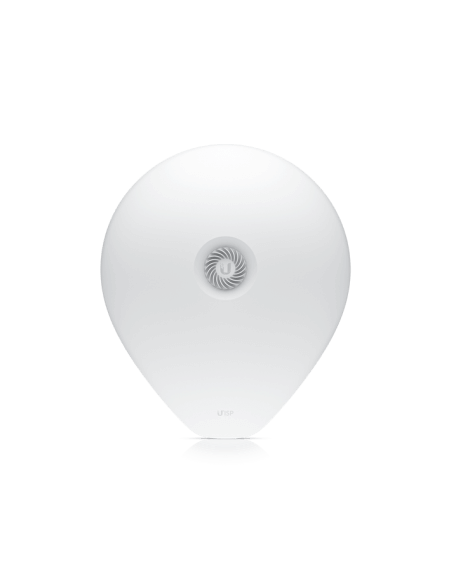

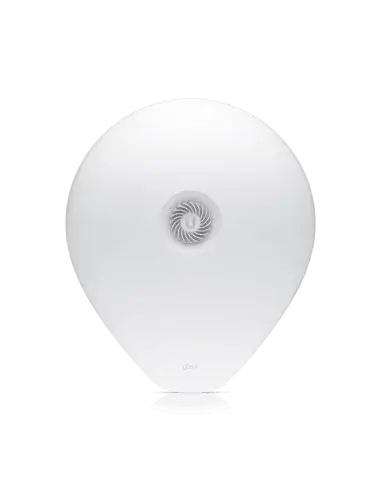

Ubiquiti airFiber 60 XG | AF60-XG-EU

The Ubiquiti airFiber 60 XG is a state-of-the-art 60GHz point-to-point (PtP) bridge, designed for high-performance connectivity with minimal interference. It features a built-in 5GHz backup radio and is ideal for carrier backhaul applications, ensuring low-latency throughput and reliable communication over long distances.

Features

• Low-Interference 60GHz Spectrum: Utilizes a high-frequency band that significantly reduces interference, ensuring a stable connection.
• High-Gain Dish Antenna: Provides enhanced signal strength and range for optimal performance.
• 5GHz Backup Radio: Offers an additional layer of connectivity to ensure continuous operation in case of 60GHz signal loss.
• 4+ km Link Range: Capable of establishing connections over distances exceeding 4 kilometers.
• Channel Bonding Support: Allows for throughput rates of up to 6Gbps by combining channels.
• Terragraph-Certified: Compliant with Terragraph standards for urban wireless networks.
• 10G SFP+ Port: Supports high-speed fiber connections for increased network capacity.
• Integrated GPS: Facilitates precise positioning and alignment for optimal signal quality.
• Bluetooth Management Radio: Simplifies the setup and configuration process.

Specifications

• Manufacturer SKU: AF60-XG-EU
• Dimensions: 779 x 664 x 383 mm
• Weight: 8.6 kg (without mount), 13 kg (with mount)
• Operating Frequency: 57–66 GHz
• Max Throughput: 6 Gbps (with channel bonding), 3.8 Gbps (60 GHz), 866.6 Mbps (5 GHz)
• Power Consumption: 31.2W
• Operating Temperature: -40 to 55°C
• Humidity: 5 to 95% non-condensing
• Certifications: FCC, IC, CE, Terragraph
