Ubiquiti airFiber 60 Long-Range | AF60-LR-EU

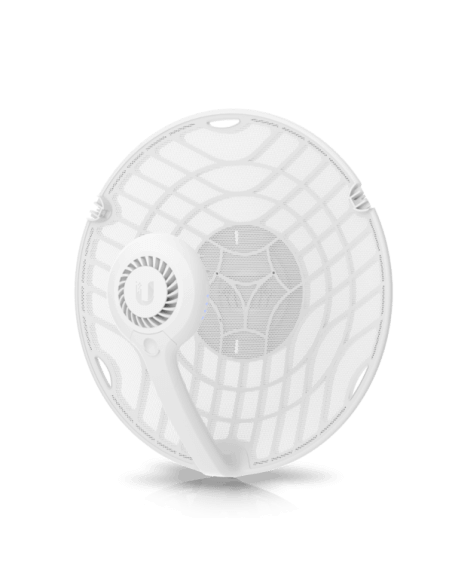

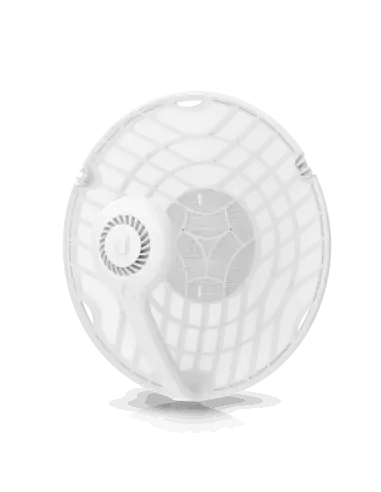

The Ubiquiti airFiber 60 Long-Range is a state-of-the-art 60GHz radio system designed to deliver high-throughput connectivity over extended ranges. Ideal for Point-to-Point (PtP) links, it features an integrated high-gain dish antenna that ensures superior performance and speed. With advanced Wave Technology and built-in Bluetooth management, setup is streamlined and efficient.

Features

• Long-Range Performance: Achieves a maximum range of over 12 kilometers, making it suitable for extensive coverage needs.
• High Throughput: Supports a maximum total throughput of 2 Gbps, ensuring fast and reliable data transmission.
• Integrated GPS: Facilitates precise alignment and positioning for optimal performance.
• Bluetooth Management: Quick and easy setup via the UISP™ app using Bluetooth technology.

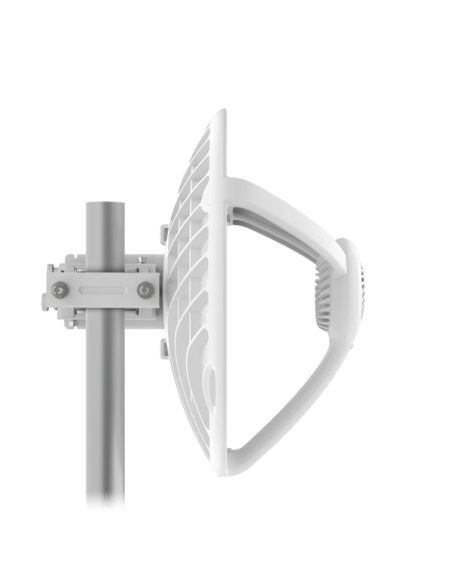

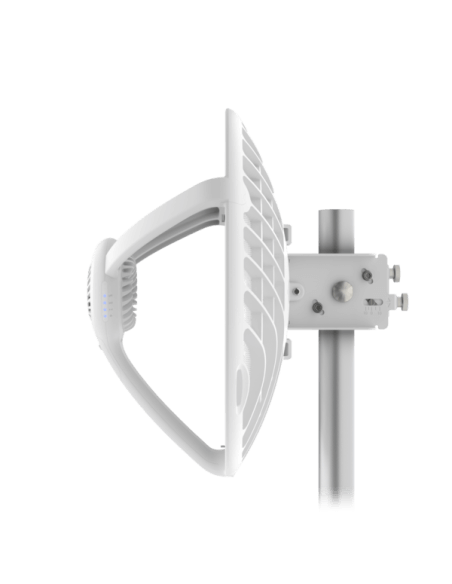

• Precision Alignment Mount: Included for accurate installation and enhanced signal quality.

Specifications

• Dimensions: Ø413 x 360 mm (Ø16.3 x 14.2 inches)
• Weight: Without mount: 1.5 kg (3.3 lb); With mount: 2.7 kg (6 lb)
• Enclosure Material: Aluminum, UV stabilized polycarbonate
• Networking Interface: (1) GbE RJ45 port
• Max Power Consumption: 22W
• Power Method: Passive PoE (44–54V DC)
• Operating Frequency: 57–71 GHz (depends on regulatory region)
• Max Throughput: 1.95 Gbps
• Ambient Operating Temperature: -40 to 60°C (-40 to 140°F)
• Certifications: FCC, IC, CE
