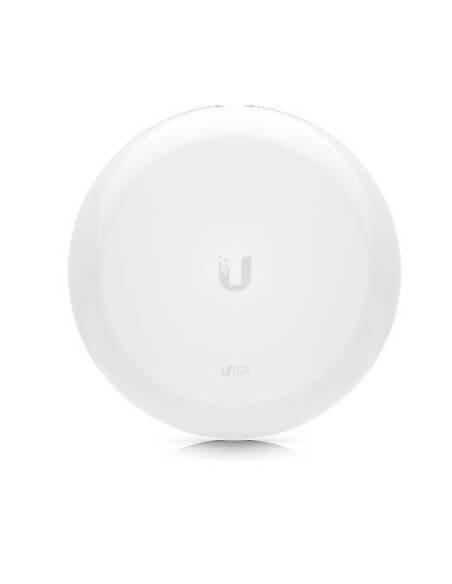

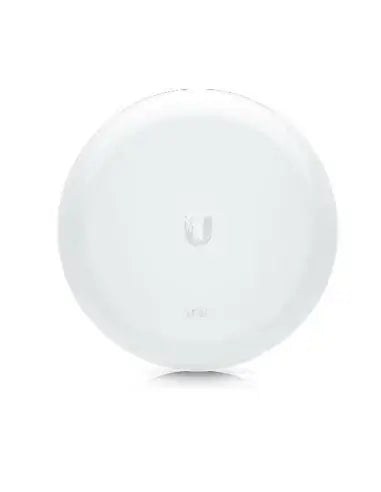

Ubiquiti airFiber 60 HD PtP Radio | AF60-HD

The Ubiquiti airFiber 60 HD PtP Radio is a cutting-edge, multi-gigabit radio designed for high-speed, low-latency point-to-point (PtP) links. Operating in the 60GHz frequency band, it provides a robust solution for wireless communication over distances up to 2 kilometers, making it ideal for last-mile connectivity in challenging environments.

Features

• Multi-Gigabit Connectivity: Achieves maximum throughput of 10 Gbps with SFP+ and Gigabit Ethernet ports.
• Long-Range Performance: Supports PtP links up to 2 km, ensuring reliable data transmission over long distances.
• Integrated GPS: Built-in GPS for precise alignment and synchronization of multiple units.
• Weatherproof Design: Constructed with an IPX6 rating, making it suitable for outdoor deployment in harsh weather conditions.
• Advanced Signal Processing: Utilizes proprietary self-interference cancellation algorithms to optimize link performance.

Specifications

• Dimensions: Ø189 x 89 mm (Ø7.4 x 3.5 inches)
• Weight: 1.8 kg (3.9 lb) without mount, 2.95 kg (6.5 lb) with mount
• Processor: Quad-core ARM Cortex A72 at 1.6 GHz
• Memory: 2 GB DDR4
• Networking Interfaces: (1) GbE RJ45 port, (1) 1/10G SFP+ port
• Max Power Consumption: 29.31W
• Power Supply: 48V DC, 0.65A gigabit PoE adapter (included)
• Operating Temperature: -40 to 55°C (-40 to 131°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: FCC, IC, CE, Terragraph
