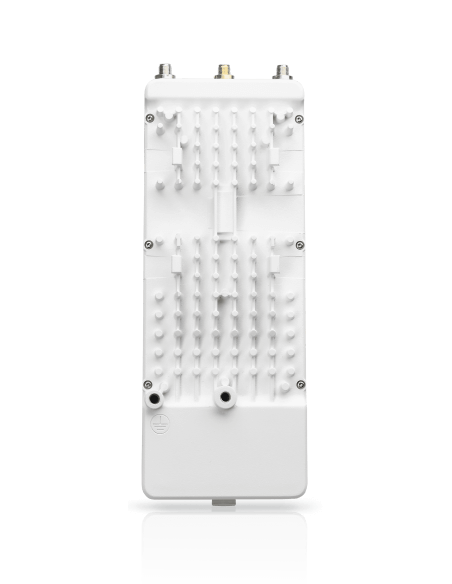

Ubiquiti airFiber 5XHD 5GHz PtP Radio | AF-5XHD-U

The Ubiquiti airFiber 5XHD is designed for high-performance point-to-point (PtP) wireless communication in the 5 GHz frequency band. Featuring advanced LTU technology, it offers exceptional throughput of up to 1.34 Gbps and a range exceeding 100 km, making it ideal for Wireless Internet Service Providers (WISPs) and other demanding applications.

Features

• High Throughput: Achieves real data throughput of up to 1.34 Gbps.
• Long Range: Capable of transmitting signals over distances greater than 100 km.
• Advanced LTU Technology: Utilizes Ubiquiti's custom silicon for superior performance and efficiency.
• Flexible Channel Bandwidth: Supports channel widths of up to 100 MHz for optimized performance.
• GPS Synchronization: Ensures precise timing and minimizes interference for co-located installations.
• Robust Weatherproofing: IP67 rated for dust and water resistance, ensuring reliable operation in harsh environments.
• Dual Gigabit Ethernet Ports: Provides redundancy and supports Power over Ethernet (PoE).
• Bluetooth Wireless Configuration: Allows for easy setup and management via Bluetooth.

Specifications

• Operating Frequency: 5 GHz
• Max Conducted TX Power: 29 dBm
• Channel Bandwidth: 10/20/30/40/50/60/80/100 MHz selectable
• Operating Temperature: -40°C to 55°C
• Max Power Consumption: 6W-12W
• Dimensions: 224 x 82 x 48 mm
• Weight: 0.35 kg
• Supported Voltage Range: 18V-54V
• Encryption: AES-256
• Operating System: airOS LTU
