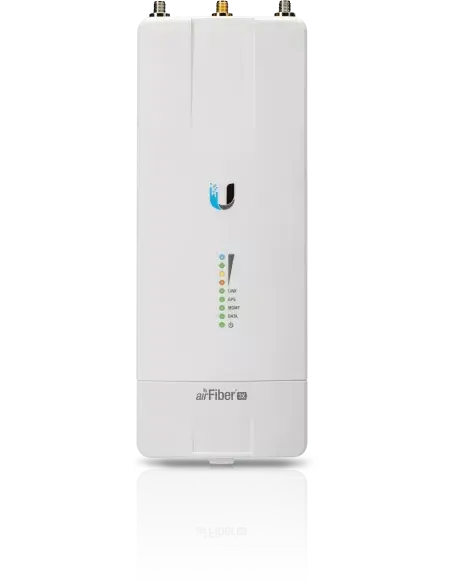

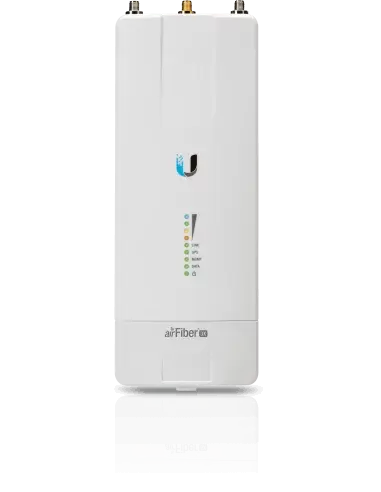

Ubiquiti airFiber 3X Radio | AF-3X

The Ubiquiti airFiber 3X Radio is a modular radio system designed for high-performance wireless backhaul communications. It operates across a wide range of frequencies and is compatible with various Ubiquiti antennas, making it ideal for custom airFiber backhaul links or upgrading existing Rocket Point-to-Point (PtP) links.

Features

• Modular Design: Allows customization of airFiber backhaul links to meet specific deployment needs.
• Wide Frequency Range: Operates within the 3300-3900 MHz frequency range, suitable for various applications.
• High Throughput: Capable of delivering up to 500 Mbps throughput for efficient data transmission.
• Advanced Signal Processing: Utilizes dual-antenna design and proprietary self-interference cancellation algorithms for optimal performance.
• Robust Build: Designed to withstand harsh environmental conditions with an operating temperature range of -40 to 55°C.
• Easy Installation: Compatible with RocketMount and GPS Pole Mount for flexible installation options.

Specifications

• Dimensions: 224 x 82 x 48 mm
• Weight: 0.35 kg
• RF Connectors: (2) RP-SMA Weatherproof (CH0, CH1), (1) SMA Weatherproof (GPS)
• Power Supply: 24V, 1A PoE Gigabit Adapter (Included)
• Power Method: Passive Power over Ethernet
• Certifications: FCC Part 90 Z, CE EN 302 217-2-2
• Maximum Conducted TX Power: 29 dBm (Depends on Regulatory Region)
• Channel Bandwidth: 10/20/30/40/50 MHz Selectable
• Encryption: 128-bit AES
• Operating Frequency: 3300-3900 MHz (Depends on Regulatory Region)
• Frequency Accuracy: ± 2.5 ppm without GPS Synchronization, ± 0.2 ppm with GPS Synchronization
