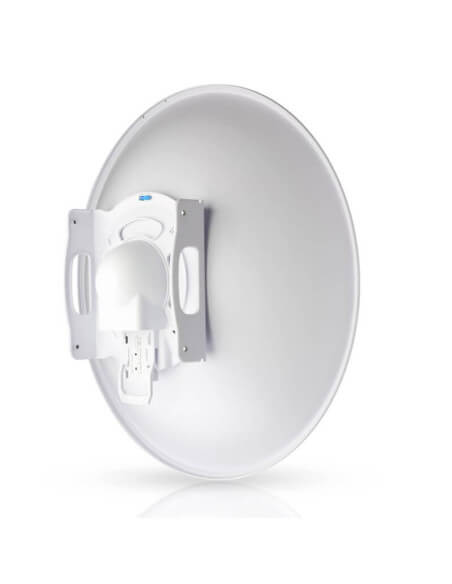

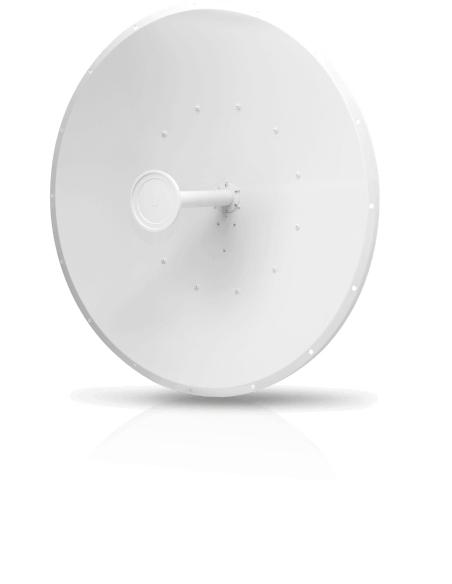

Ubiquiti airFiber 34dBi 45° Slant Dish Antenna | AF-5G34-S45

The Ubiquiti airFiber 34dBi 45° Slant Dish Antenna is designed for high-performance long-range Point-to-Point (PtP) links. With its advanced dual-polarity performance and robust mechanical design, it provides superior gain and improved RF isolation, making it ideal for multipoint networks in outdoor applications.

Features

• 34 dBi Gain: Provides exceptional signal strength and reliability for long-distance communications.
• Dual-Polarity Performance: Utilizes 2x2 dual-polarity technology for enhanced performance in various environments.
• Robust Mechanical Design: Built for outdoor use, ensuring durability and reliability in harsh weather conditions.

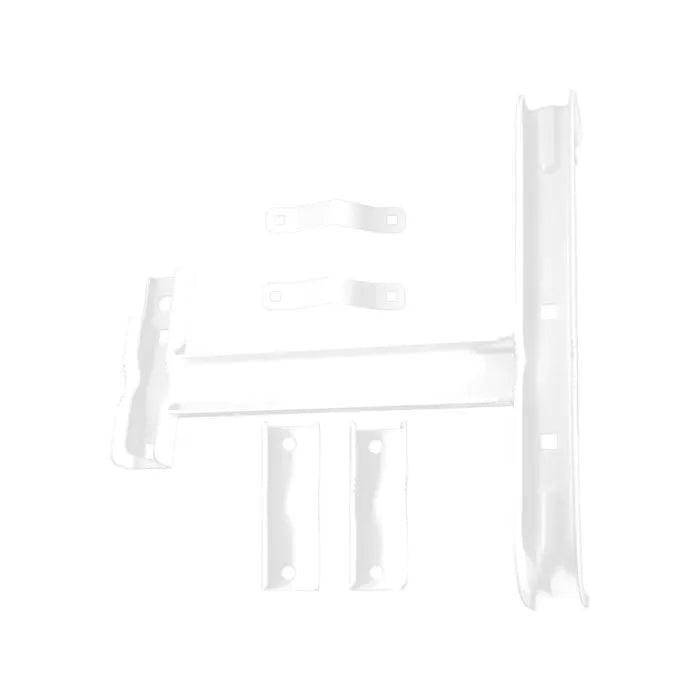

• Secure Pole-Mounting: Comes with a secure mounting system for easy installation on poles.
• Compatible with airFiber 5XHD: Designed to work seamlessly with Ubiquiti's airFiber radios for optimal performance.

Specifications

• Dimensions: Ø 1050 x 421 mm (41.34 x 41.34 x 16.57")
• Weight With Mount: 13.5 kg (29.76 lb)
• Frequency: 5.1 - 5.8 GHz
• Gain: 34 dBi
• Max. VSWR: 1.4:1
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 1,779 N @ 200 km/h (400 lb @ 125 mph)
• Polarization: Dual Linear
• F/B Ratio: 42 dB
