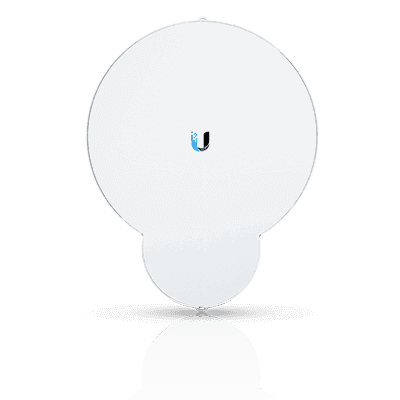

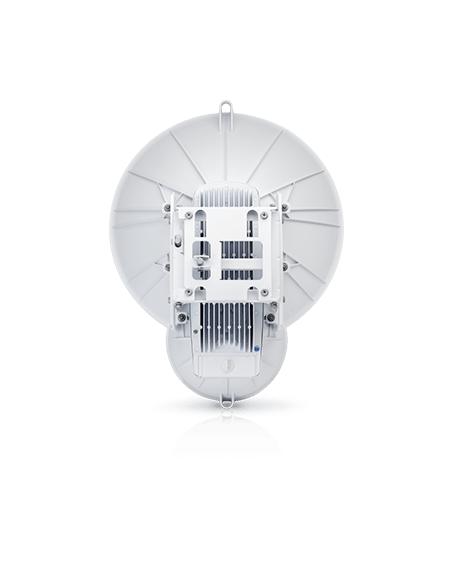

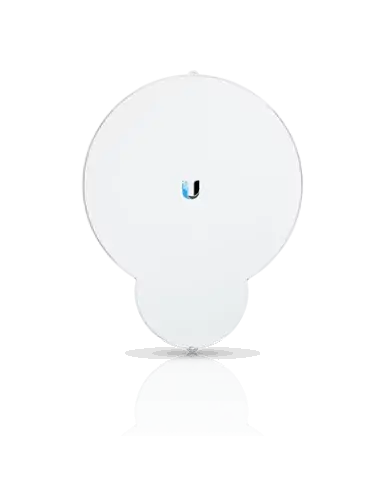

Ubiquiti airFiber 24HD | AF-24HD

The Ubiquiti airFiber 24HD is a revolutionary Point-to-Point wireless platform designed for exceptional performance, offering gigabit+ speeds, low latency, and long-range capabilities. Ideal for carrier backhaul, building-to-building networking, and public safety applications, it supports 24 GHz frequencies and is built for efficiency and reliability.

Features

• High Performance: Delivers up to 2 Gbps aggregate throughput.
• Long Range: Capable of operating at distances of over 20 km.
• Low Latency: Ensures quick data transmission for time-sensitive applications.
• Dual Antenna Design: Features separate integrated TX and RX antennas for enhanced signal quality.
• Integrated GPS Synchronization: Provides accurate timing and synchronization for better performance.
• Robust Build: Designed to withstand harsh environmental conditions with an operating temperature range of -40 to 55 °C.
• Easy Installation: Comes with a pole mounting kit for straightforward setup.

Specifications

• Operating Frequency: 24.05 – 24.25 GHz
• TX Gain: 33 dBi
• RX Gain: 40 dBi
• Channel Bandwidth: 100 MHz
• Max Power Consumption: < 50W
• Power Supply: 50V, 1.2A PoE Gigabit Adapter (Included)
• Weight: 17.3 kg
• Dimensions: 593 x 768 x 370 mm (23.35 x 30.24 x 14.57 inches) excluding mount
• Networking Interface: (1) 10/100/1000 Ethernet Port, (1) 10/100 Ethernet Port
• Certifications: CE, FCC, IC
