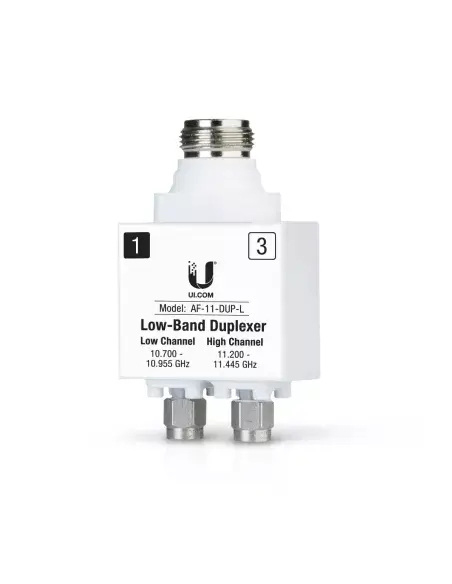

Ubiquiti airFiber 11FX Low Band Duplexer AF-11-DUP-L

Ubiquiti airFiber 11FX Low Band Duplexer AF-11-DUP-L

SKU:UBAF-AF-11FX-DUP-L

13 in stock

Regular price R 5,336.00
Regular price Sale price R 5,336.00
Sale Sold out
Shipping calculated at checkout.

The Ubiquiti airFiber 11FX Low Band Duplexer is a modular accessory designed for the AF-11FX radio, enabling flexible frequency configurations for high-band or low-band use within the 10.7 - 11.7 GHz range. This duplexer enhances the operational capabilities of the airFiber system, allowing for optimal performance in various networking applications.

Features

  • Modular Design: Supports multiple frequency configurations by simply changing duplexers (sold separately).
  • Dual Channel: Each duplexer has a low channel and a high channel, configurable by reversing the position.
  • Flexible Frequency Use: Configurable for high-band or low-band use in the 10.7 - 11.7 GHz allocation.
  • Enhanced Performance: Optimized for efficient data transport, providing high spectral efficiency.
  • Compatibility: Works with Ubiquiti's AF-11G35 antenna and various third-party antennas using an optional adapter.

Specifications

  • Frequency Range: 10.7 - 11.7 GHz
  • Low Channel Frequency: 10.700 - 10.955 GHz
  • High Channel Frequency: 11.200 - 11.445 GHz
  • Max Conducted TX Power: 30 dBm
  • Dimensions: 327 x 112 x 86 mm
  • Weight: 2.260 kg
  • Operating Temperature: -40 to 55 °C
  • Power Supply: 50VDC, 1.2A PoE Gigabit Adapter
  • Supported Voltage Range: 38 - 56 VDC
