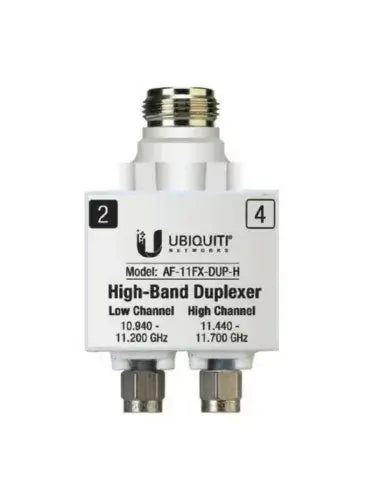

Ubiquiti airFiber 11FX High Band Duplexer | AF-11-DUP-H

The Ubiquiti airFiber 11FX High Band Duplexer is a cutting-edge accessory designed to enhance the performance of the airFiber AF-11 radio. It enables full-duplex operation, allowing for simultaneous transmission and reception, and supports high data throughput for reliable point-to-point connections.

Features

• High-Band Duplexer: Optimized for the 10.940 to 11.200 GHz and 11.440 to 11.700 GHz frequency ranges, ensuring efficient communication.
• Full-Duplex Operation: Facilitates simultaneous transmission and reception, maximizing the efficiency of data transfer.
• MIMO Support: Enables MIMO mode configuration for improved performance and capacity, allowing for greater data throughput.
• Modular Design: Reconfigurable duplexers allow for adjustments based on specific licensing requirements, providing flexibility in deployment.
• Robust Performance: Features a unique rain-fade mitigation strategy for enhanced link robustness, ensuring reliable connectivity even in adverse weather conditions.

Specifications

• Model: AF-11FX-DUP-H
• Frequency Range: 10.940 - 11.200 GHz (Low Channel), 11.440 - 11.700 GHz (High Channel)
• Max Conducted TX Power: 30 dBm
• Operating Temperature: -40 to 55°C
• Dimensions: 327 x 112 x 86 mm
• Weight: 2.260 kg
