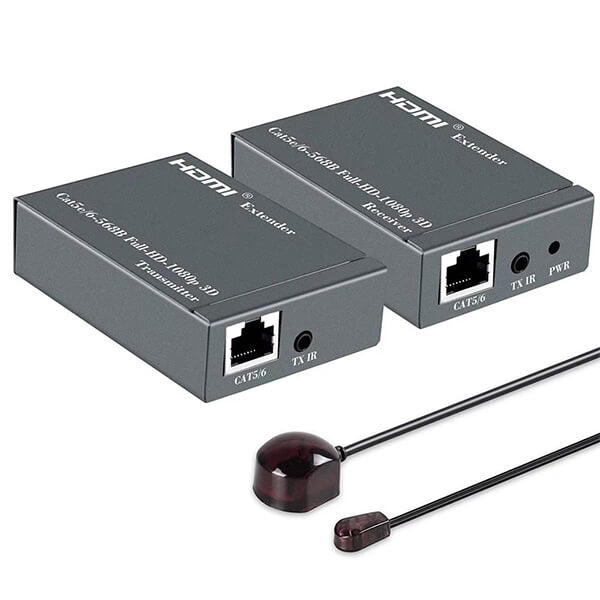

TVA HDMI Over Cat5/6 Extender 60m with IR for HD Signal Transmission

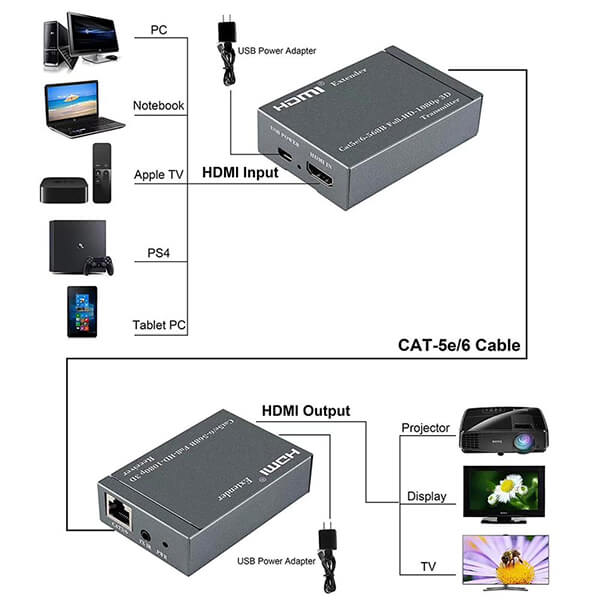

The TVA HDMI Over Cat5/6 Extender allows you to transmit high definition HDMI signals over a distance of up to 60 meters using a single Cat5e or Cat6 cable. This cost-effective solution is ideal for various applications such as conference room presentations, data center control, and educational environments. It supports resolutions up to 1080p and includes IR pass-through for remote control functionality.

Features

• Long Distance Transmission: Extends HDMI signals up to 60 meters using a single Cat5e or Cat6 cable.
• Cost-Effective Solution: Reduces the need for expensive HDMI cables while maintaining high-quality signal transmission.

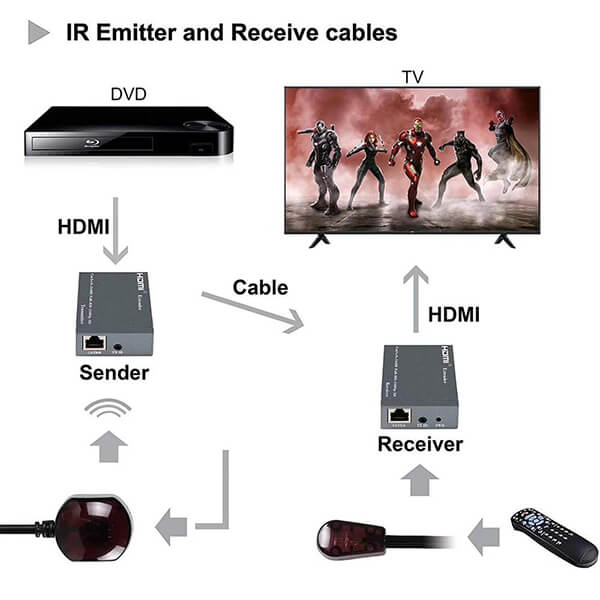

• IR Pass-Through: Allows remote control of devices from a distance, enhancing user convenience.
• Supports High Definition: Compatible with resolutions up to 1080p, ensuring clarity and detail in video playback.
• Dynamic EDID Management: Automatically adjusts settings for optimal performance without manual configuration.

Specifications

• HDMI Input: Supports 24/50/60fs, 1080p/1080i/720P/576p/576i/480P/480i
• Audio Input Support: DTS-HD, Dolby-TrueHD, DTS, Dolby-AC3, DSD
• Max Bandwidth: 165MHz
• Max Baud Rate: 1.65Gbps
• Input Video Signal: 0.5-1.5 Volts pp
• Output DDC Signal: 5Volts p-p (TTL)
• Operating Temperature: -15°C to +55°C
• Humidity: 5% to 90% RH (no condensation)
• TX Max Working Current: 510mA
• RX Max Working Current: 100mA
• Power Adapter Input: AC (100V-240V), Output: DC 5V/1A
• Dimensions: 81mm x 43mm x 22mm
• TX Weight: 100g, RX Weight: 120g
