TP-Link Single-mode SC Fiber Converter - High-Speed Transfer

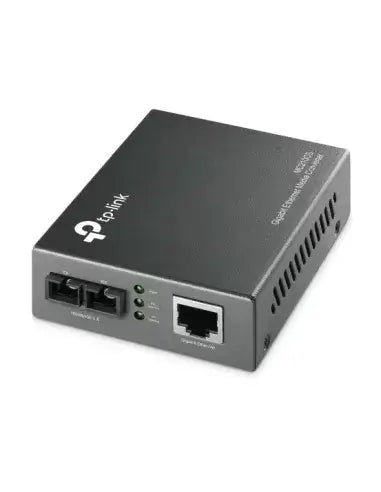

The TP-Link Single-mode SC Fiber Converter MC210CS is designed to seamlessly convert 1000BASE-LX fiber to 1000Base-T copper media and vice versa, ensuring high-speed data transfer over long distances. It supports single-mode fiber optic cables with SC-type connectors and operates at a wavelength of 1310nm for both transmitting and receiving data. Ideal for extending fiber distances up to 20 kilometers, this converter is a reliable choice for robust networking solutions.

Features

• High-Speed Conversion: Converts 1000BASE-LX fiber to 1000Base-T copper media and vice versa.
• Long-Distance Support: Extends fiber distances up to 20 kilometers, suitable for expansive network setups.
• Stand-Alone Operation: Can be used as a stand-alone device or with TP-Link's MC1400 chassis.
• Auto MDI/MDI-X: Supports automatic configuration for the RJ45 port, simplifying installation.

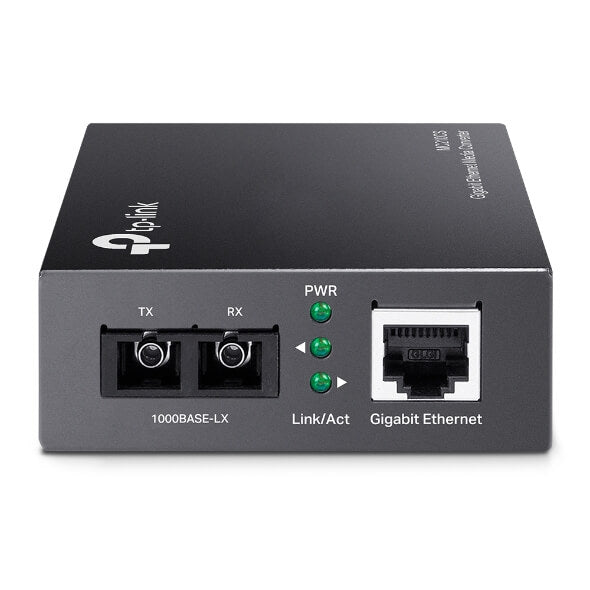

• LED Status Indicators: Equipped with front panel LEDs to show power and link/activity status.

Specifications

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
• Ports: 1× 1000M SC/UPC port, 1× 10/100/1000M RJ45 port (Auto MDI/MDI-X)
• Wavelength: 1310nm
• Network Media 1000BASE-LX: Single-mode Fiber
• Network Media 1000BASE-T: UTP category 5, 5e cable (maximum 100m)
• LED Indicators: PWR, Link/Act
• Dimensions (W*D*H): 94.5mm x 73.0mm x 27.0mm

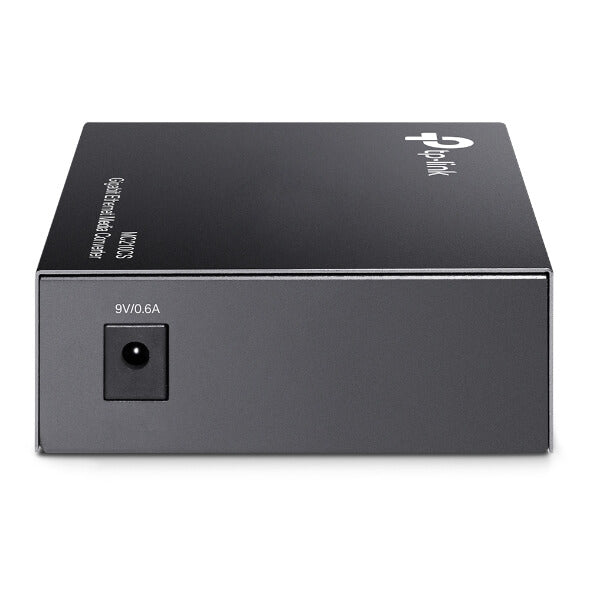

• Power Supply: External Power Adapter
• Max Power Consumption: 1.8W
• Safety & Emission: FCC, CE, RoHS
• Operating Temperature: 0℃~50℃ (32℉~122℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
