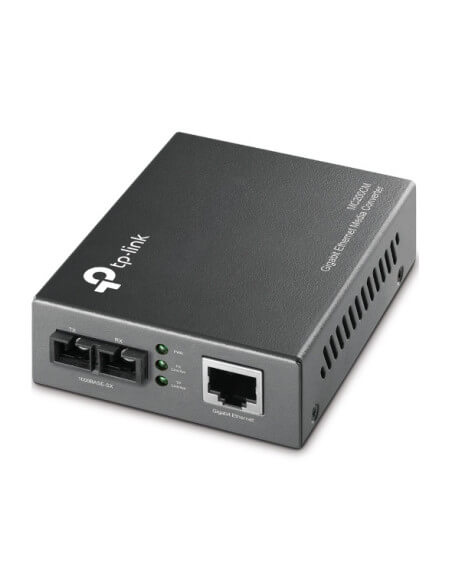

TP-Link Multi-mode SC Fiber Converter - Reliable Connectivity

The TP-Link Multi-mode SC Fiber Converter (MC200CM) is a versatile media converter designed to seamlessly convert 1000BASE-SX fiber signals to 1000Base-T copper media and vice versa. This device ensures reliable and high-speed connectivity for your networking needs, supporting both multimode fiber optic cables and copper Ethernet connections.

Features

• Dual Functionality: Converts 1000BASE-SX fiber to 1000Base-T copper media and vice versa.
• Standards Compliance: Complies with IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards.
• High-Speed Performance: Supports full wire speed forwarding rate at 1000Mbps in full-duplex mode.
• Extended Fiber Distance: Utilizes multimode fiber to extend distances up to 1,800 feet (550 meters) with 50/125um fiber.

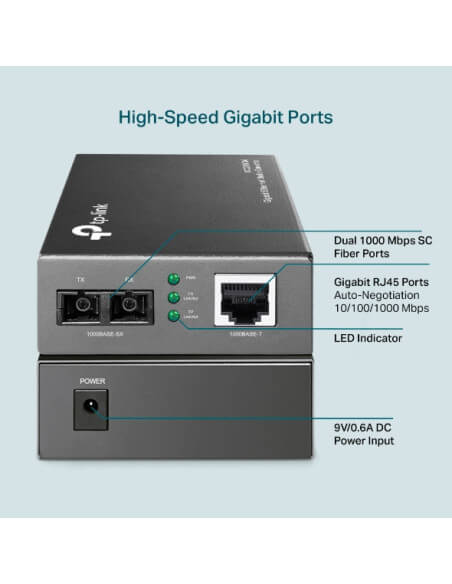

• User-Friendly Design: Auto MDI/MDI-X for TX port and easy-to-view LED indicators for monitoring network activity.
• Compact Size: Can be used as a standalone device or with TP-Link's 19-inch system chassis.

Specifications

• Wavelength: 850nm
• Ports: 1 x 1000M dual SC/UPC port, 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX)
• Max Power Consumption: 1.66W
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• Dimensions: 95 x 73 x 27 mm
