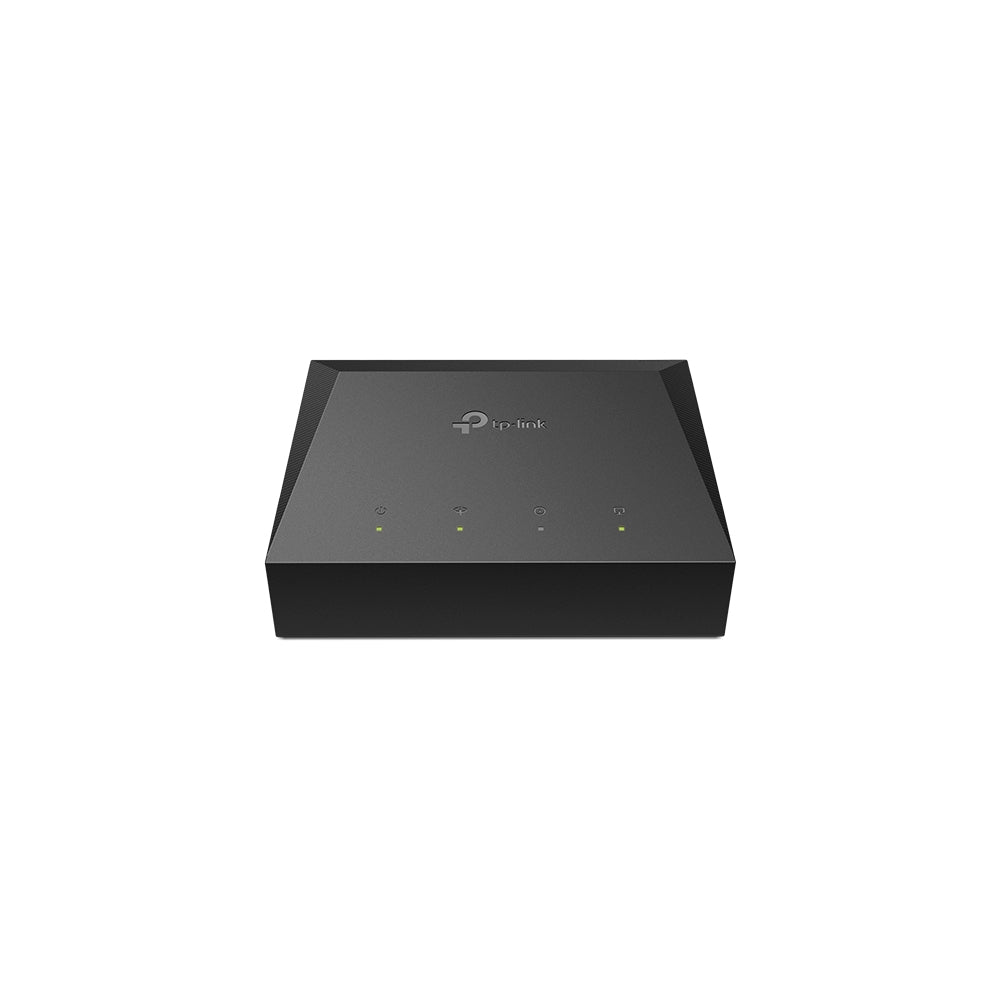

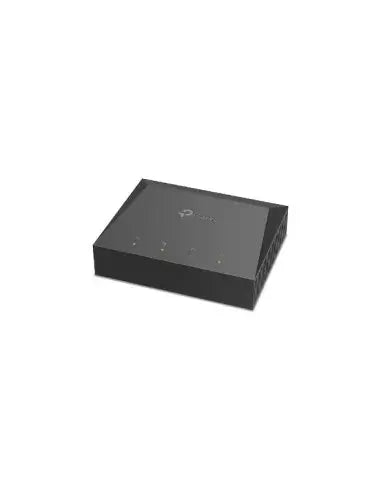

TP-Link GPON ONU 1-Port Gigabit SFU

The TP-Link GPON ONU 1-Port Gigabit SFU is a high-performance Gigabit Passive Optical Network terminal, ideal for Fiber-to-the-Home solutions. It supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream, making it perfect for high-bandwidth applications such as VoIP and HD video streaming.

Features

• High-Speed GPON Service: Supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream.
• Full Gigabit Port: One GPON port and one Gigabit Ethernet port provide incredibly fast transfer speeds.
• Easy Remote Management: TR-069 protocol enables operators to remotely configure and manage end-user devices.
• Durability: Features an intelligent power-saving method to enhance longevity.
• Compliant with ITU-T G.984 GPON standards, ensuring reliable performance.

Specifications

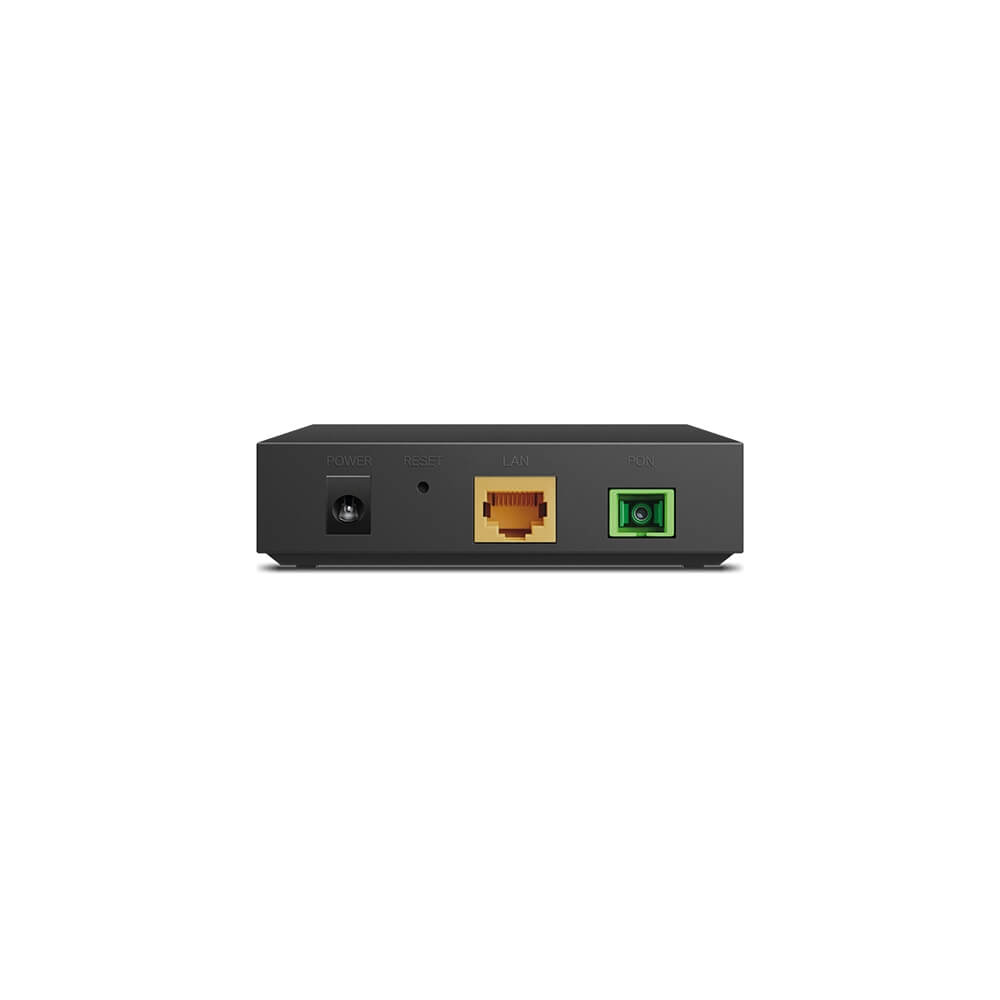

• Interface: 1 × 10/100/1000Mbps RJ45 Port, 1 × SC/APC Port
• Data Rates: Upstream: 1.244Gbps, Downstream: 2.488Gbps
• Wavelength: Upstream: 1310nm, Downstream: 1490nm
• Dimensions: 95.0 × 75.0 × 29.3 mm
• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Operating Humidity: 10% ~ 90% non-condensing
• Power Supply: 9VDC/0.6A
