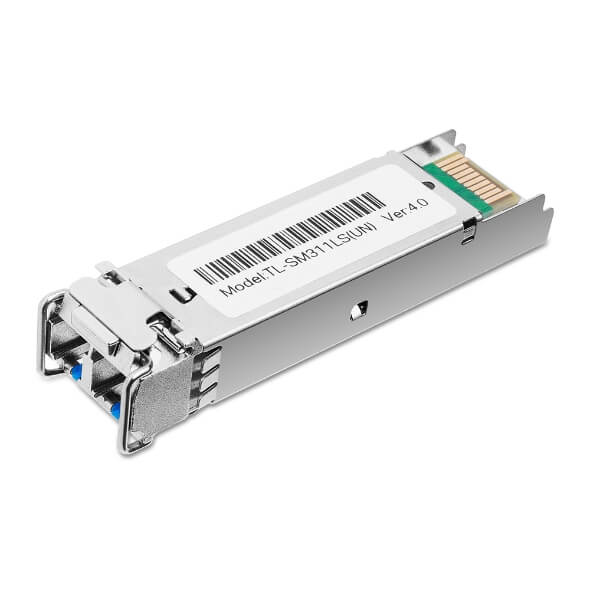

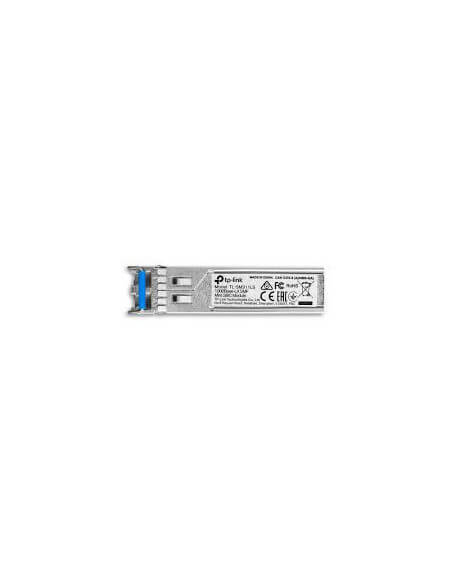

TP-Link Gigabit SFP Module - Single-mode

The TP-Link Gigabit SFP Module (TL-SM311LS) is designed for high-speed data transmission over single-mode fiber, offering an impressive reach of up to 20 kilometers. This mini GBIC module is compatible with all SFP ports on TP-Link products, including JetStream switches and media converters, ensuring seamless integration into your network infrastructure.

Features

• Long Distance Transmission: Achieves up to 20 km transmission distance using 9/125 μm single-mode fiber.
• Wide Compatibility: Compatible with all SFP ports on TP-Link products, including JetStream switches and media converter MC220L.
• Hot Swappable: Allows for easy installation and replacement without powering down the device.
• Digital Diagnostic Monitoring (DDM): Supports real-time monitoring of the module's performance and status.
• Compact Design: Mini GBIC form factor for space-saving installation.

Specifications

• Data Rate: 1.25 Gbps
• Wave Length: 1310 nm
• Max Cable Length: 20 km
• Fiber Type: 9/125 μm Single-Mode
• Port Type: LC Duplex
• Operating Temperature: 0–70 °C (32–158 °F)
• Storage Temperature: -40–85 °C (-40–185 °F)
• Operating Humidity: 10–90% RH, Non-Condensing
• Storage Humidity: 5–90% RH, Non-Condensing
• Power Supply: 3.3 V
• Safety & Emission: FCC, CE
