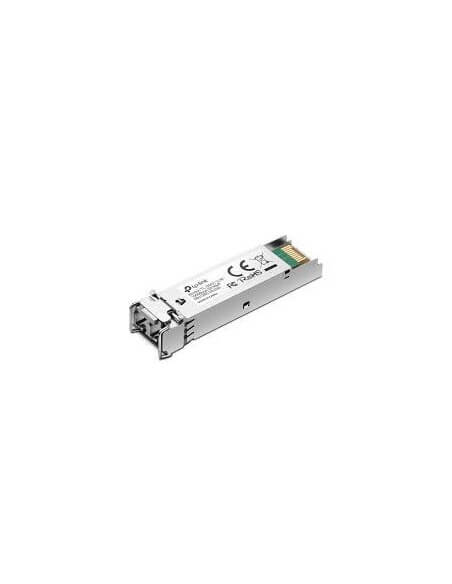

TP-Link Gigabit SFP Module - Multi-mode

The TP-Link Gigabit SFP Module (TL-SM311LM) is a versatile multi-mode mini GBIC module designed to enhance your networking capabilities. It is compatible with all SFP ports on TP-Link products, including JetStream switches and media converters like MC220L. With a robust range of up to 550m using 50/125 μm multi-mode fiber, and up to 275m with 62.5/125 μm multi-mode fiber, this module is perfect for connecting devices over short to medium distances with high-speed data transfer.

Features

• Compatibility: Works seamlessly with all SFP ports on TP-Link products, including JetStream switches and MC220L media converters.
• High Speed: Supports data transfer rates of up to 1.25 Gbps, ensuring fast and reliable connectivity.
• Extended Range: Capable of reaching up to 550m with 50/125 μm multi-mode fiber and 275m with 62.5/125 μm multi-mode fiber.
• Plug and Play: Easy installation with no configuration required, allowing for immediate use.

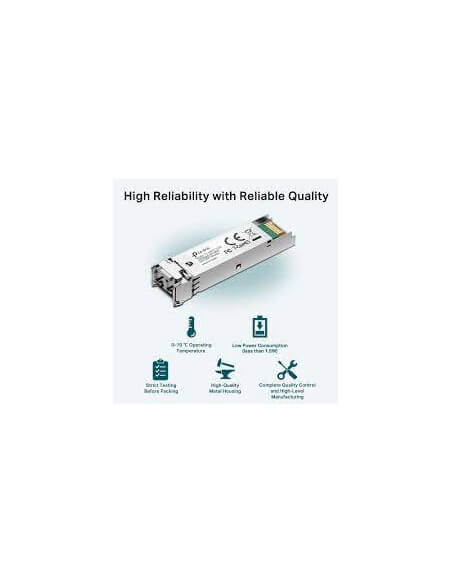

• Durable Design: Built to meet high-quality standards, ensuring long-lasting performance.

Specifications

• Data Rate: 1.25 Gbps
• Wave Length: 850 nm
• Max Cable Length: 550m (50/125 μm), 275m (62.5/125 μm)
• Port Type: LC/UPC
• Operating Temperature: 0℃~70℃
• Storage Temperature: -40℃~80℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• Dimensions: 55.4 mm x 13.7 mm x 12.9 mm
