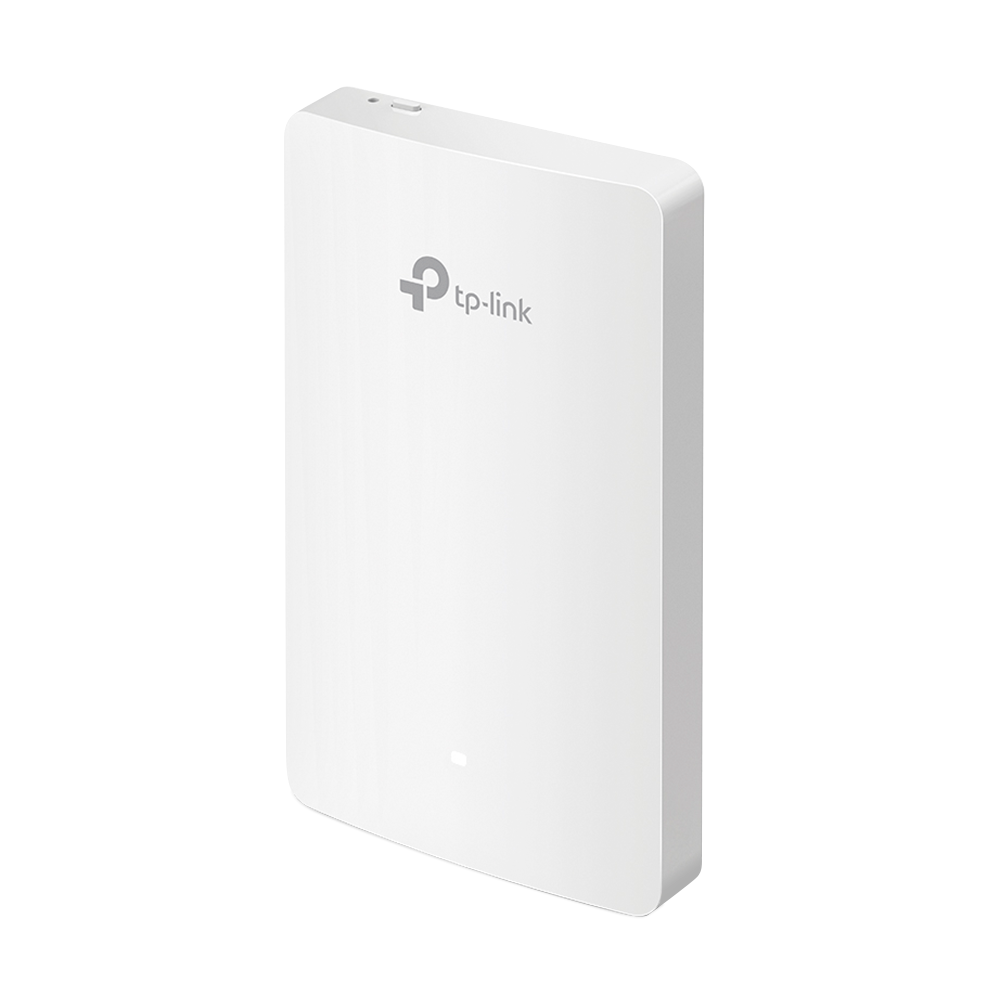

TP-Link AC1200 Wall Plate Access Point

The TP-Link AC1200 Wall Plate Access Point is designed for seamless integration into various environments such as hotels, hospitals, and offices. With its ultra-slim design and advanced MU-MIMO technology, it provides high-speed dual-band Wi-Fi connectivity of up to 1200 Mbps, ensuring a reliable and efficient network experience.

Features

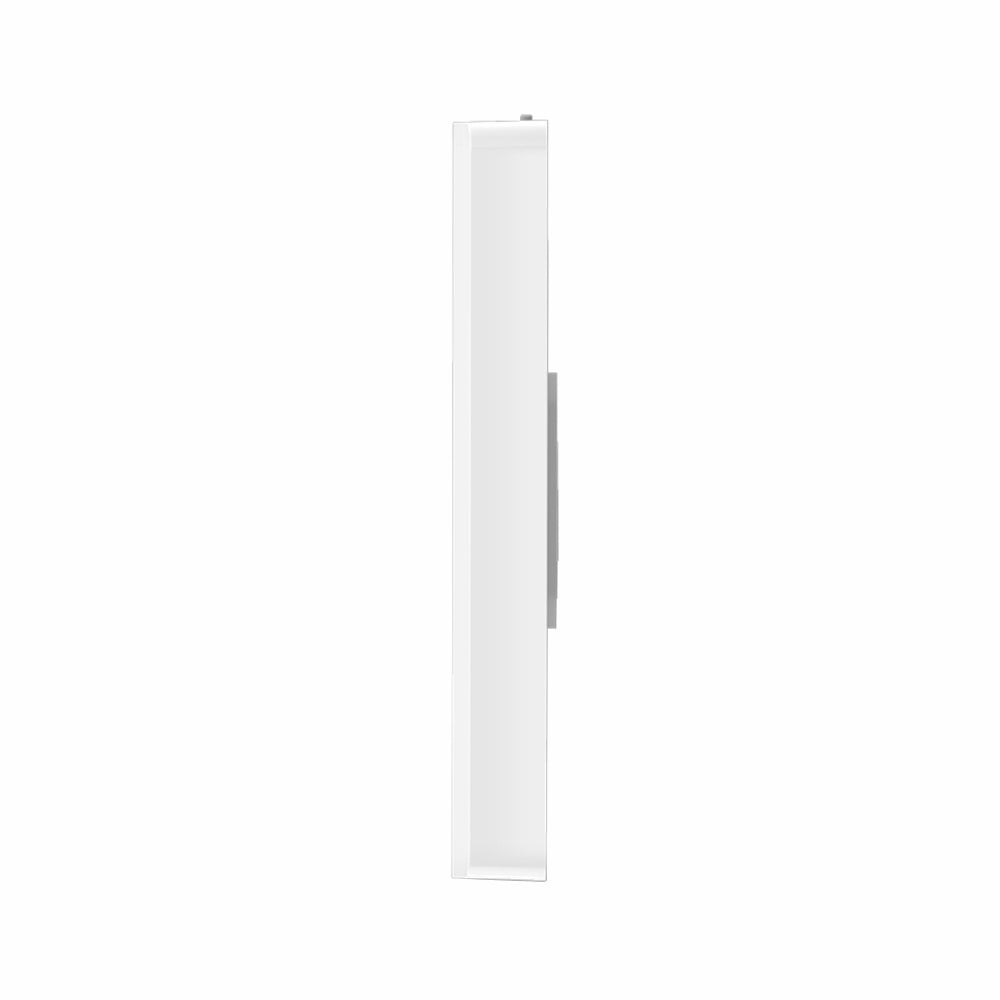

• Elegant Appearance: At only 15 mm thick, this wall plate access point blends seamlessly into any décor, making it ideal for hotel rooms, hospitals, and offices.
• Easy Installation: Compatible with standard US, EU, and 86mm wall junction boxes, the access point can be easily installed without the need for additional wiring, thanks to its PoE support.
• High Capacity: Supports dual-band Wi-Fi with speeds up to 1200 Mbps using 802.11ac Wave 2 technology and MU-MIMO, allowing multiple devices to connect simultaneously without compromising performance.

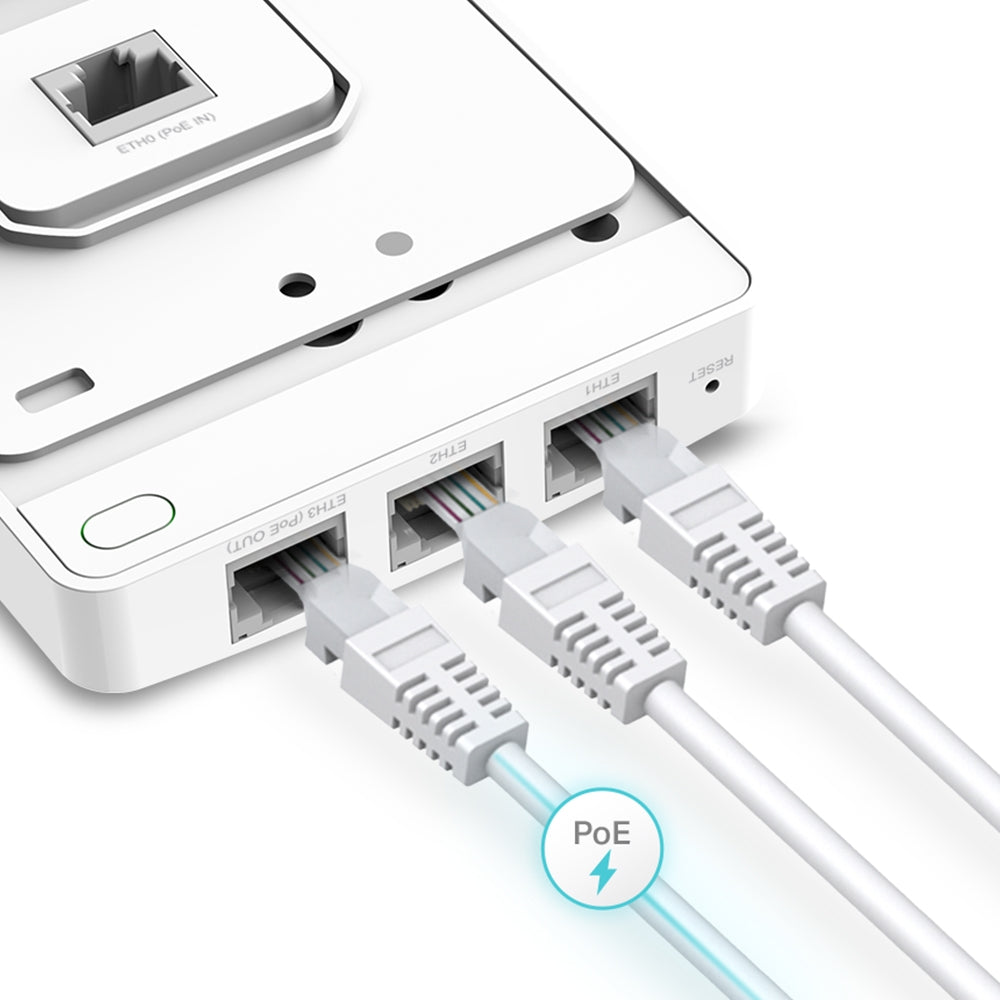

• Multiple Gigabit Ethernet Ports: Equipped with 4 Gigabit Ethernet ports (1 uplink and 3 downlink), including one port that supports PoE pass-through to power additional devices.
• Centralized Management: Supports Omada SDN for centralized cloud management and easy monitoring through the Omada app, allowing for remote management from anywhere.

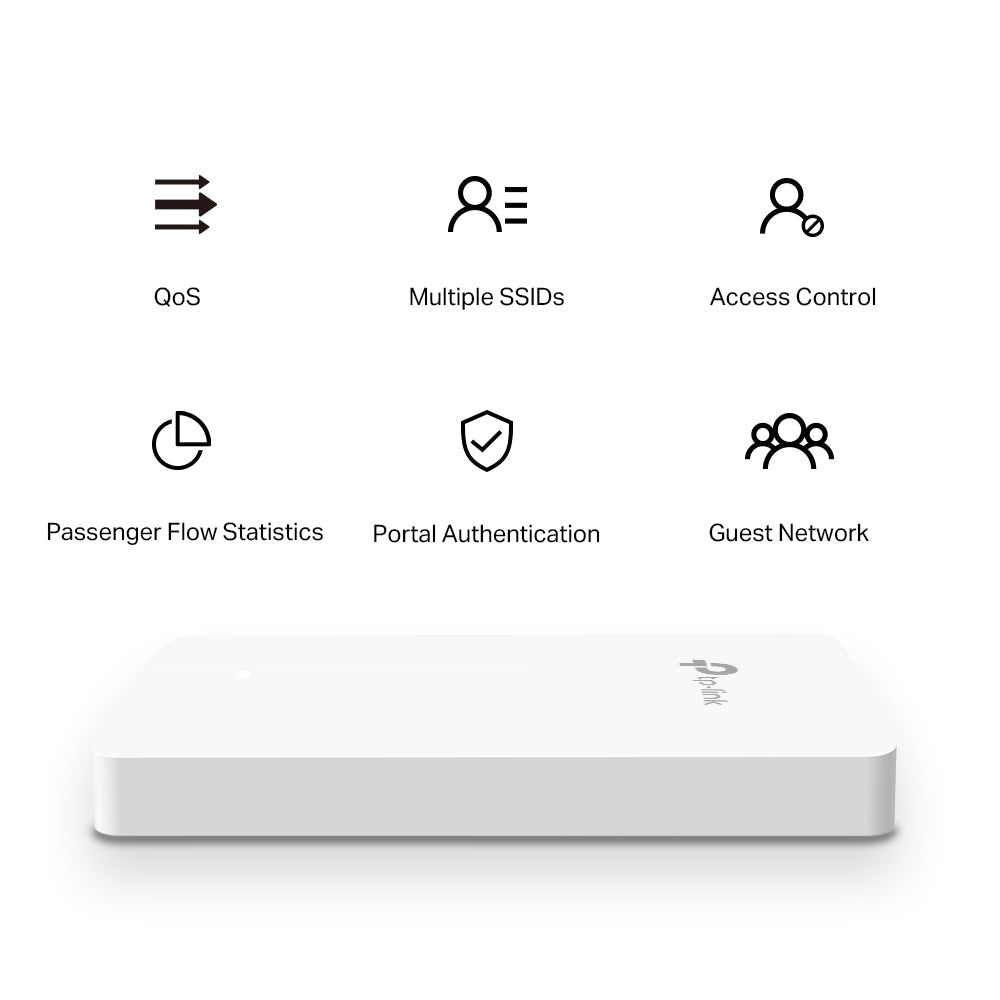

• Enterprise-Class Security: Features advanced wireless security protocols, including captive portal authentication, ensuring secure guest access and protection against network threats.

Specifications

• Wireless Standards: IEEE 802.11a/b/g/n/ac
• Signal Rate: 5 GHz up to 867 Mbps, 2.4 GHz up to 300 Mbps

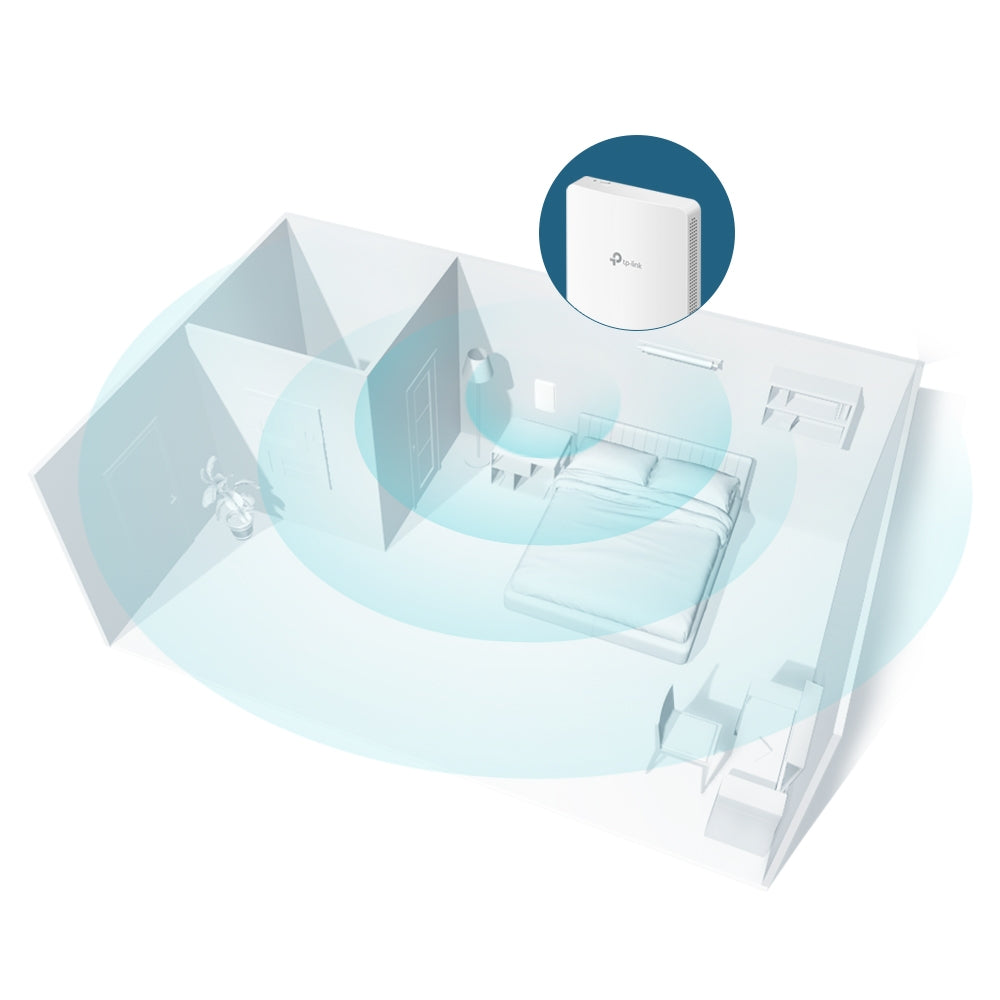

• Coverage: Up to 25㎡ (300 ft²)
• Wireless Client Capacity: 200+ concurrent clients
• Power Supply: 802.3af/802.3at PoE
• Power Consumption: 9.8 watts; 24.4 watts with 13w PoE output
• Dimensions: 143 x 86 x 20 mm (5.6 x 3.4 x 0.8 in)
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
