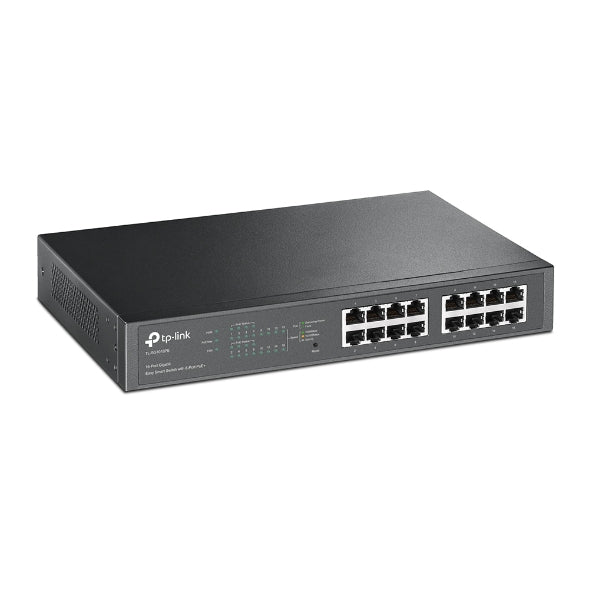

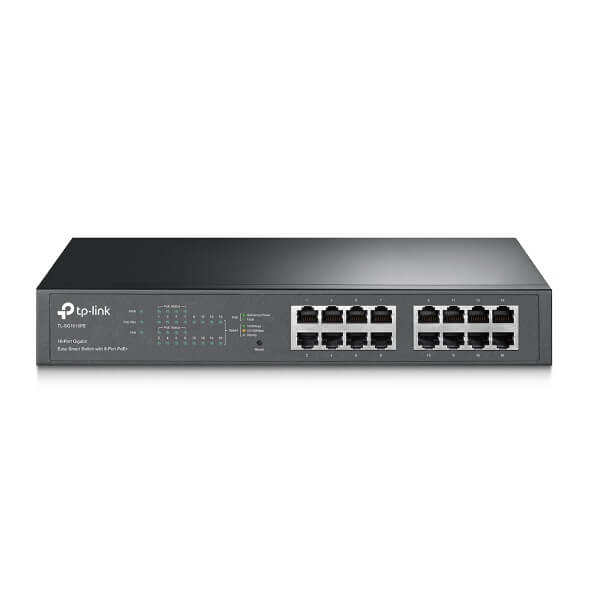

The TP-Link TL-SG1016PE is a 16-Port Gigabit Easy Smart PoE Switch designed for seamless network expansion and management. With 8 PoE+ ports, it allows for both data and power transmission over a single cable, making it ideal for connecting devices like IP cameras, access points, and IP phones without additional power cabling. Its user-friendly web interface simplifies configuration and monitoring, ensuring efficient network management.

Features

• 16 Gigabit Ports: Equipped with 16 10/100/1000 Mbps RJ45 ports for high-speed connectivity.
• 8 PoE+ Ports: Supports Power over Ethernet Plus (802.3at/af) on 8 ports, providing up to 30W per port.
• 150W Total PoE Power Budget: Allows for powering multiple devices without additional power sources.
• Easy Smart Management: Simple setup with a web-based management interface for easy configuration.
• VLAN Support: Offers advanced VLAN features for improved network security and traffic segmentation.
• QoS Support: Quality of Service features prioritize traffic for voice and video applications.
• Plug and Play: No configuration required; just connect and use.
• Overload Protection: Automatically prioritizes power to prevent system overloads.

Specifications

• Switching Capacity: 32 Gbps
• Packet Forwarding Rate: 23.8 Mbps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 10 KB
• Dimensions (W x D x H): 294 x 180 x 44 mm
• Max Power Consumption: 177.7 W (with 150 W PD connected)
• Operating Temperature: 0–50°C (32–122°F)
• Storage Temperature: -40–70°C (-40–158°F)
• Operating Humidity: 10–90% non-condensing
• Storage Humidity: 5–90% non-condensing
