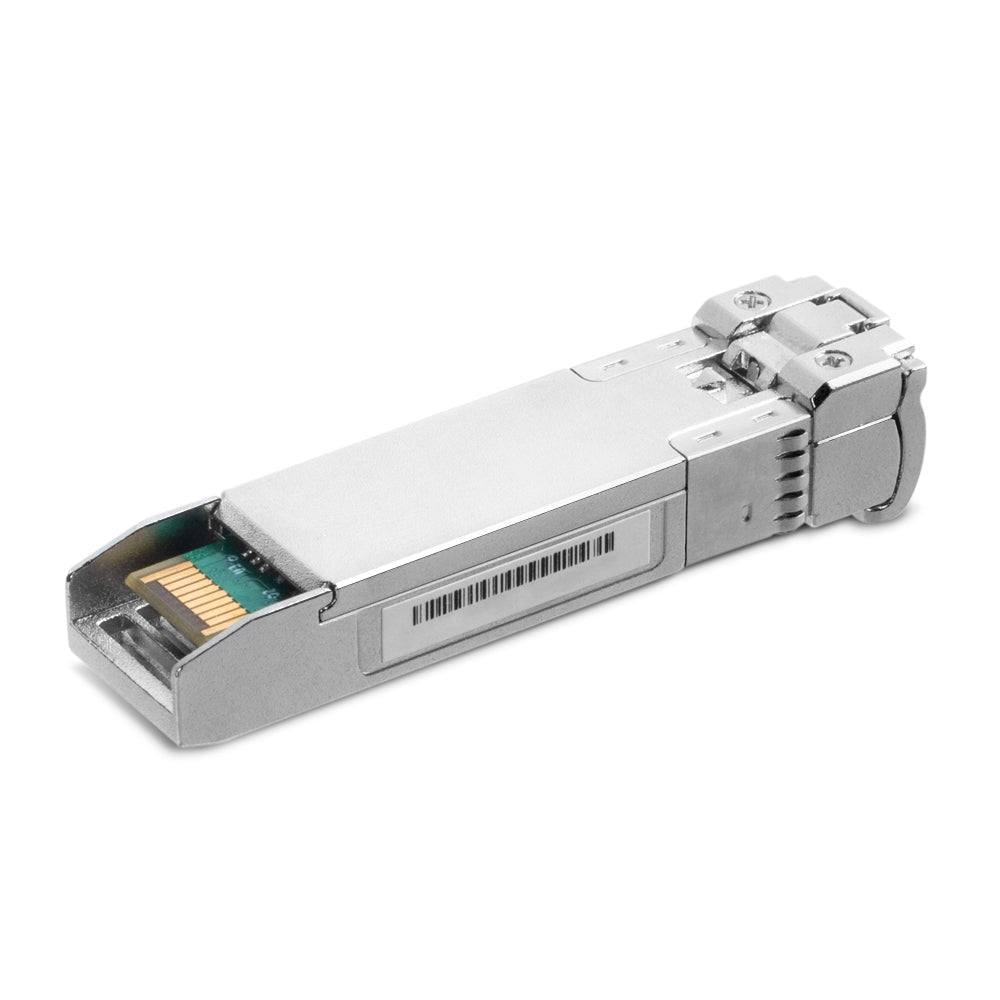

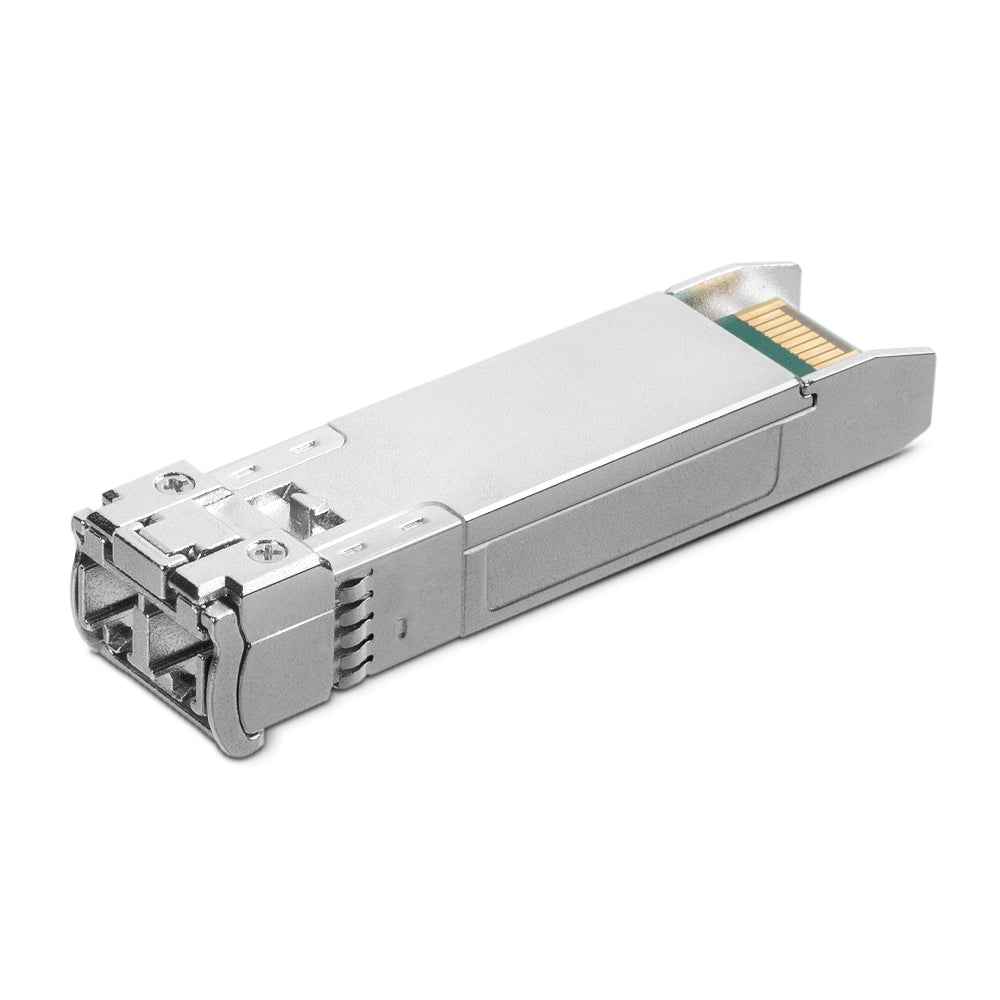

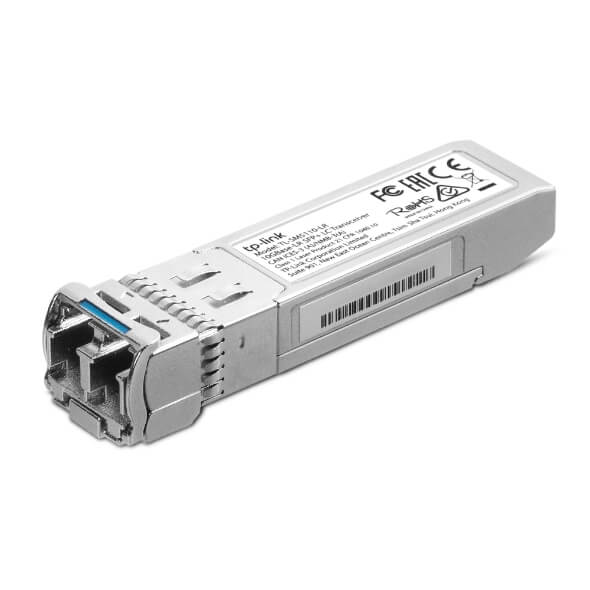

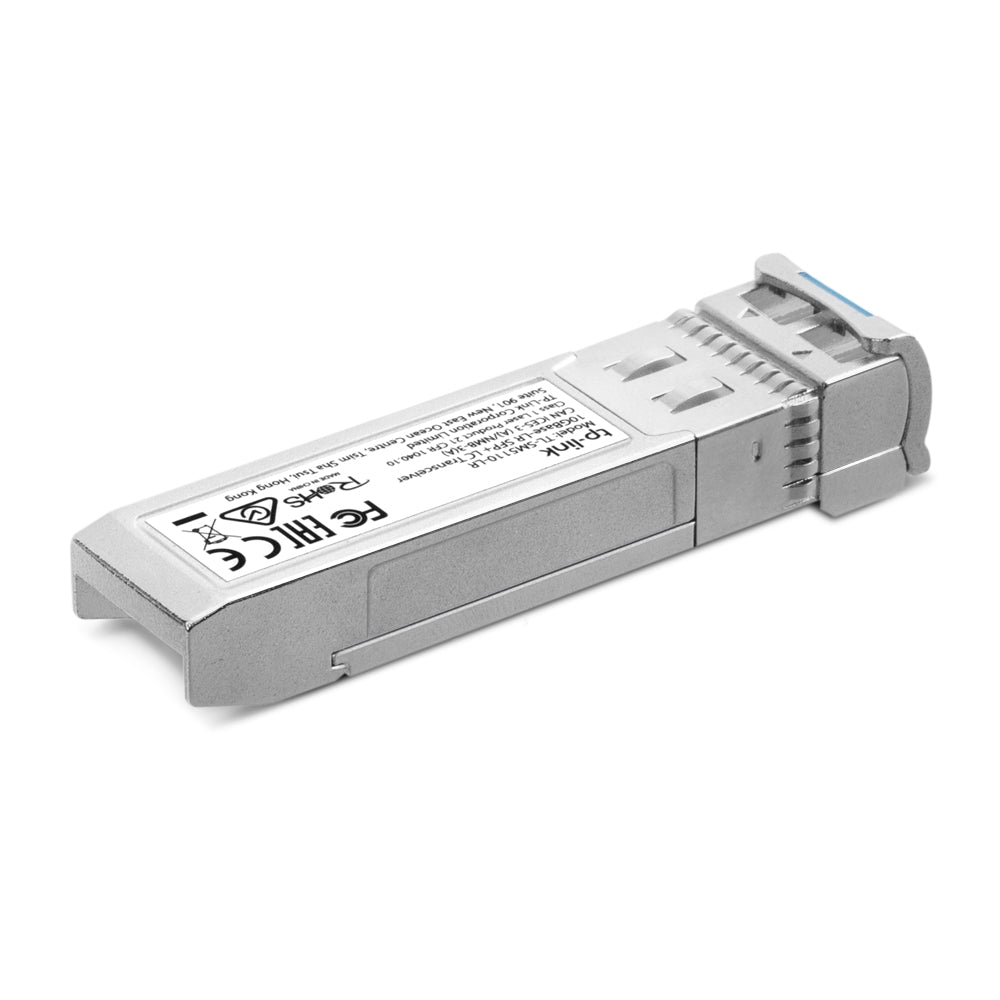

TP-Link 10Gbase-LR SFP+ Transceiver - Single Mode

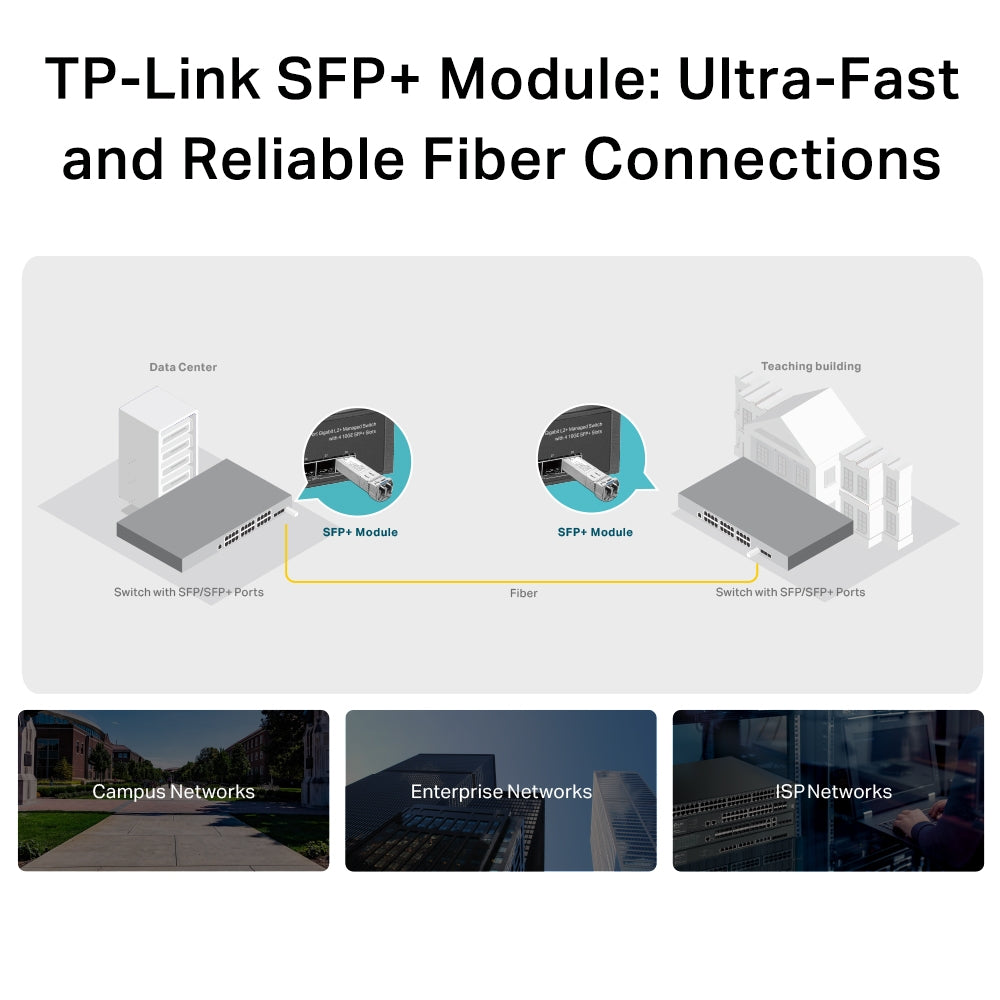

The TP-Link 10Gbase-LR SFP+ Transceiver is a high-performance 1310 nm single-mode module designed to extend transfer distances in 10Gbps Ethernet networks. It supports full duplex connections with a maximum cable length of 10 km, making it ideal for long-distance data transmission in enterprise networking environments.

Features

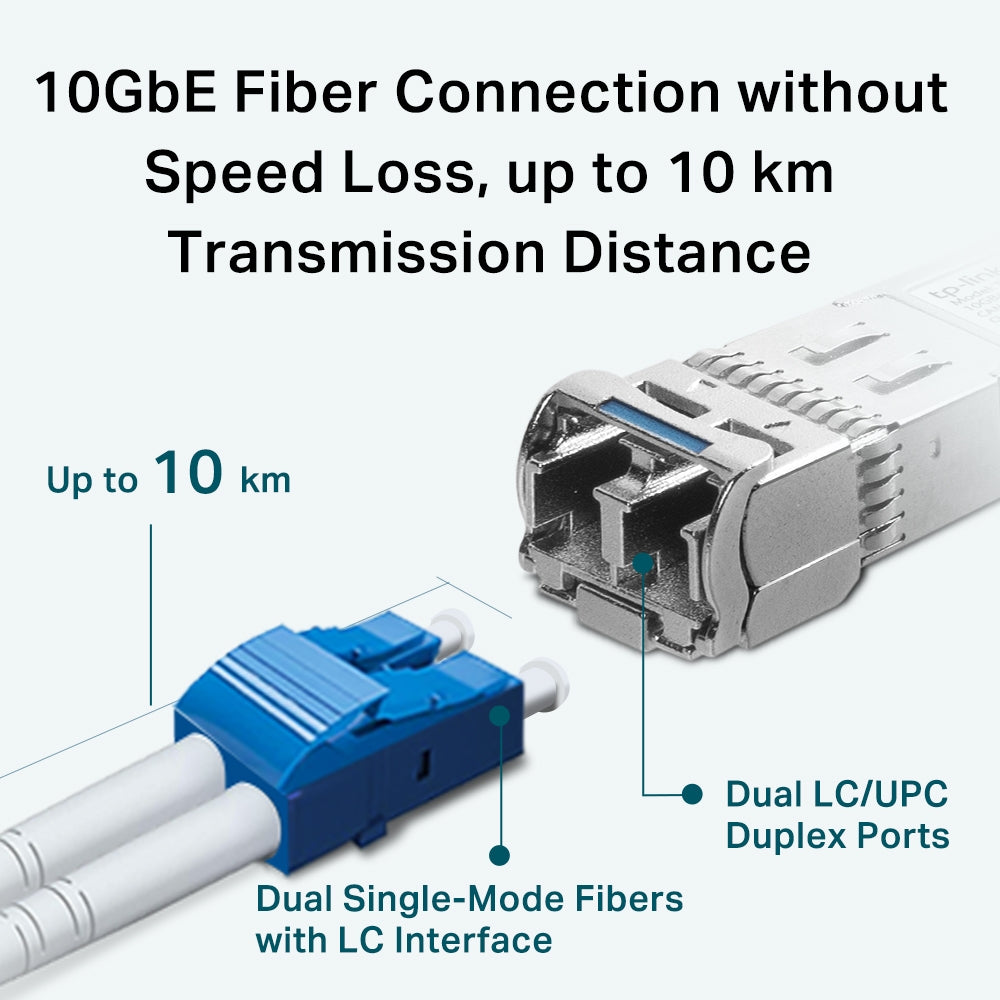

• High Performance: Supports 10G Ethernet connections up to 10 km using 9/125µm single-mode fiber cables.
• Hot-Pluggable: Allows for easy installation and replacement without powering down the system.
• Digital Diagnostic Monitoring (DDM): Provides real-time monitoring of the transceiver's performance.

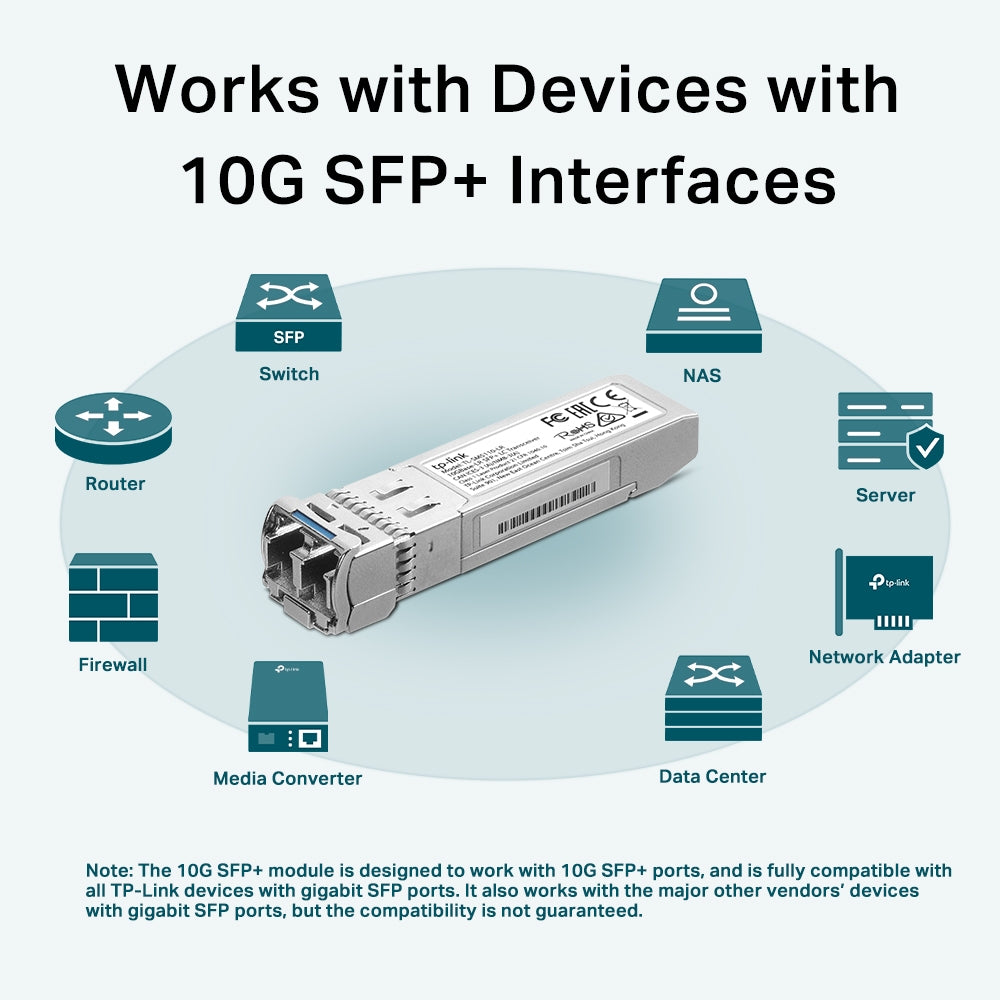

• Compatibility: Works with standard 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA) devices.

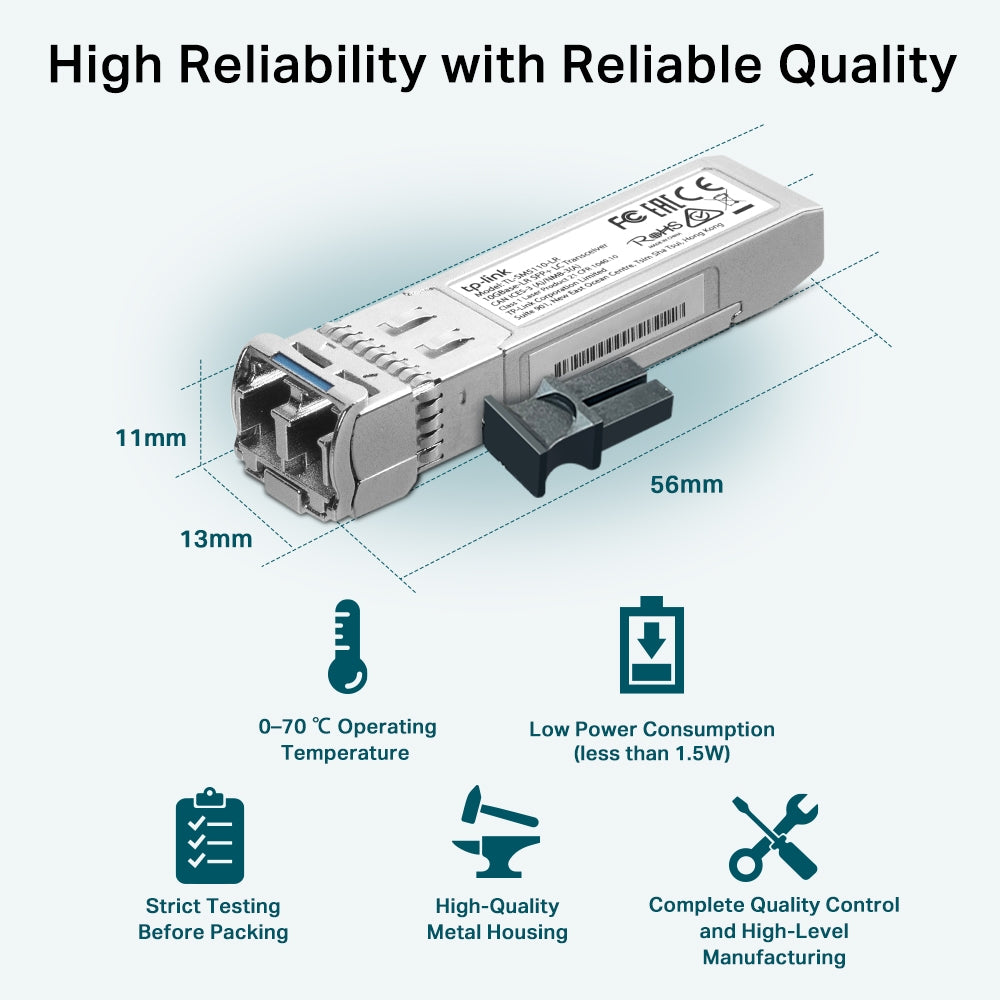

• Robust Design: Built to operate in a wide range of temperatures and environmental conditions.

Specifications

• Standards and Protocols: IEEE 802.3ae, TCP/IP
• Wavelength: 1310 nm
• Power Supply: 3.3V
• Fiber Type: 9/125um Single-Mode
• Maximum Cable Length: 10 km
• Data Rate: 10 Gbps
• Port Type: LC Duplex
• Safety & Emission: FCC, CE
• Operating Temperature: 0–70 °C (32–158 °F)
• Storage Temperature: -40–85 °C (-40–185 °F)
• Operating Humidity: 10–90% RH, Non-Condensing
• Storage Humidity: 5–90% RH, Non-Condensing
