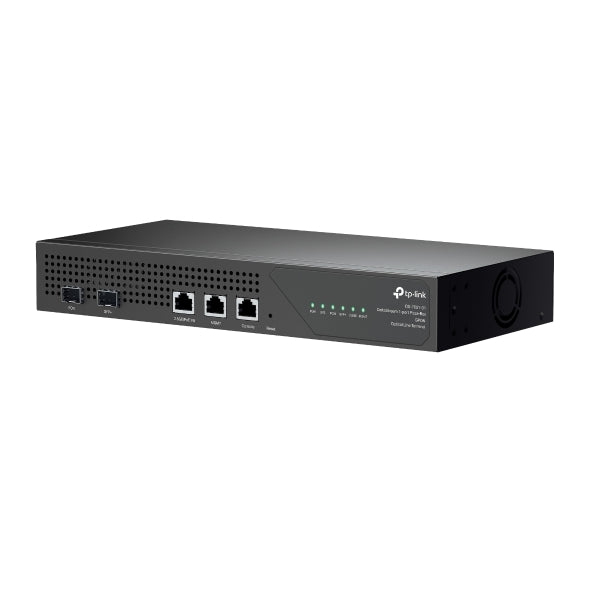

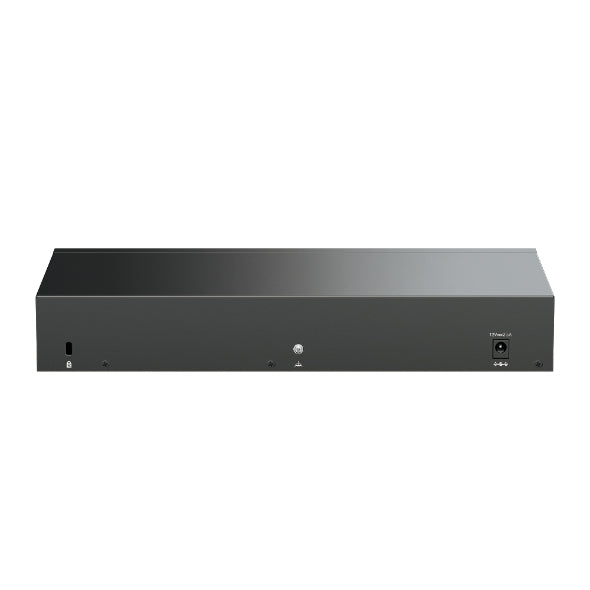

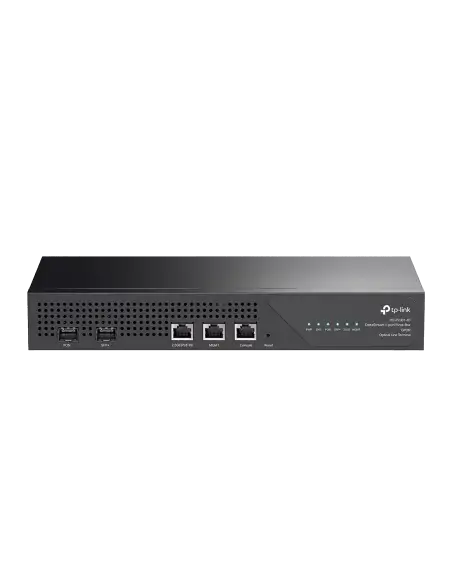

TP-Link 1-Port GPON OLT

The TP-Link 1-Port GPON OLT is a compact and high-performance Optical Line Terminal designed for small operators, businesses, and home offices. Ideal for delivering gigabit internet services, it supports up to 128 ONTs with exceptional reliability and management capabilities.

Features

• High-Speed Uplink Ports: Features 1× 10G SFP+ port and 1× 2.5 GbE uplink port for optimal bandwidth.
• Scalable Architecture: Supports 1:128 splitting ratio, allowing connection of up to 128 ONTs.
• Flexible Power Options: Compatible with both DC and 802.3at PoE power supplies.
• Advanced Management: Centralized management through DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI.
• Robust Security: Offers features like ACL, DHCP filtering, and rogue ONU detection for enhanced security.

Specifications

• Dimensions: 294 × 140 × 44 mm
• Power Consumption: Max. 17W
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -40°C to 70°C
• Transmission Distance: Up to 60 km
• Data Rate: Downstream 2.5 Gbps, Upstream 1.25 Gbps
• Wavelength: Tx 1490 nm, Rx 1310 nm
• Certification: CE, FCC
