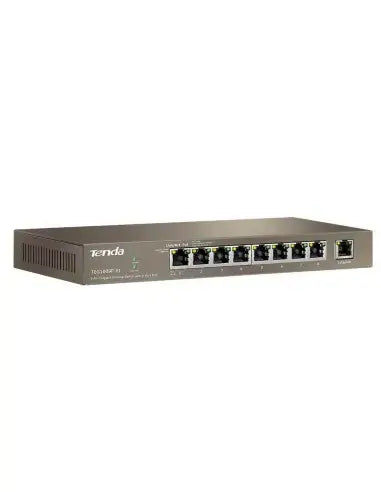

The Tenda TEG1009P-EI is a high-performance 9-Port Gigabit PoE desktop switch designed for building robust Gigabit WLAN and HD camera monitoring networks. With a maximum PoE power output of 99W, it supports seamless power and data transmission over conventional CAT5 twisted pair cables, making it ideal for powering APs, IP cameras, and VoIP phones.

Features

• 8 PoE Ports: Supports IEEE802.3af (15.4W) and IEEE802.3at (30W) standards, allowing for flexible deployment of devices like access points and IP cameras.
• Lightning Protection: Professional lightning protection circuit for uplink port, safeguarding against power spikes and induction currents.
• High-Speed Performance: Full duplex bandwidth capability of 2000Mbps ensures rapid data processing and transmission.
• Plug and Play: Easy installation with no configuration required, suitable for various environments including SMBs, hotels, and schools.
• Compact Design: Metal frame allows for both desktop and wall-mount options, enhancing versatility in installation.

Specifications

• Number of Ports: 9 (8 PoE + 1 Uplink)
• PoE Power Budget: 99W total
• Switching Capacity: 18Gbps
• Forwarding Rate: 13.4Mpps
• MAC Address Table: 4K entries
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Power Supply: AC 100-240V, DC 51V/2.1A
• Dimensions: 235mm x 103mm x 27mm
