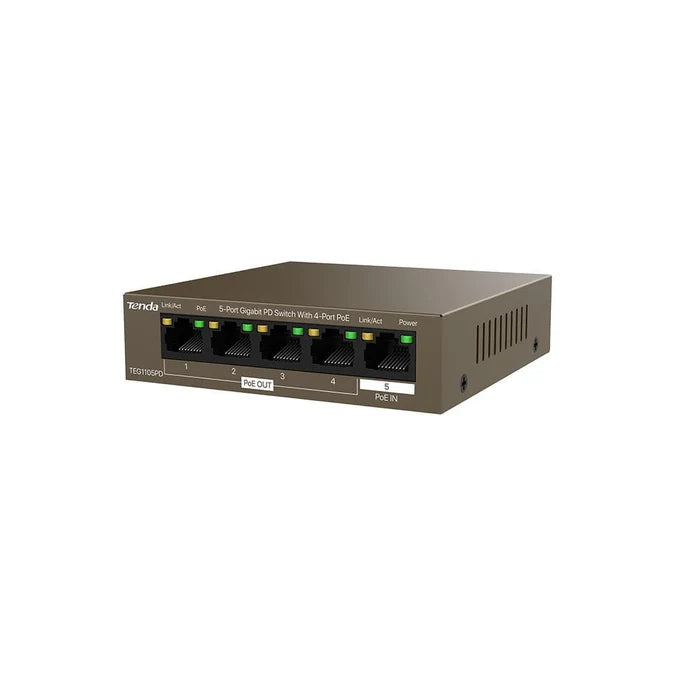

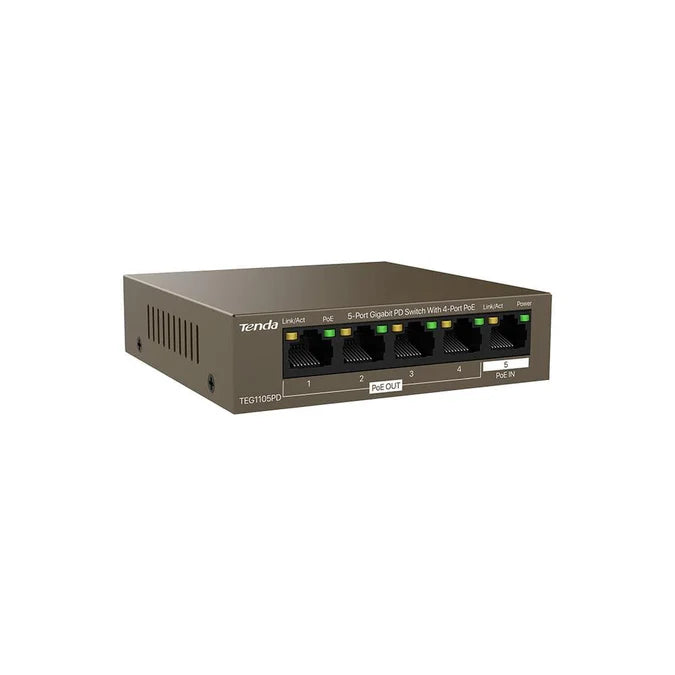

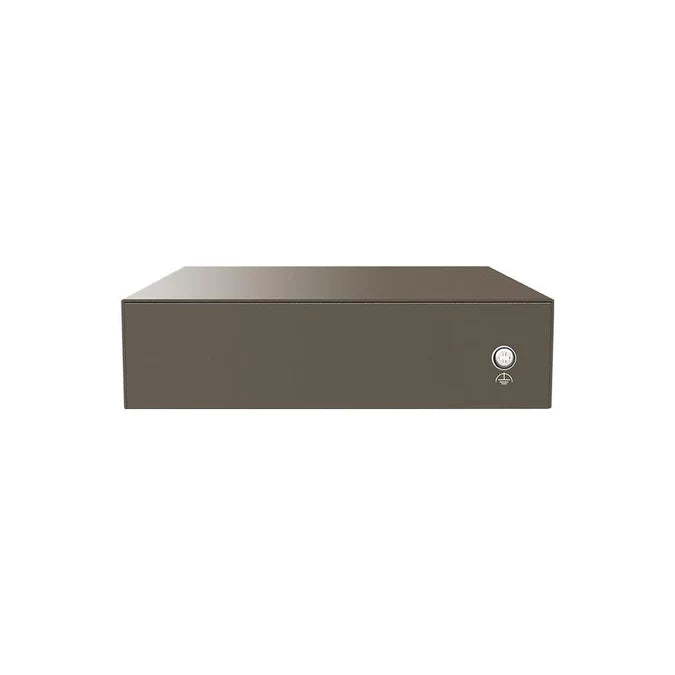

Tenda 5-Port Gigabit Desktop Switch

The Tenda 5-Port Gigabit Desktop Switch (TEG1105PD) is an efficient and cost-effective networking solution designed for surveillance and networking applications. With its plug-and-play functionality, it provides seamless connectivity and power to low-power devices, making it ideal for medium to large factories, parks, and college environments.

Features

• Integrated PSE & PD: Supports power supply to low-power devices compliant with IEEE 802.3af.
• Gigabit Speed: Offers five 10/100/1000 Mbps auto-negotiation ports for high-speed data transmission.
• Long-Distance PoE Relay: Extends the data transmission distance up to 325 meters.
• Lightning Protection: Equipped with 6KV lightning protection for stable operation in thunderstorms.
• Compact Design: Small and delicate, suitable for installation in outdoor waterproof boxes.
• Plug and Play: Easy installation without the need for a power adapter.
• Store-and-Forward Mode: Ensures efficient data handling with a 2K MAC address table and support for 9K jumbo frames.

Specifications

• Ports: 5 x 10/100/1000 Mbps RJ45 ports (4 PoE OUT, 1 PoE IN)
• Maximum PoE Output Power: 22W
• PoE Standards: IEEE 802.3af/at
• Forwarding Mode: Store-and-forward
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% (non-condensing)
• Dimensions: 100 mm x 100 mm x 26 mm
• Weight: Approx. 0.5 kg
