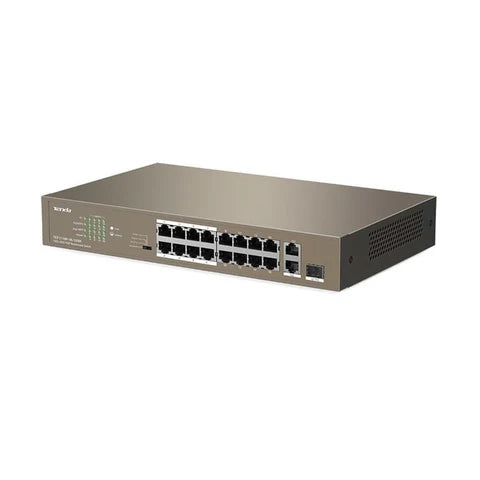

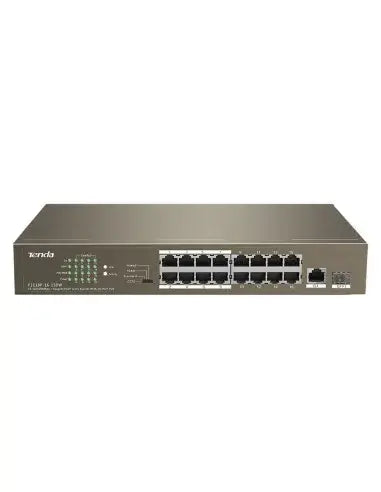

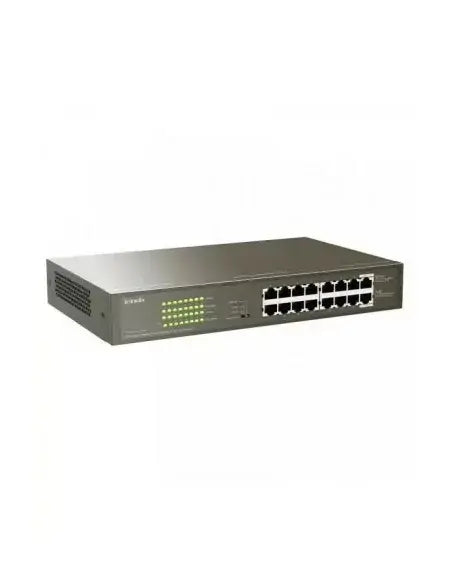

Tenda 16-Port Fast Ethernet Switch with 16-Port PoE

The Tenda 16-Port Fast Ethernet Switch with 16-Port PoE is an unmanaged switch designed for efficient networking in surveillance and small to medium business environments. It provides a maximum PoE output of 135W, supporting various devices such as access points, IP cameras, and VoIP phones, making it a versatile choice for enhancing connectivity.

Features

• Power over Ethernet (PoE): Supplies power and data to connected devices through a single cable, simplifying installation and reducing cabling costs.
• Multiple Operation Modes: Offers four modes including Standard Mode, Port-based Priority Mode, Port-Based VLAN Mode, and Extend Mode, catering to various networking needs.
• High PoE Budget: Supports a maximum power output of 135W, allowing for the connection of multiple PoE devices simultaneously.
• Robust Lightning Protection: Features 6kV lightning protection for both data and power ports, ensuring reliability and safety.
• Flexible Mounting Options: Can be mounted on desktops, walls, or racks, providing versatility in different installation environments.

Specifications

• Ports: 16 * 10/100 Base-TX Ethernet ports (Data/Power), 2 * 10/100/1000 Base-T Ethernet ports (Data), 1 * 1000 Base-X SFP port (Combo)
• Switch Capacity: 7.2 Gbps
• Forwarding Rate: 5.36 Mpps
• MAC Address Table: 4K
• PoE Budget: Single port: AF: 15.4W, AT: 30W; Whole device: 135W
• Operating Temperature: 0℃ to 45℃
• Storage Temperature: -40℃ to 70℃
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
